HARDINGE Second Operation 5C Collets, Step Chucks Tooling Work Holding Techniques Manual

Id: 1128


100 in stock


Number of Pages: 37

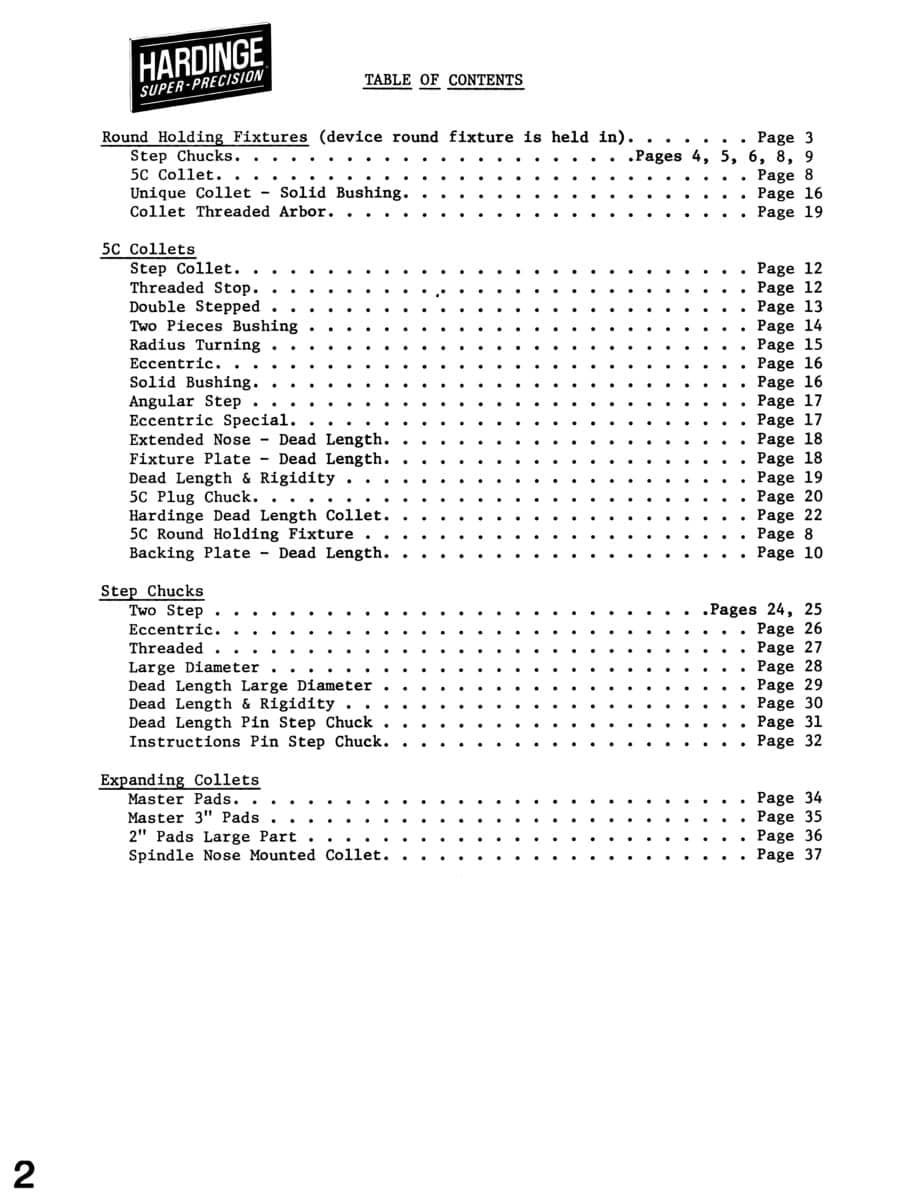

This is a reproduction, not a photocopy, of an original Hardinge Second Operation Work Holding Techniques manual.  The purpose of this manual is to familiarize you with many different workholding techniques for Hardinge 5C Spindle Tooling.

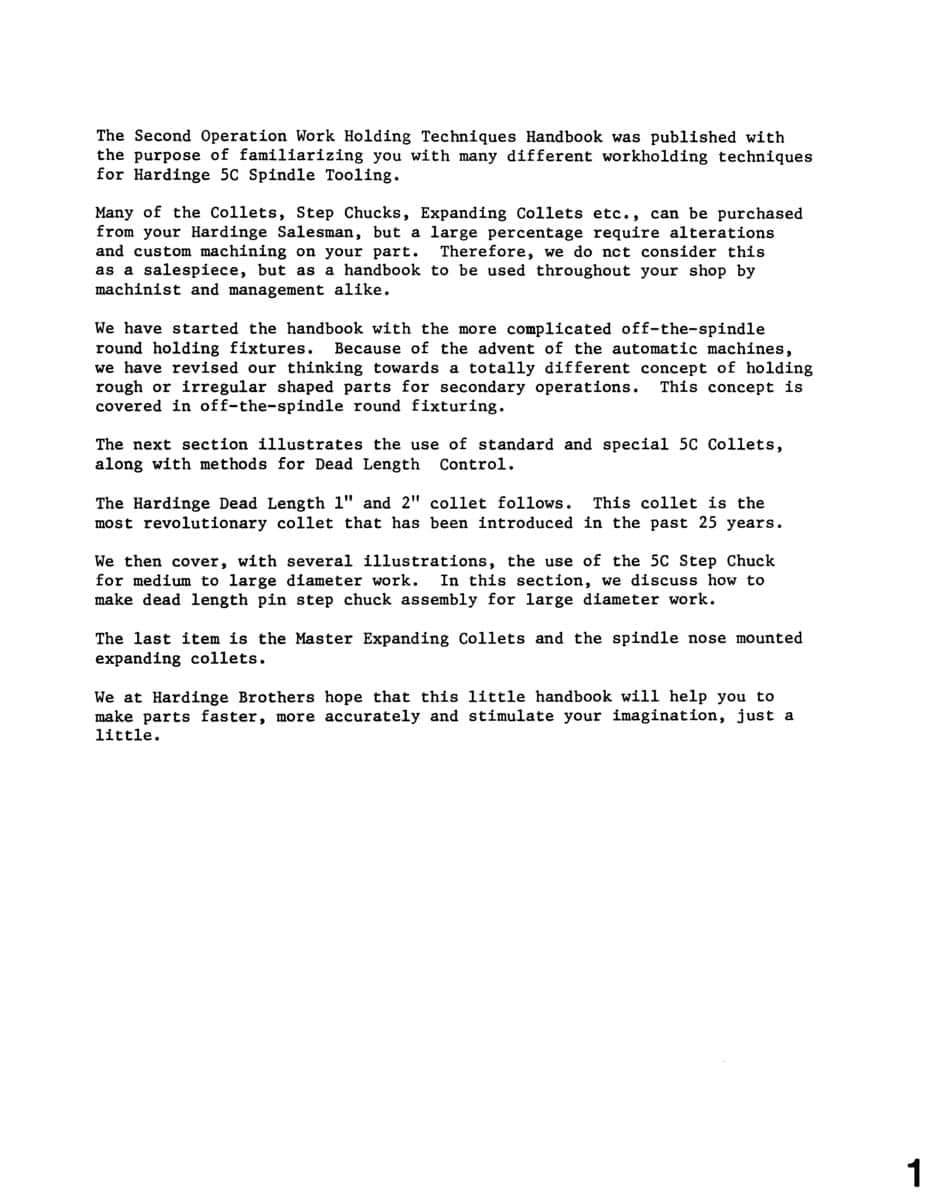

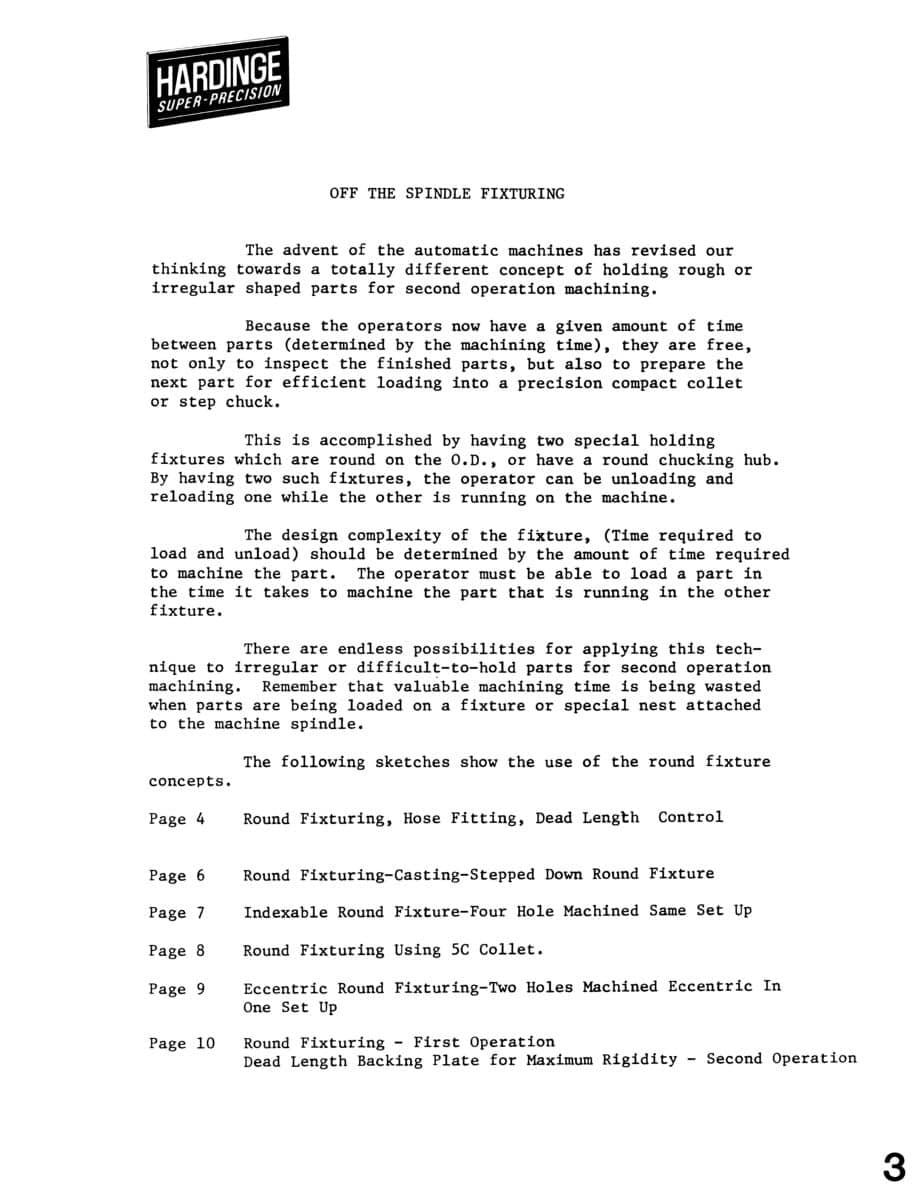

The first section is on more complicated off-the-spindle round holding fixtures, and covers concepts on holding rough or irregular shaped parts for secondary operations.


The next section illustrates the use of standard and special 5C collets, along with methods for Dead Length Control.

Then it covers the use of the 5C Step Chuck for medium to large diameter work. How to make dead length pin step chuck assembly for large diameter work.


The last section covers the Master Expanding Collets and the spindle nose mounted expanding collets.
