Number of Pages: 19

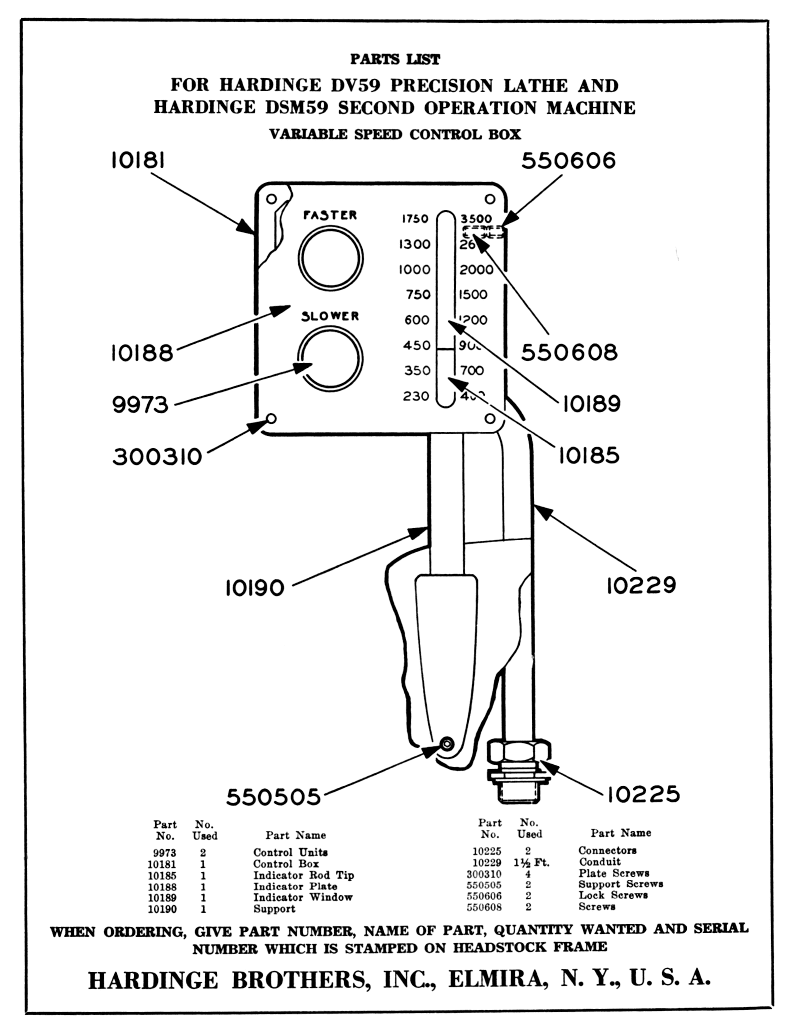

This is a reproduction, not a photocopy, of an original Hardinge DV59 metal lathes Parts Manual. This manual contains a complete set of cross-sectional view part diagrams with descriptions for this Hardinge metal lathe. This manual includes diagrams of the headstock, tailstock, compound slide (including models DS, DR, DSA, and DSR), the variable and 8-speed drive systems, the end working slide, and the radius attachment.
I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear.
