Description
Number of Pages: 55

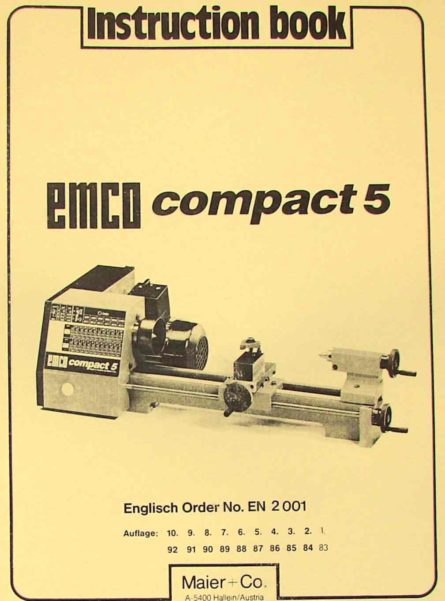

This is a reproduction, not a photocopy, of a Emco Compact 5 Instruction Manual . This 55 page manual covers everything dealing with the operation of this lathe that you can imagine. Plus, how to install and adjust all of the attachments made for this lathe, including a section on how to use the milling attachment. There is also information on wiring schematics as well.
|
The manual above may help you operate and maintain your metal lathe. If you would like to learn more about metal lathework techniques, the names and proper uses of different lathe tools, and other lathe operations, I would recommend clicking on the pictures of these two books here. We also have a complete series of different machinist books on sharpening, gearmaking, milling machines, and more here: Workshop Machinist Series |
|
|
|---|
Contents:
Accident Prevention.............................3 Technical Data..................................4 Basic Equipment, Care of machine................5 Accessories lathe (summary).....................6 Basic terms about Turning.....................7/8 Turning tools................................9/l0 Setting up the machine, electrical Connect.....11 Main Components.............................12-16 Splashguard....................................16 Turning between centers........................17 Clamping devices for Workpieces................18 3-jaw chuck.................................19-22 Clamping plate.................................22 Independent chuck..............................23 Collet chuck attachment........................24 2-way toolholder, Quick-change toolholder......25 Travelling steady, Steady rest..............26/28 Automatic feed mechanism.......................28 Mounting the gears..........................29/30 Thread pitches, gear combinations...........30/31 Adjustments....................................32 Lubrication....................................33 Troubleshooting chart..........................34 Drilling and Milling........................35-54 Wiring diagram.................................55
Overview:
I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear. This manual is clearer and easier to read than a pdf download.
