Description
Number of Pages:16
This is a reproduction, not a photocopy, of an original Clausing Atlas 100 series 12″ Metal Lathe Operator’s and Parts Manual. This manual covers both standard gear lathes and quick change gear lathes. It contains information on operating instructions, lubrication, and cross sectional diagrams of all the parts.
Please note: This manual cover the older 100 series lathes and not the later 4800 series lathes.
The two lathes were very similar, but there is a significant difference in the apron design.
 |
 |

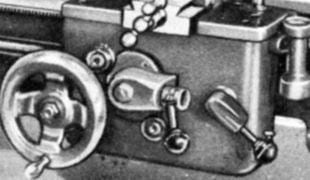

| Later 4800 Series Apron |
Earlier 100 Series Lathe Quick Change Apron The Standard Apron is similar with the star knob, but with no oilier. |
We have the manual for the 4800 Series in our store.
|
The manual above may help you operate and maintain your metal lathe. If you would like to learn more about metal lathework techniques, the names and proper uses of different lathe tools, and other lathe operations, I would recommend clicking on the pictures of these two books here. We also have a complete series of different machinist books on sharpening, gearmaking, milling machines, and more here: Workshop Machinist Series |
|
|
|---|
