Description
Number of Pages: 136

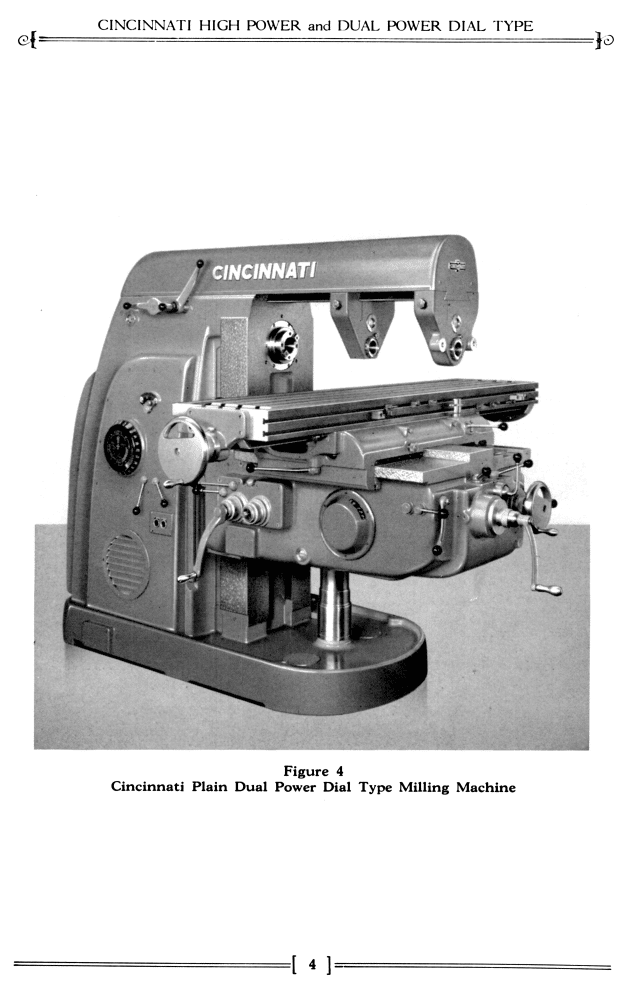

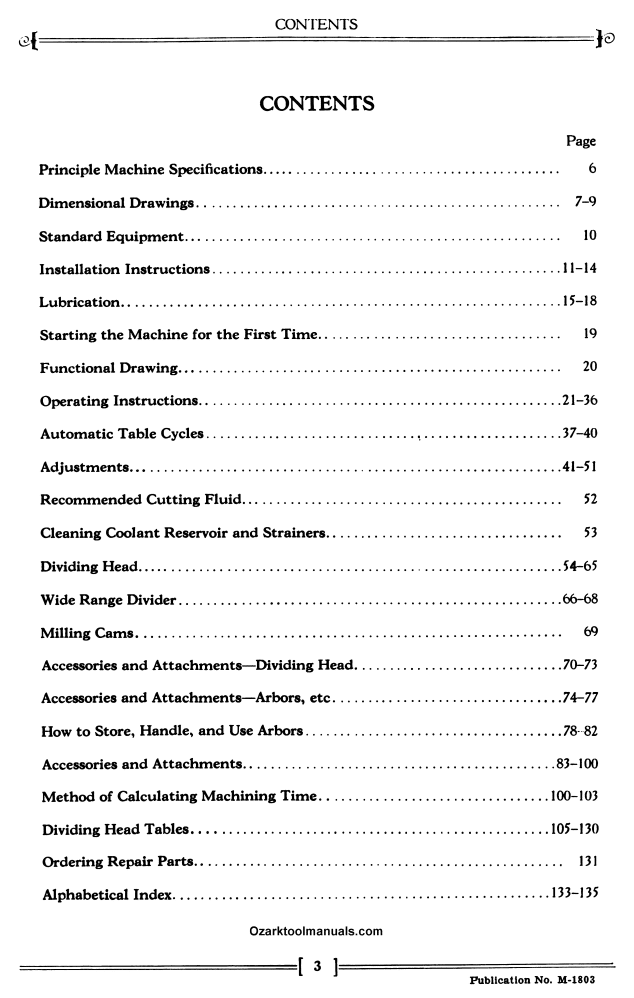

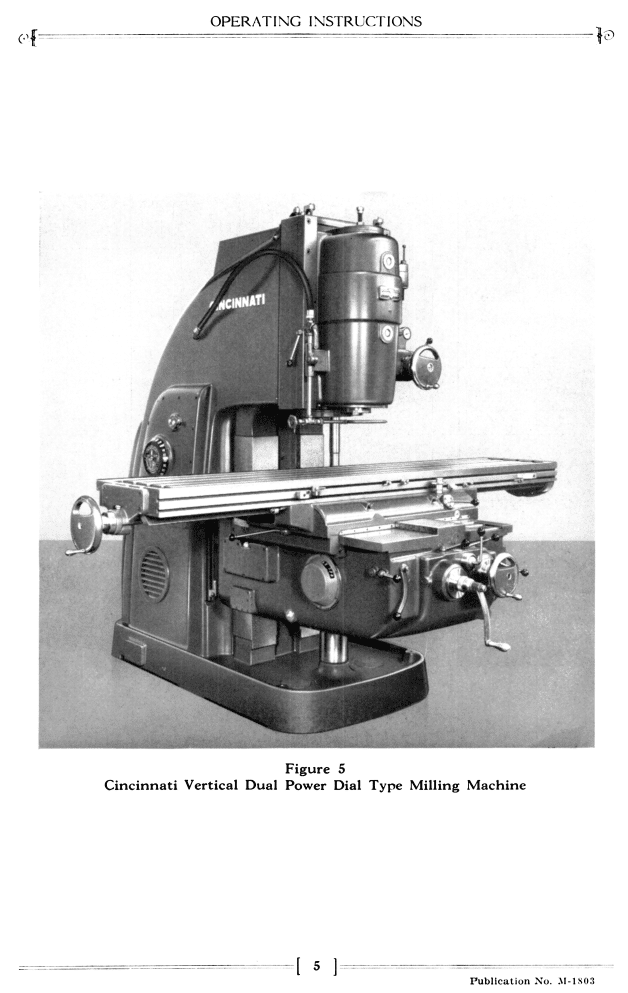

This is a reproduction, not a photocopy, of an original 1951 Cincinnati Nos. 3, 4, 5, 6 High Power & Dual Power Horizontal Vertical Milling Machines Owner Operator’s Instructions Manual. This manual contains milling machine specifications, operating instructions, adjustments, and maintenance for these Cincinnati Milling Machines. The manual covers how to properly lubricate these mills, and how to set up the automatic table cycles. It shows and describes how to adjust about everything on these milling machines including the main drive clutch, spindle bearings, and main screw bearings. It also covers a lot of the attachments that were available for these mills. It shows how to set them up and use them. Please see the pictures above for the index of contents, and pictures of the type of mills covered in this manual.
We have the service and parts manual for these mills, which explains how to take everything apart on these mills with parts diagrams here:
Overview
I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear; they are then comb bound with heavy cover pages so they lie flat on the workbench. Better than a pdf download.
