Description
Number of Pages: 129

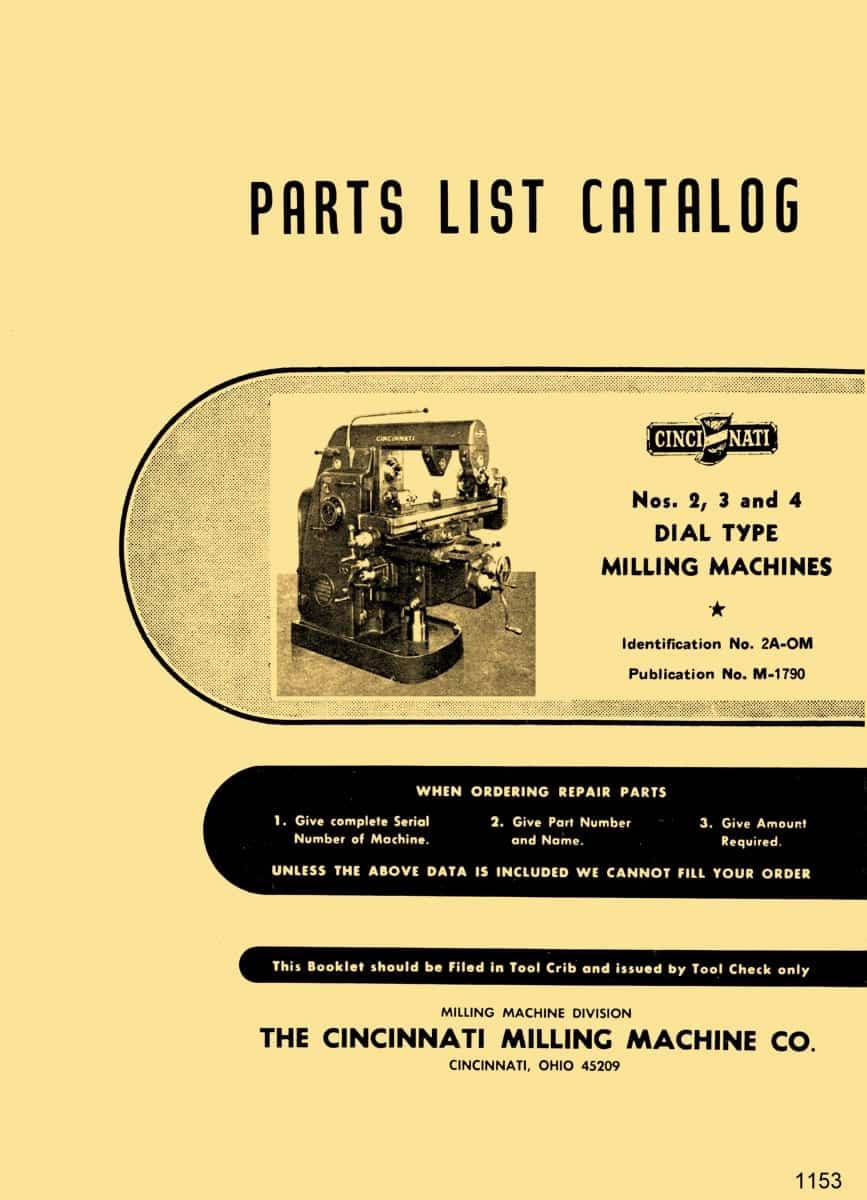

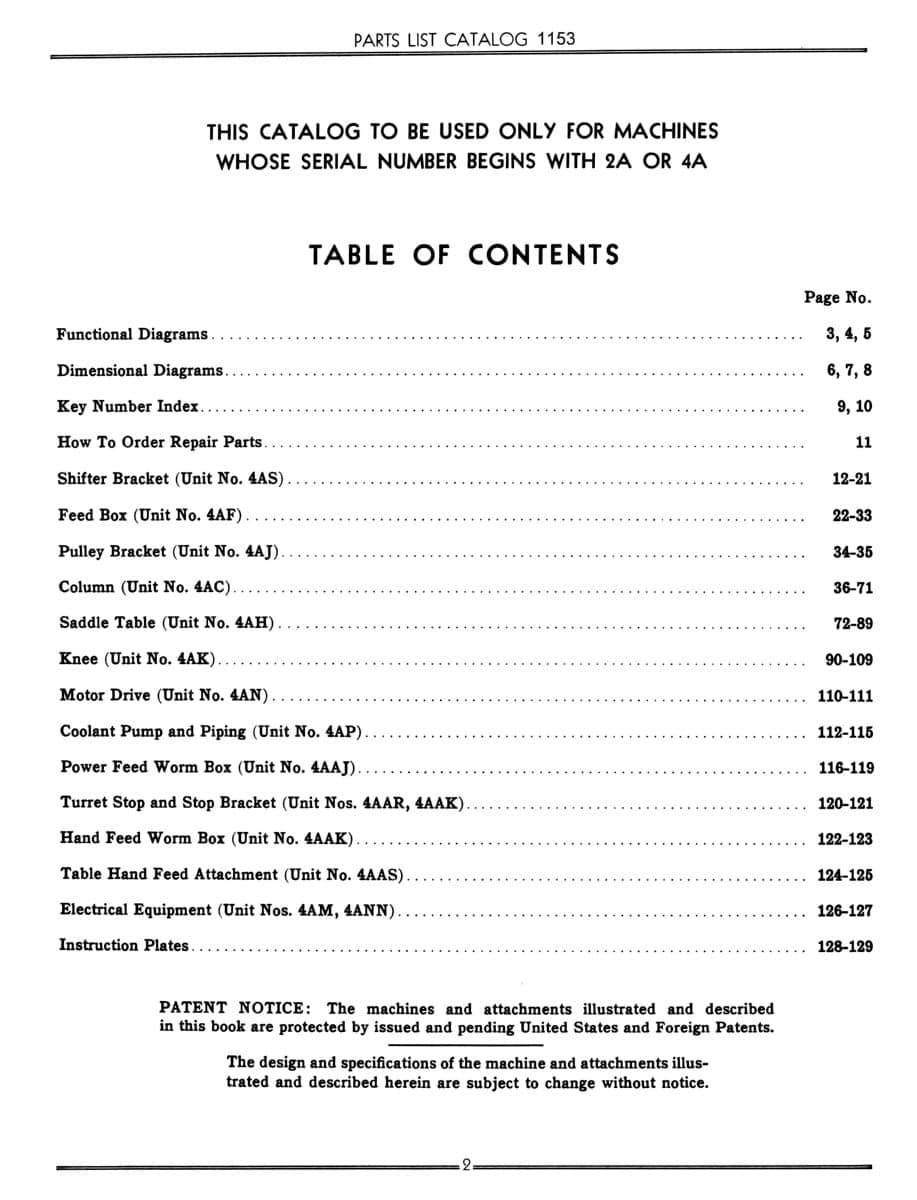

This is a reproduction, not a photocopy, of an original Cincinnati Nos. 2, 3, and 4 Dial Type Horizontal & Vertical Milling Machines Model OM parts manual. This manual gives specifications of each type of milling machine in detail. The Cincinnati manual contains clear explosive view diagrams of all the parts with parts descriptions for these milling machines. Please see contents pictured above, and the pictures of the Cincinnati milling machines covered in this manual.
This manual would cover Cincinnati milling machines with serial numbers starting with either 2A or 4A, but this does not cover the No. 1 milling machines. No. 1 milling machines are model ER.
Universal
Plain
Vertical
Overview:
I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear. These can be much more useful than a low resolution pdf download.
