Description
Number of Pages: 90

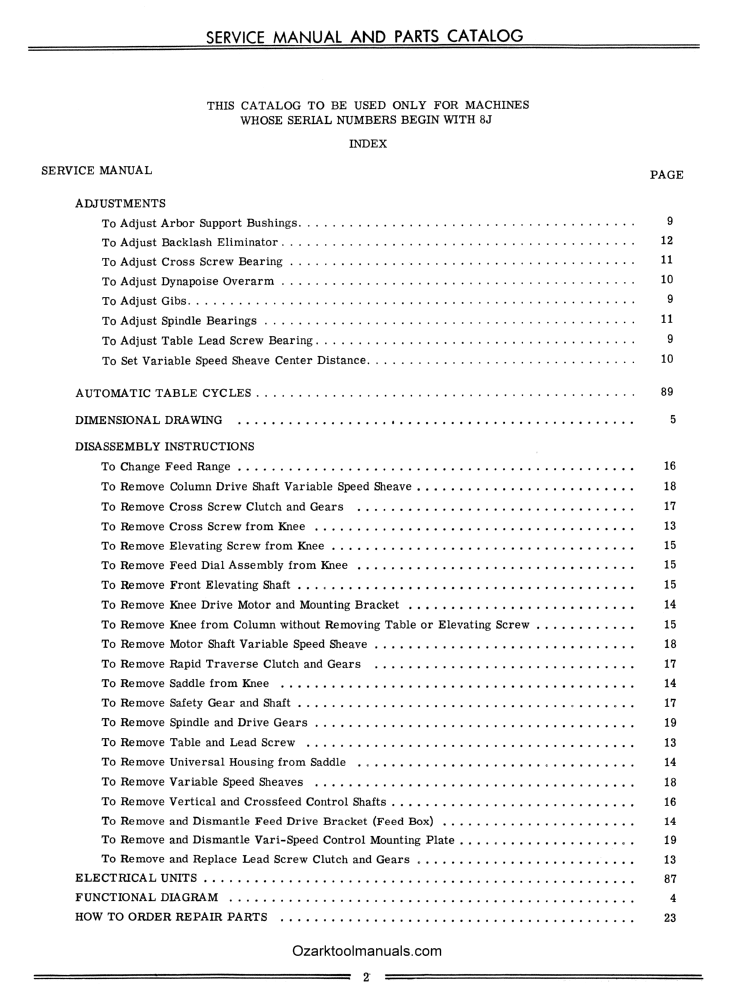

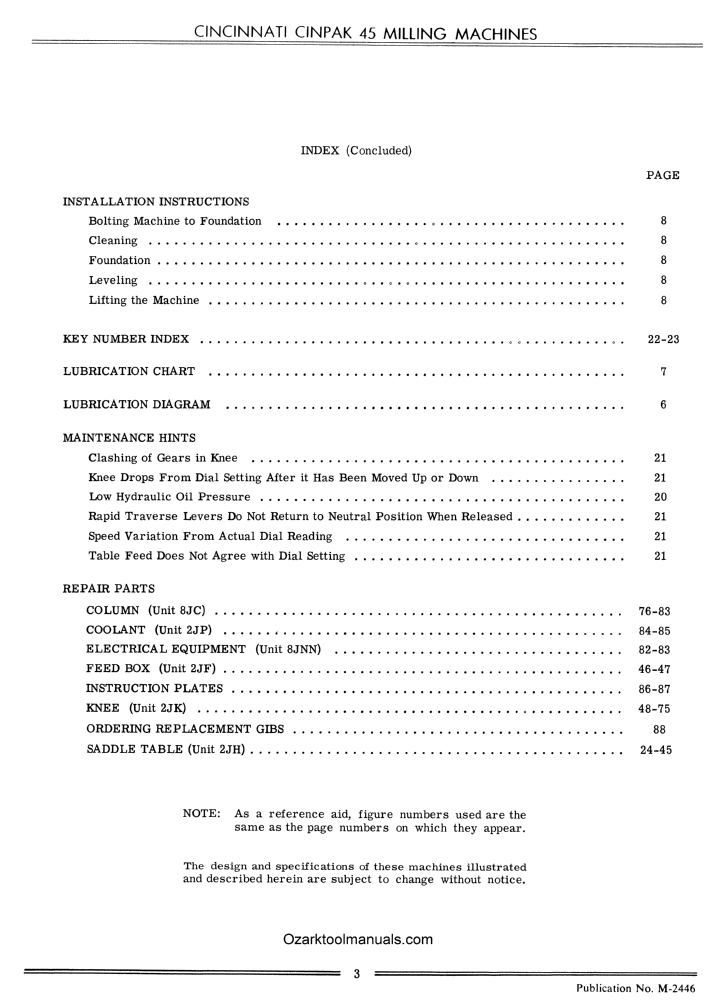

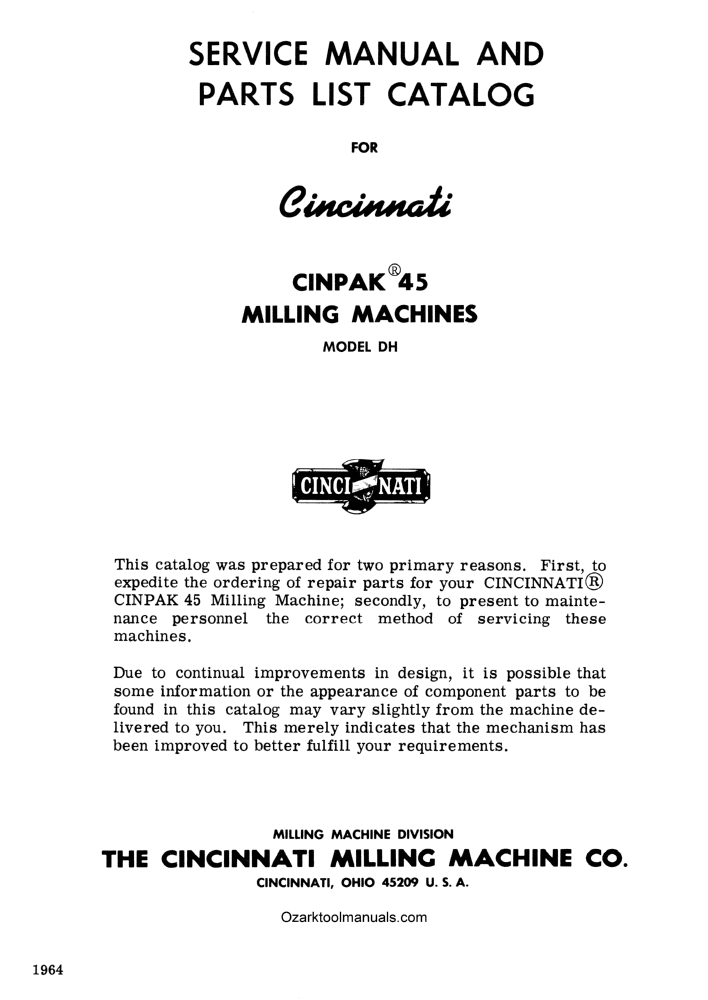

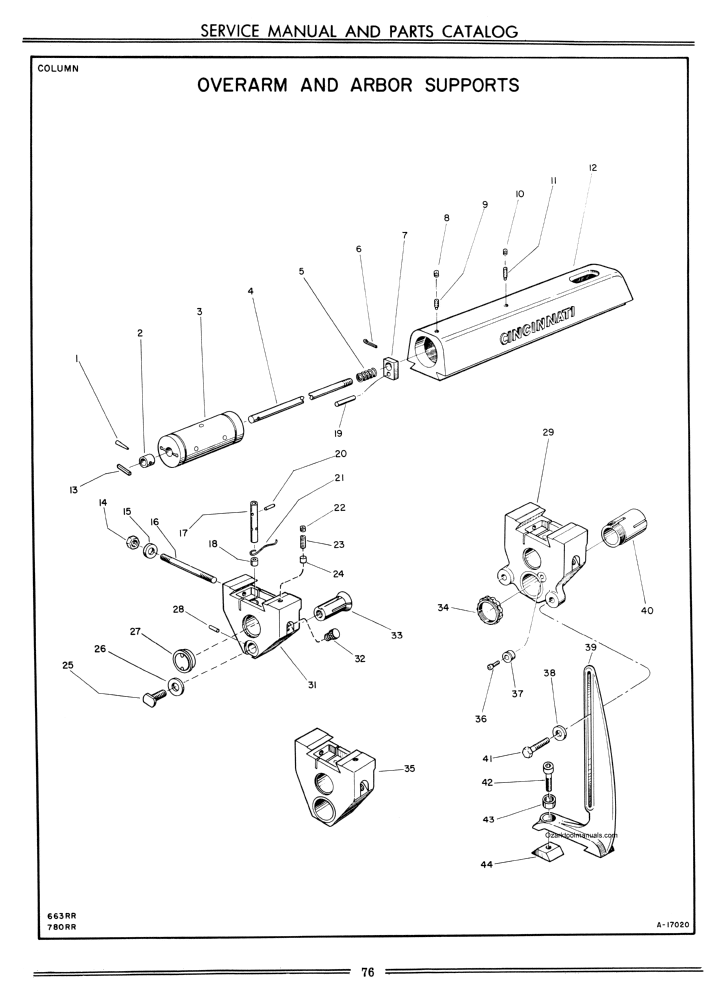

This is a reproduction, not a photocopy, of an original 1964 Cincinnati CINPAK 45 Horizontal Milling Machines Service & Parts Manual. This manual contains installation dimensions and installation instructions. The mill manual includes lubrication and maintenance instructions. There are step-by-step detailed instructions on how to adjust and take apart nearly every section of these mills from the spindle bearings down to the knee. The Cincinnati Mills service manuals are the most detailed manuals I’ve seen for any machine. The manual also includes a lot of explosive view diagrams of all the different parts for these Cincinnati CINPAK 45 Milling Machines.
We also have the Operating and Instructions manual for these Cincinnati CINPAK 45 mills here:
Cincinnati CINPAK 45 Horizontal Milling Machines Owner Operator’s Instructions Manual
Overview
I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear; they are then comb bound with heavy cover pages so they lie flat on the workbench. Better than a pdf download.
