Description
Number of Pages: 50

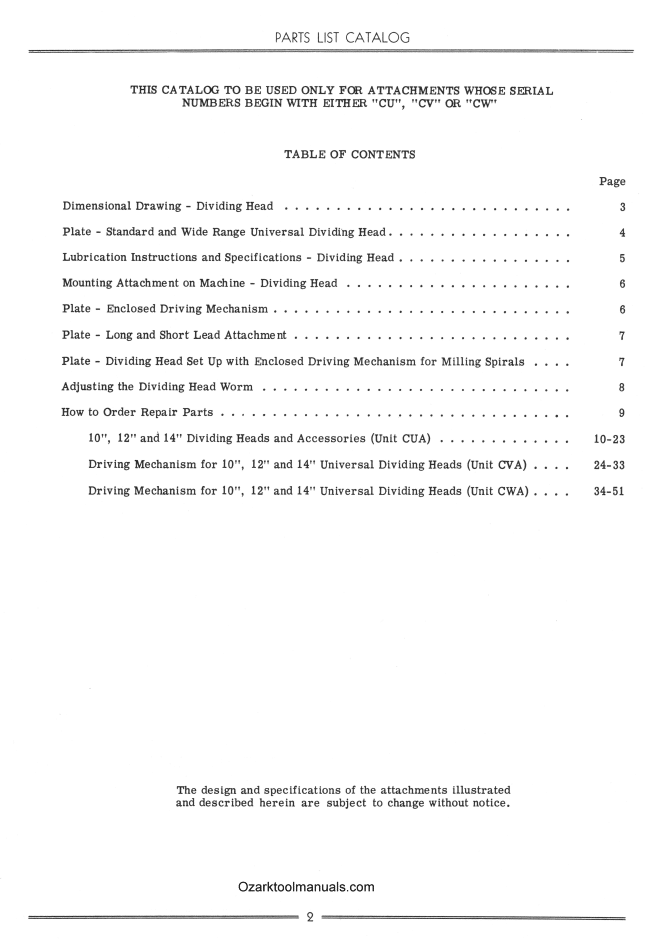

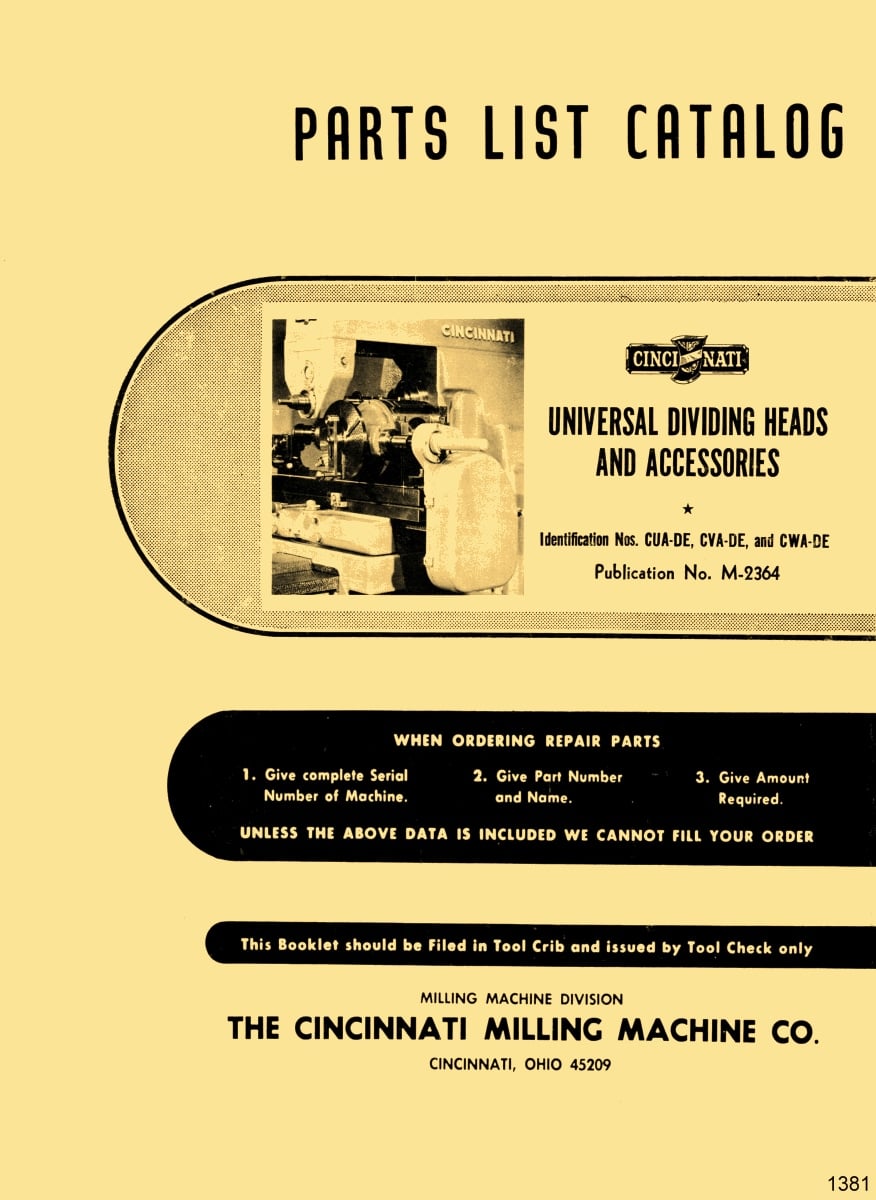

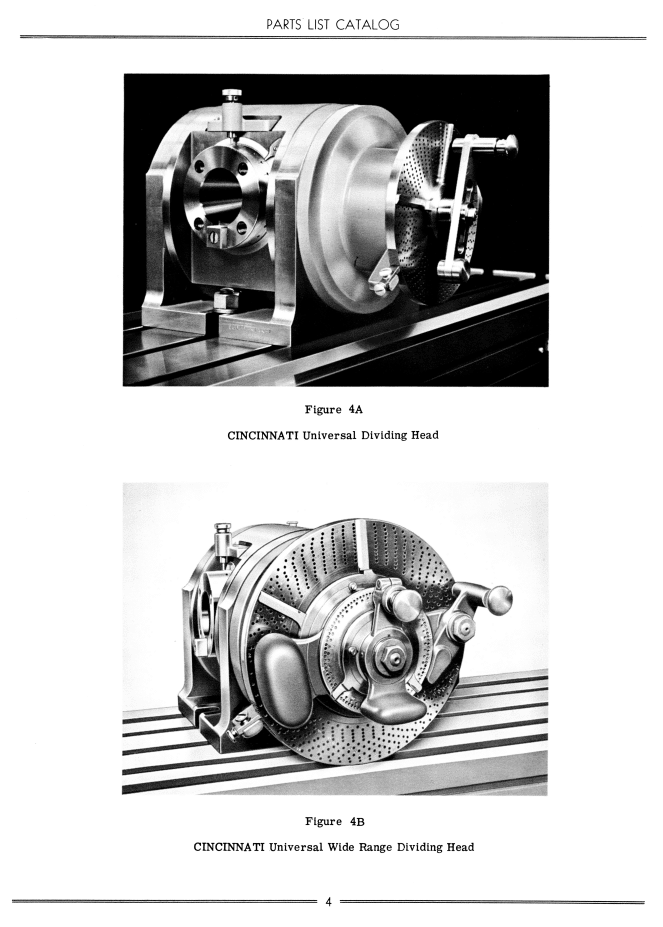

This is a reproduction, not a photocopy, of an original Cincinnati 10″-12″-14″ Universal Dividing Heads Parts Manual. This manual gives specifications of each type of Cincinnati dividing head in detail. The Cincinnati manual contains information on how to properly lubricate and install the dividing head. It also includes instructions on how to adjust the head worm. The manual contains explosive view parts diagrams for 10″-12″-14″ universal dividing heads with serial numbers beginning with “CU”, “CV” or “CW”. This also covers the parts for the driving mechanism.
Overview:
I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear. These can be much more useful than a low resolution pdf download.
