Description
Number of Pages: 58
This is a reproduction of an original EMCO Maximat V10-P and Maximat Mentor10 Parts Manual. This manual is well laid out and has exploded view diagrams of the parts. It covers a lot of accessories and the vertical milling attachment.
I have the instruction manual for this machine in my store as well.

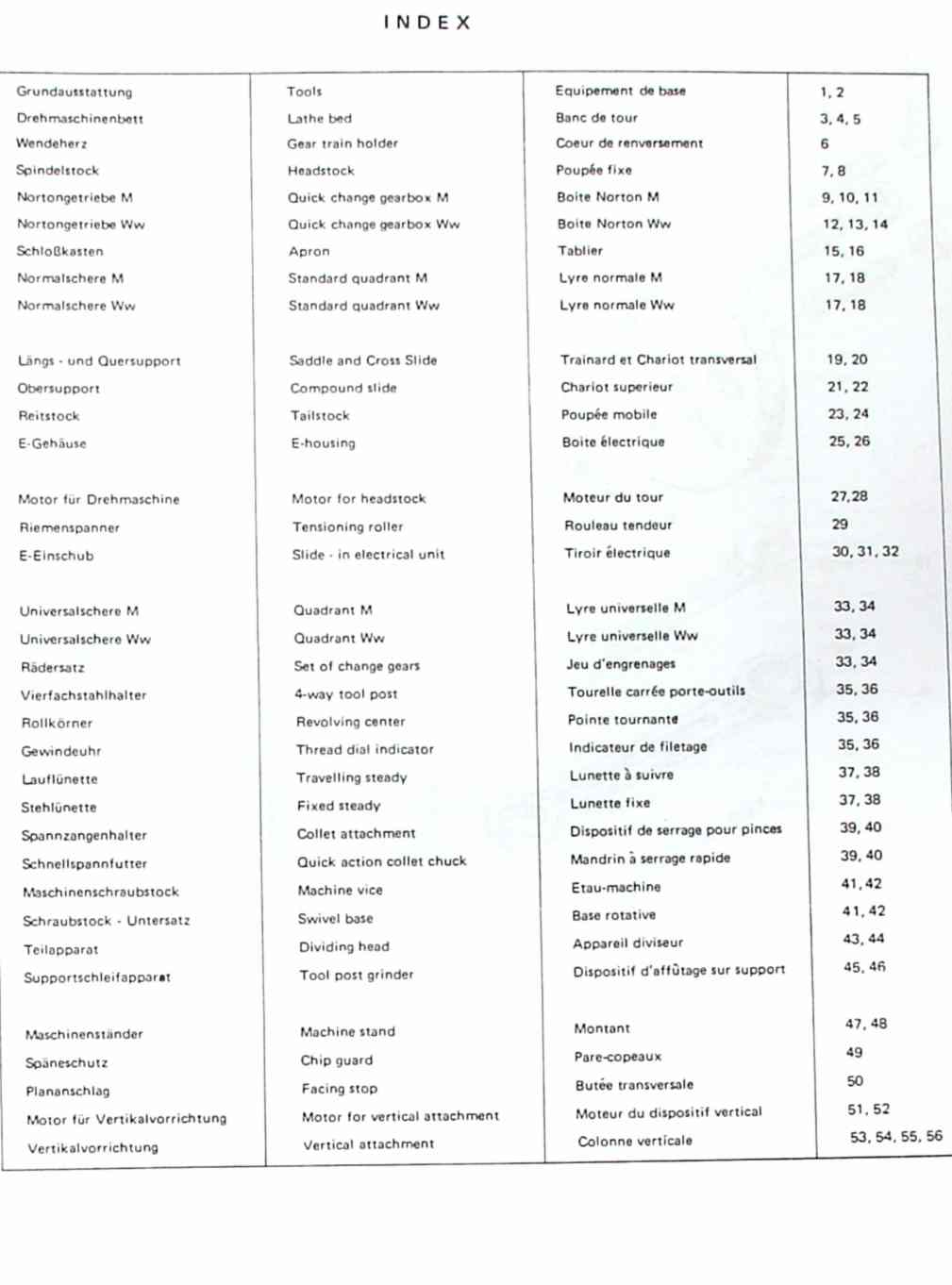

Contents:
|
Tools |
1,2 |
|
Lathe bed |
3,4,5 |
|
Gear train holder |
6 |
|
Headstock |
7,8 |
|
Quick change gearbox M |
9,10,11 |
|
Quick change gearbox Ww |
12,13,14 |
|
Apron |
15,16 |
|
Standard quadrant M |
17,18 |
|
Standard quadrant Ww |
17,18 |
|
Saddle and Cross Slide |
19,20 |
|
Compound slide |
21,22 |
|
Tailstock |
23,24 |
|
E-housing |
25,26 |
|
Motor for headstock |
27,28 |
|
Tensioning roller |
29 |
|
Slide – in electrical unit |
30,31,32 |
|
Quadrant M |
33,34 |
|
Quadrant Ww |
33,34 |
|
Set of change gears |
33,34 |
|
4-way tool post |
35,36 |
|
Revolving center |
35,36 |
|
Thread dial indicator |
35,36 |
|
Traveling steady |
37,38 |
|
Fixed steady |
37,38 |
|
Collet attachment |
39,40 |
|
Quick action collet chuck |
39,40 |
|
Machine vice |
41,42 |
|
Swivel base |
41,42 |
|
Dividing head |
43,44 |
|
Tool post grinder |
45,46 |
|
Machine stand |
47,48 |
|
Chip guard |
49 |
|
Facing stop |
50 |
|
Motor for vertical attachment |
51,52 |
|
Vertical attachment |
53,54,55,56 |
Overview:
I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear.
