Number of Pages: 17

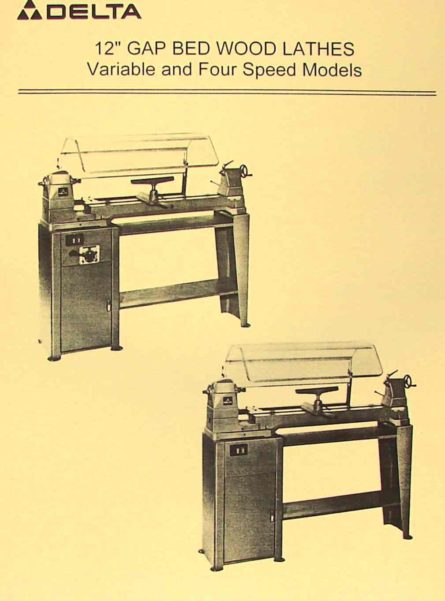

This is a reproduction, not a photocopy, of an original Delta 12″ Gap Bed Wood Lathes Instruction and Parts Manual. This manual covers the variable speed models: 46-541, 46-542, 46-543, 46-544, 46-545, 46-525, and four speed models: 46-200, 46-203, 46-221, 46-222, 46-223, 46-224. It contains information on lubrication, adjustments, maintenance, and controls as well as a complete parts list with exploded views diagrams.
I also highly recommend the “DELTA Getting the Most Out of Your Lathe Manual“, which we carry. It covers a lot of different set ups and unique uses for these lathes.
I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear; they are then comb bound with heavy cover pages so they lie flat on the workbench.
