ROCKWELL 12″ Newer Style Variable Wood Lathe Manual

$19.50

SKU: 0591 Categories: , , , , Tag:

Description


Number of Pages: 14

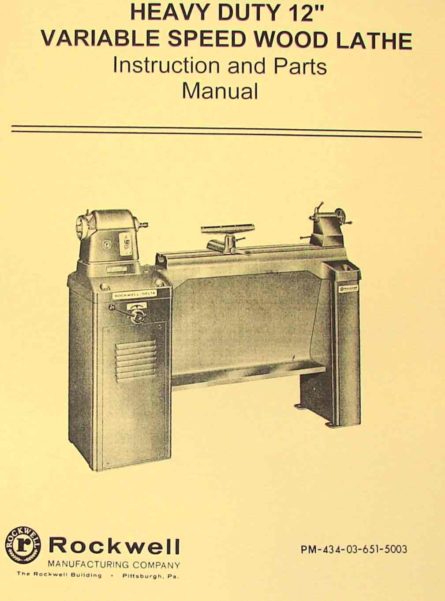

This is a reproduction, not a photocopy, of an original Rockwell Heavy Duty 12″ Variable Speed Wood Lathe Instruction and Parts Manual for the 46-612 and 46-613. This manual contains information on adjustments, maintenance, and controls as well as a complete parts list with exploded view diagrams.



New Style Variable Speed Drive System

For 46-450 models:

Rockwell used the 46-450 catalog number on two completely different variable speed drive systems. This manual covers the new style of the drive system. We have the new style system at this link. The images below show the visual differences in the controls of the systems.



Old Drive System Controls                     New Drive System Controls



The manual above may help you operate and maintain your wood lathe, but if you would like to learn more about proper woodturning techniques and using your lathe, I highly recommend you check out this book here: The Wood Lathe - The Missing Shop Manual. Even if you’ve been woodturning for years, you’ll wish this was the manual that originally came with your new lathe. This no-nonsense book focuses on user-friendly solutions and instructions on wood lathe usage.

Overview
I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear.
