Description
Number of Pages: 57, printed 5.5″ x 8.5″
This is a reproduction, not a photocopy, of an original Machinery’s Reference Series Operation of Machine Tools, The Metal Lathe – Part I book. This is handbook describes the basic principles in operating a metal lathe. Please see index and pictures below.
Index
General Description of an Engine Lathe...................5
Example of Cylindrical Turning...........................8
Centering...............................................15
The Use of Lathe Mandrels...............................20
Chuck and Faceplate Work................................24
Lathe Turning Tools.....................................34
Steady- and Follow-rests................................40
How to Cut a Thread in a Lathe..........................45
Calculating Change Gears for Thread Cutting.............54

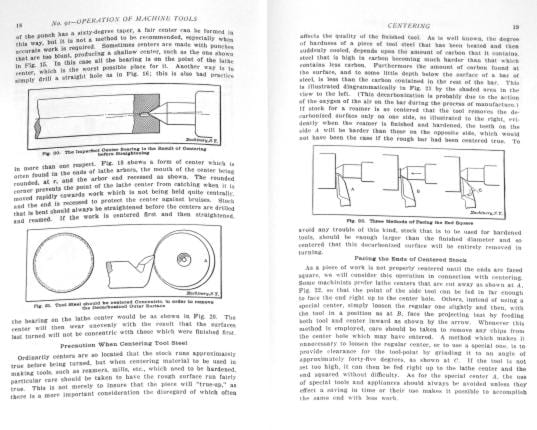

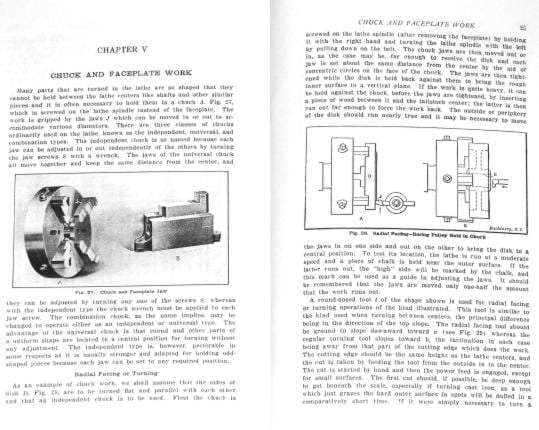

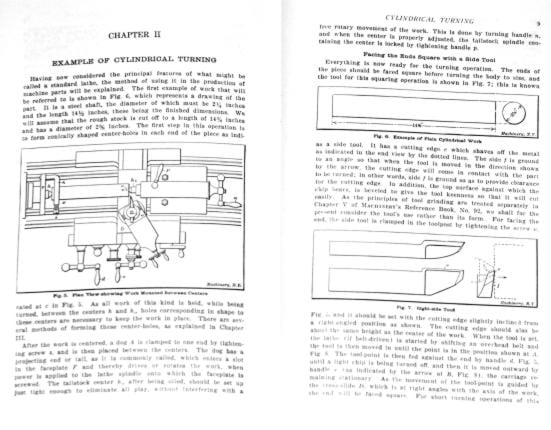

Pictures from inside:
Overview:
I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear.
