Description
Number of Pages: 24
This is a reproduction, not a photocopy, of a Hardinge DSM-A Second Operation Lathe Operator’s Manual. This manual contains information on how to properly operate these Hardinge lathes. Please see the contents listed below.
We also have the maintenance manual and the parts manual for the Hardinge DSM-A lathes in our online store as well.

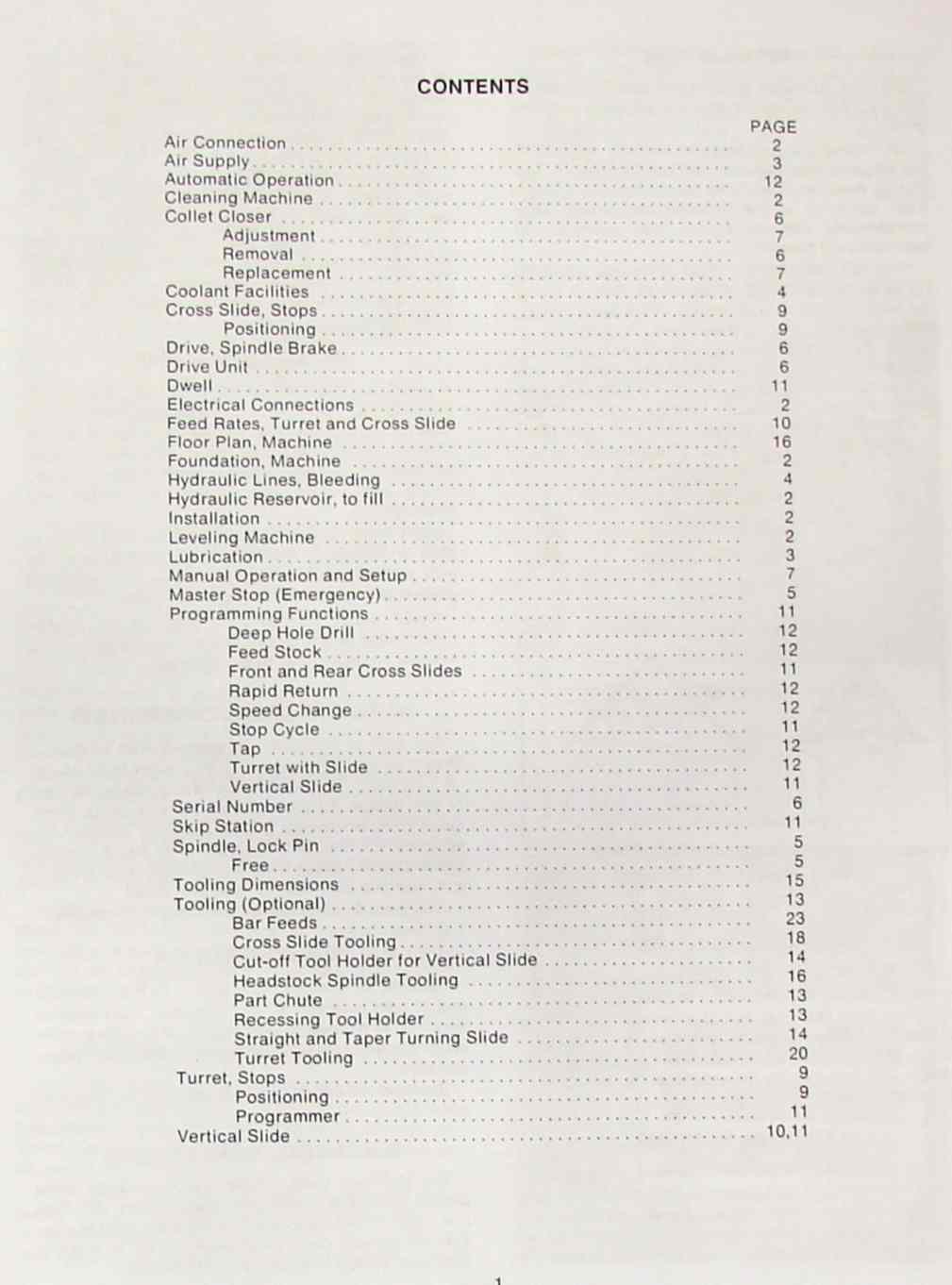

Contents:
Air Connection.......................................2Air Supply...........................................3Automatic Operation.................................12Cleaning Machine.....................................2Collet Closer........................................6 Adjustment........................................7Removal...........................................6
Replacement.......................................7
Coolant Facilities ..................................4
Cross Slide, Stops...................................9
Positioning.......................................9
Drive, Spindle Brake.................................6
Drive Unit...........................................6
Dwell...............................................11
Electrical Connections...............................2
Feed Rates, Turret and Cross Slide .................10
Floor Plan, Machine ................................16
Foundation, Machine .................................2
Hydraulic Lines, Bleeding ...........................4
Hydraulic Reservoir, to fill.........................2
Installation.........................................2
Leveling Machine ....................................2
Lubrication..........................................3
Manual Operation and Setup...........................7
Master Stop (Emergency)..............................5
Programming Functions...............................11
Deep Hole Drill .................................12
Feedstock........................................12
Front and Rear Cross Slides......................11
Rapid Return.....................................12
Speed Change.....................................12
Stop Cycle.......................................11
Tap..............................................12
Turret with Slide................................12
Vertical Slide...................................11
Serial Number........................................6
Skip Station........................................11
Spindle, Lock Pin ...................................5
Free..............................................5
Tooling Dimensions .................................15
Tooling (Optional)..................................13
Bar Feeds........................................23
Cross Slide Tooling..............................18
Cut-off Tool Holder for Vertical Slide...........14
Headstock Spindle Tooling........................16
Part Chute ......................................13
Recessing Tool Holder............................13
Straight and Taper Turning Slide.................14
Turret Tooling ..................................20
Turret, Stops........................................9
Positioning.......................................9
Programmer.......................................11
Vertical Slide...................................10,11
Overview
I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear; they are then comb bound with heavy cover pages so they lie flat on the workbench.
