Description
Number of Pages: 42

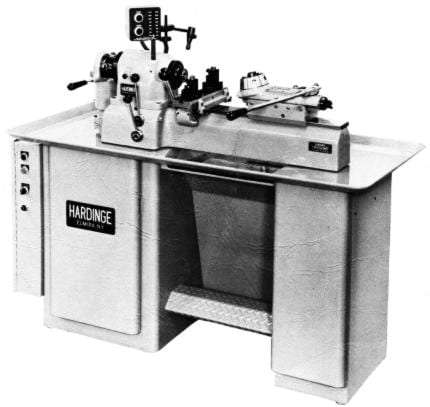

This is a reproduction, not a photocopy, of an original Hardinge DSM-59 and DSM59-R Super-Precision Bar and Second Operation Machines Parts Manual with serial numbers starting at 7,000. This manual contains cross-sectional parts diagrams for this machine. See index below.
We have the Operator’s Manual for this particular DSM-59 and DSM-59R lathes here:
HARDINGE DSM-59 DSM59-R DSM59 Metal Lathe Operator’s Manual
We have manuals for both older and newer models as well HERE.
Index

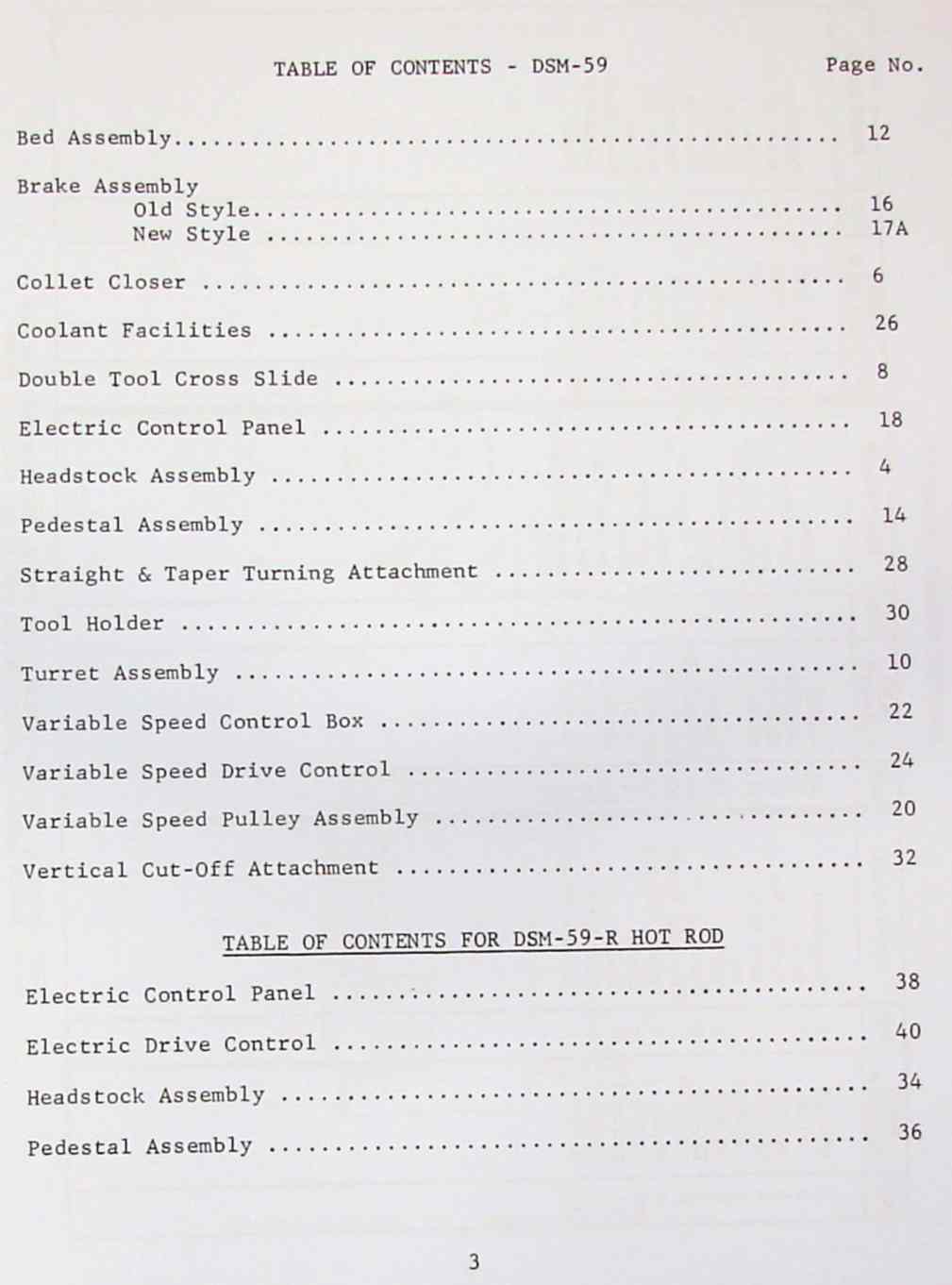

Bed Assembly...................................12 Brake Assembly Old Style.................................16 New Style................................17A Collet Closer...................................6 Coolant Facilities.............................26 Double Tool Cross Slide.........................8 Electric Control Panel.........................18 Headstock Assembly..............................4 Pedestal Assembly..............................14 Straight & Taper Turning Attachment............28 Tool Holder....................................30 Turret Assembly................................10 Variable Speed Control Box.....................22 Variable Speed Drive Control...................24 Variable Speed Pulley Assembly.................20 Vertical Cut-Off Attachment....................32
TABLE OF CONTENTS FOR DSM-59-R HOT ROD
Electric Control Panel.........................38
Electric Drive Control.........................40
Headstock Assembly.............................34
Pedestal Assembly..............................36
