Description
Number of Pages: 35
This is a reproduction, not a photocopy, of a Hardinge ASM-5C Operator’s Manual. This manual contains information on the contents listed below.
We have the Maintenance Manual for this Hardinge ASM-5C lathe here:
HARDINGE ASM-5C Automatic Lathe Maintenance Manual
Contents:

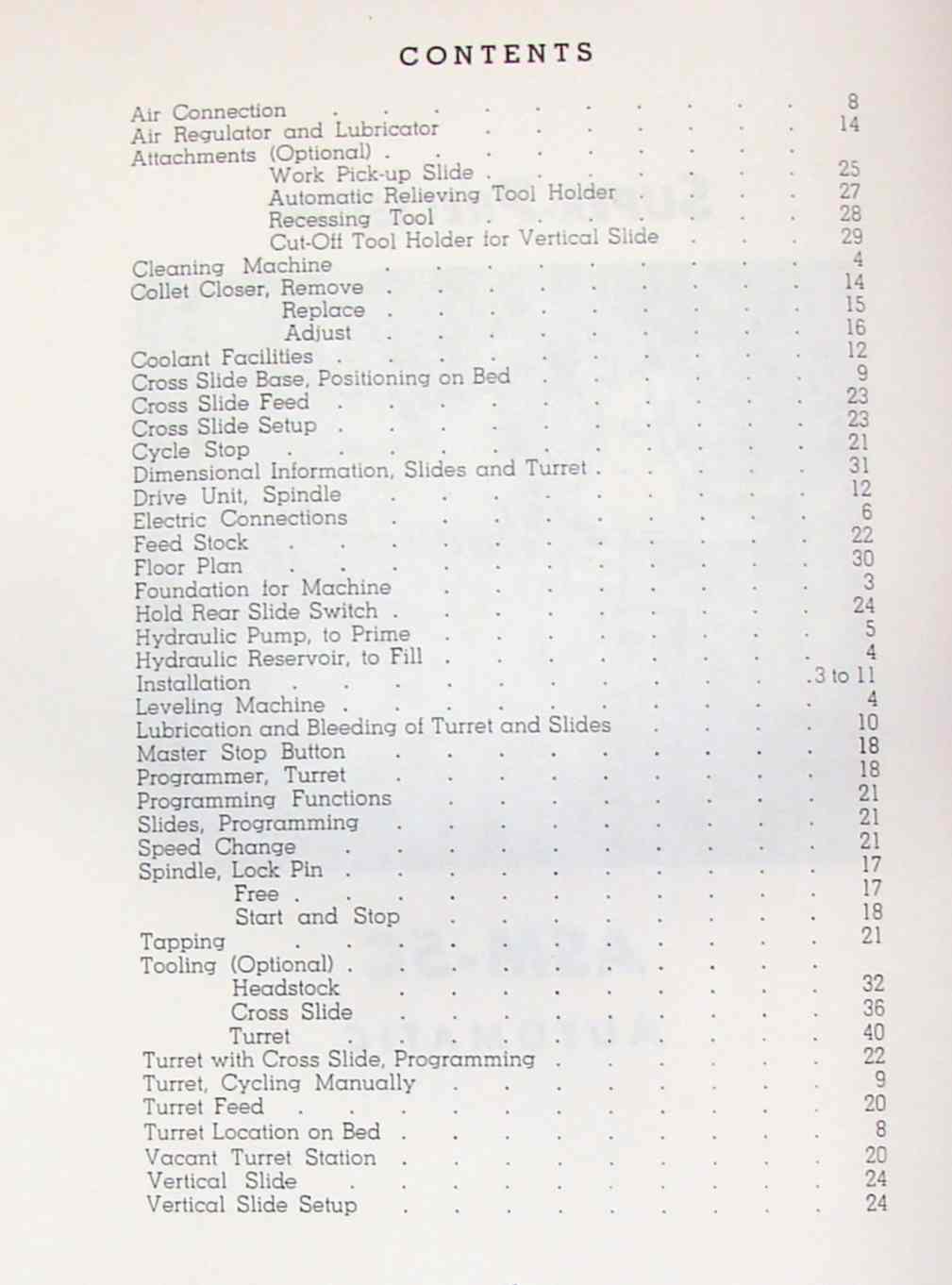

Air Connection....................................8 Air Regulator and Lubricator.....................14 Attachments (Optional) Work Pick-up Slide...............................25 Automatic Relieving Tool Holder .................27 Recessing Tool...................................28 Cut-Off Tool Holder for Vertical Slide ..........29 Cleaning Machine..................................4 Collet Closer, Remove............................14 Replace..........................................15 Adjust...........................................16 Coolant Facilities...............................12 Cross Slide Base, Positioning on Bed..............9 Cross Slide Feed.................................23 Cross Slide Setup................................23 Cycle Stop.......................................21 Dimensional Information, Slides and Turret.......31 Drive Unit, Spindle..............................12 Electric Connections .............................6 Feed Stock.......................................22 Floor Plan.......................................30 Foundation for Machine ...........................3 Hold Rear Slide Switch...........................24 Hydraulic Pump, to Prime .........................5 Hydraulic Reservoir, to Fill......................4 Installation................................3 to 11 Leveling Machine..................................4 Lubrication and Bleeding of Turret and Slides....10 Master Stop Button...............................18 Programmer, Turret...............................18 Programming Functions............................21 Slides, Programming..............................21 Speed Change.....................................21 Spindle, Lock Pin................................17 Free.............................................17 Start and Stop...................................18 Tapping .........................................21 Tooling (Optional) Headstock........................................32 Cross Slide......................................36 Turret...........................................40 Turret with Cross Slide, Programming ............22 Turret, Cycling Manually..........................9 Turret Feed......................................20 Turret Location on Bed............................8 Vacant Turret Station............................20 Vertical Slide...................................24 Vertical Slide Setup.............................24
Overview
I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear; they are then comb bound with heavy cover pages so they lie flat on the workbench.
