Description
Number of Pages: 121

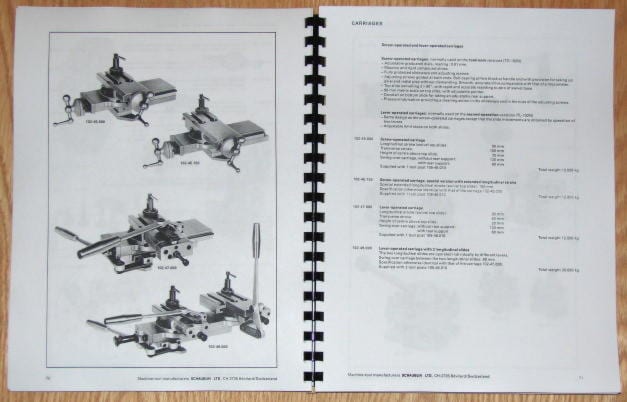

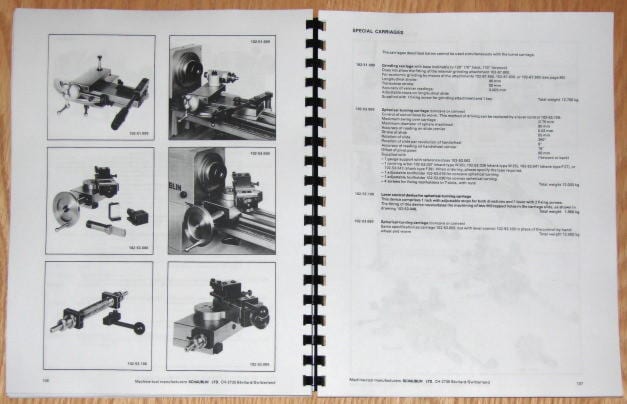

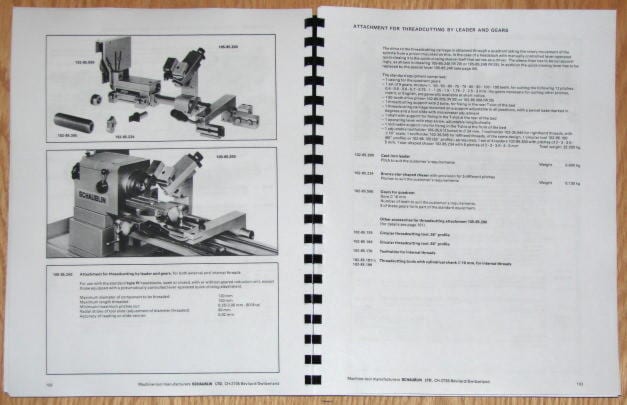

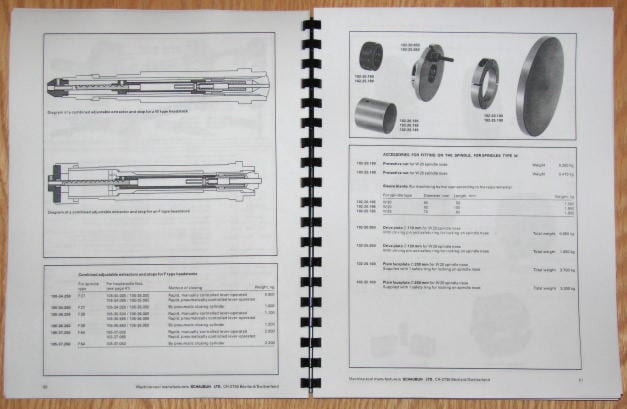

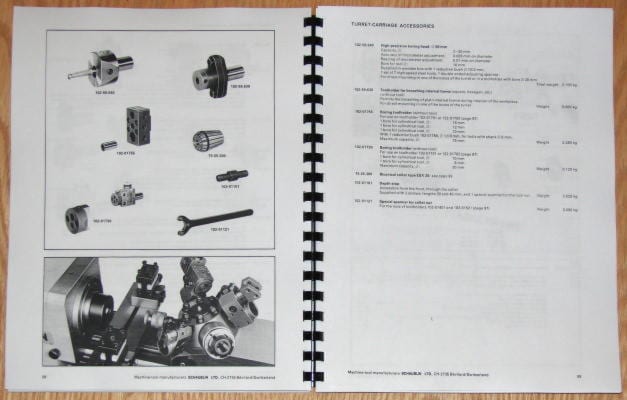

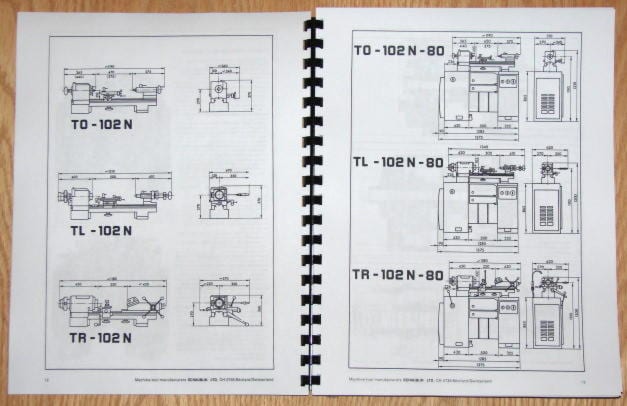

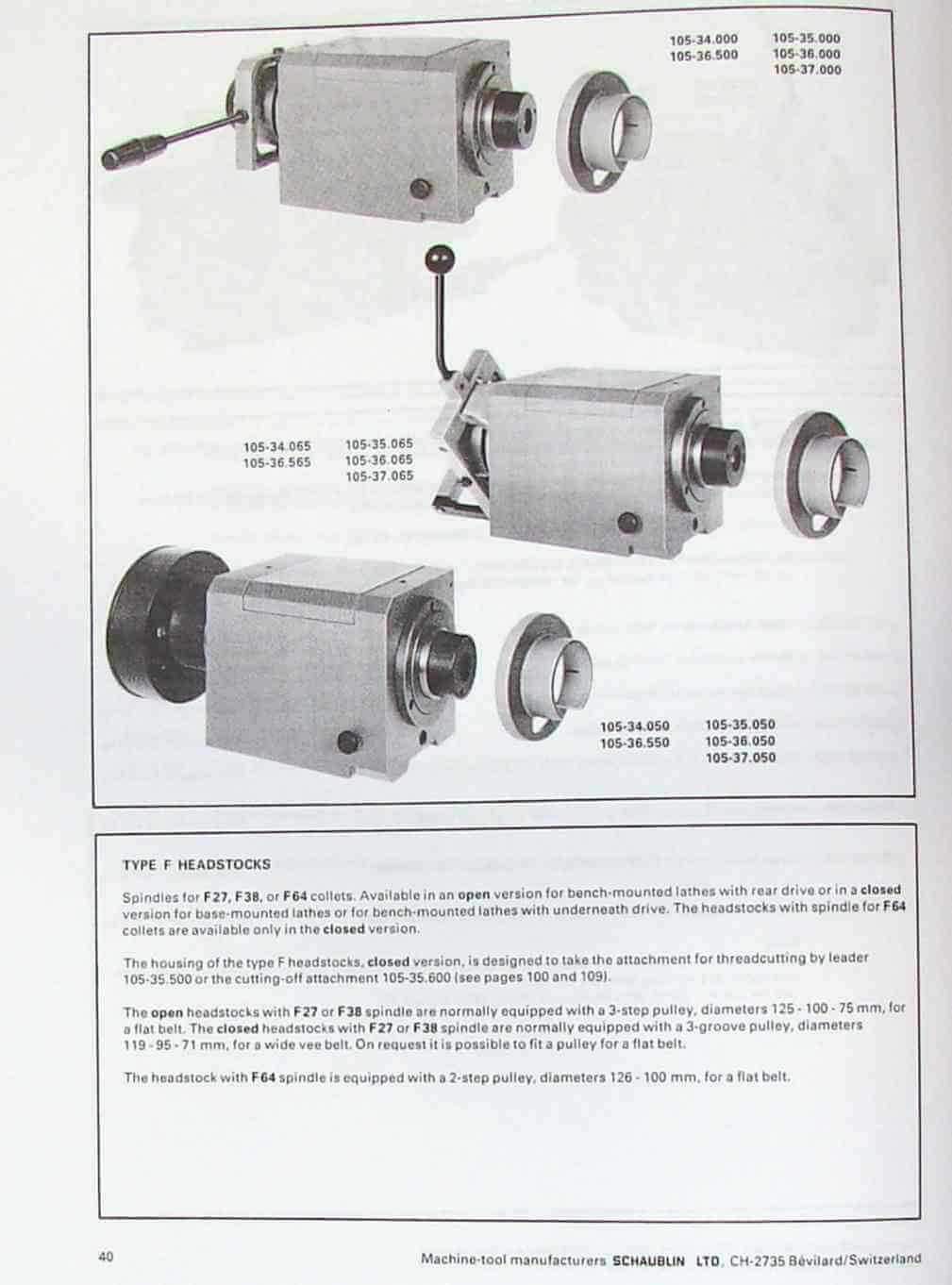

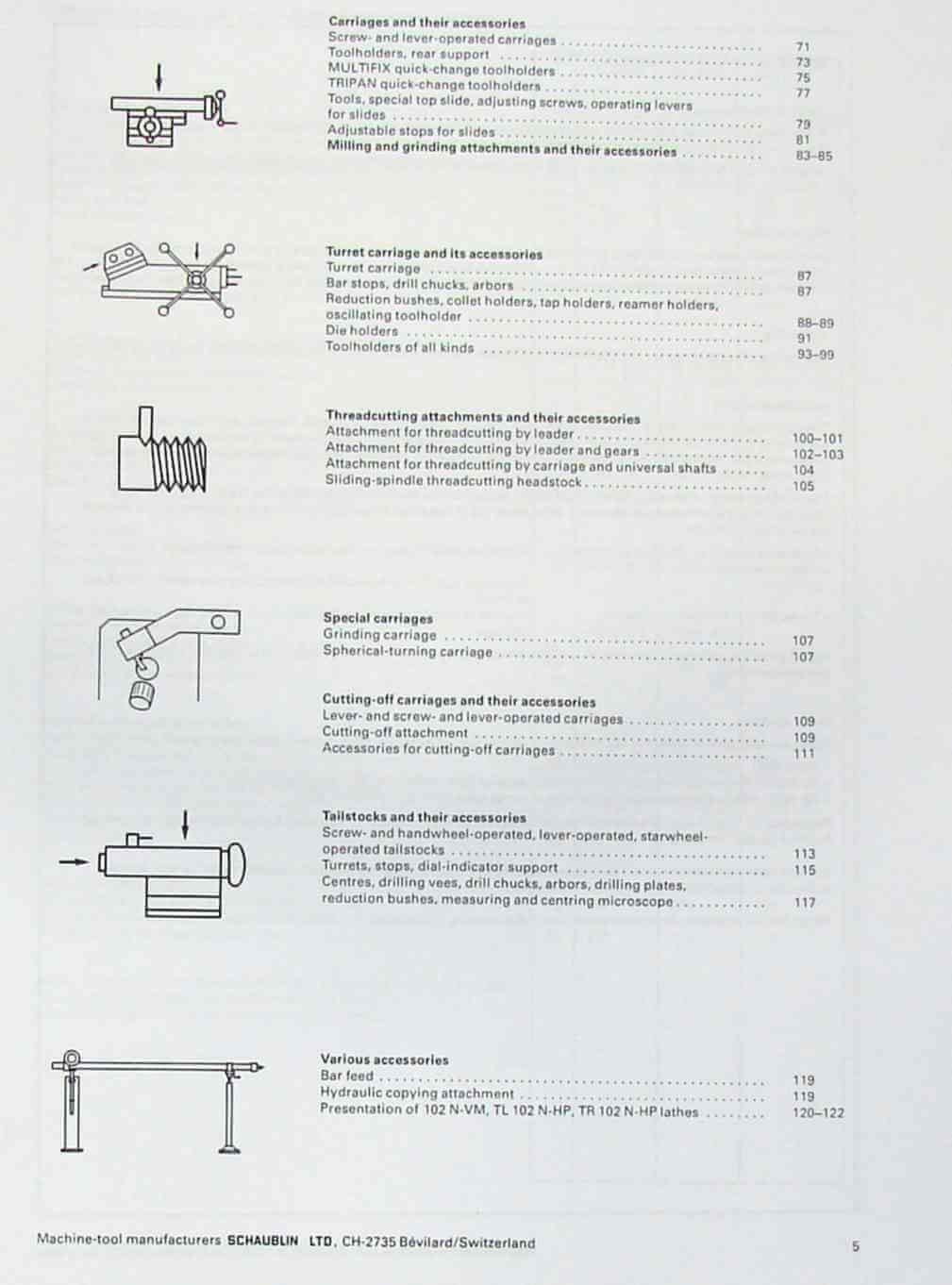

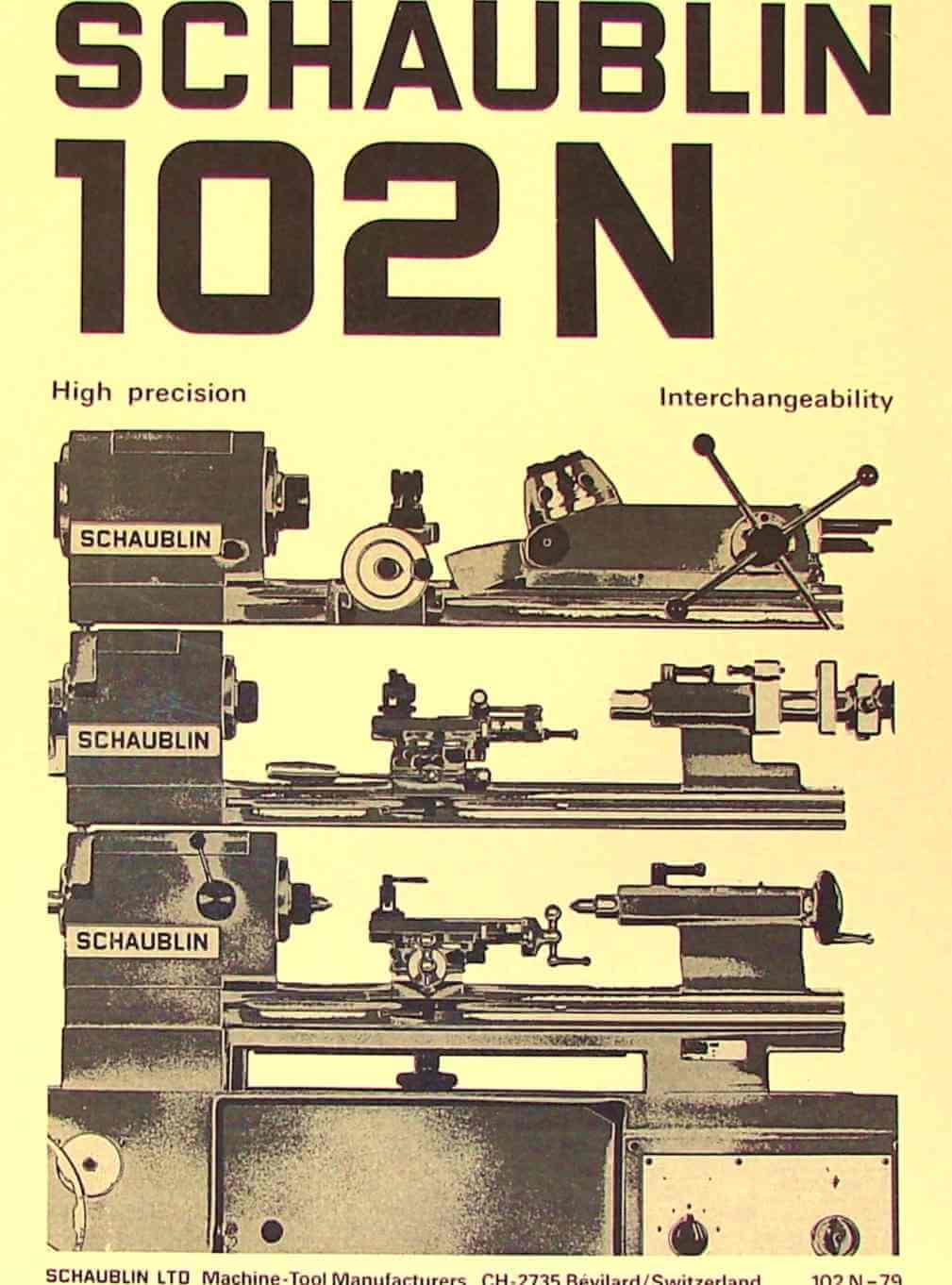

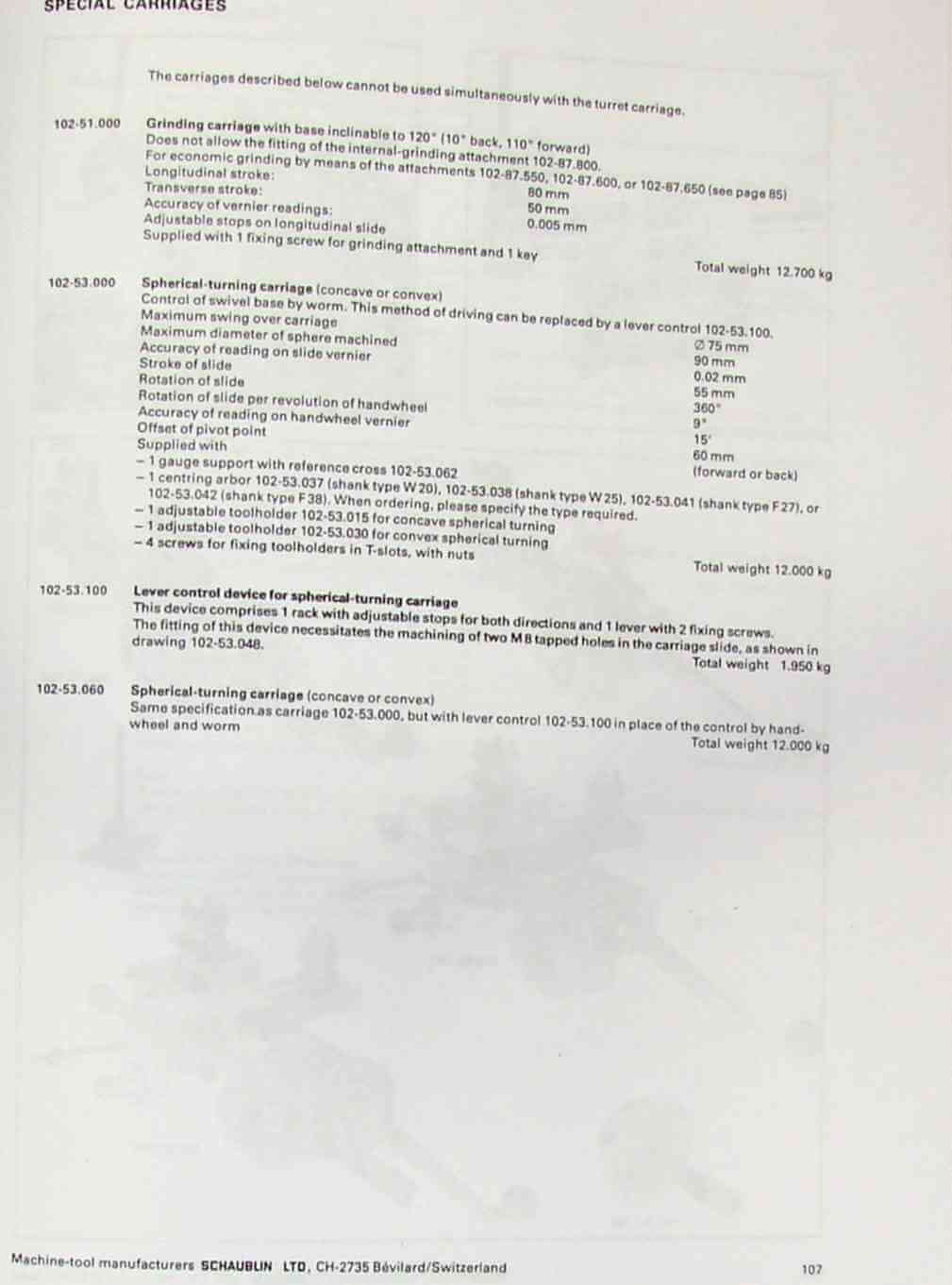

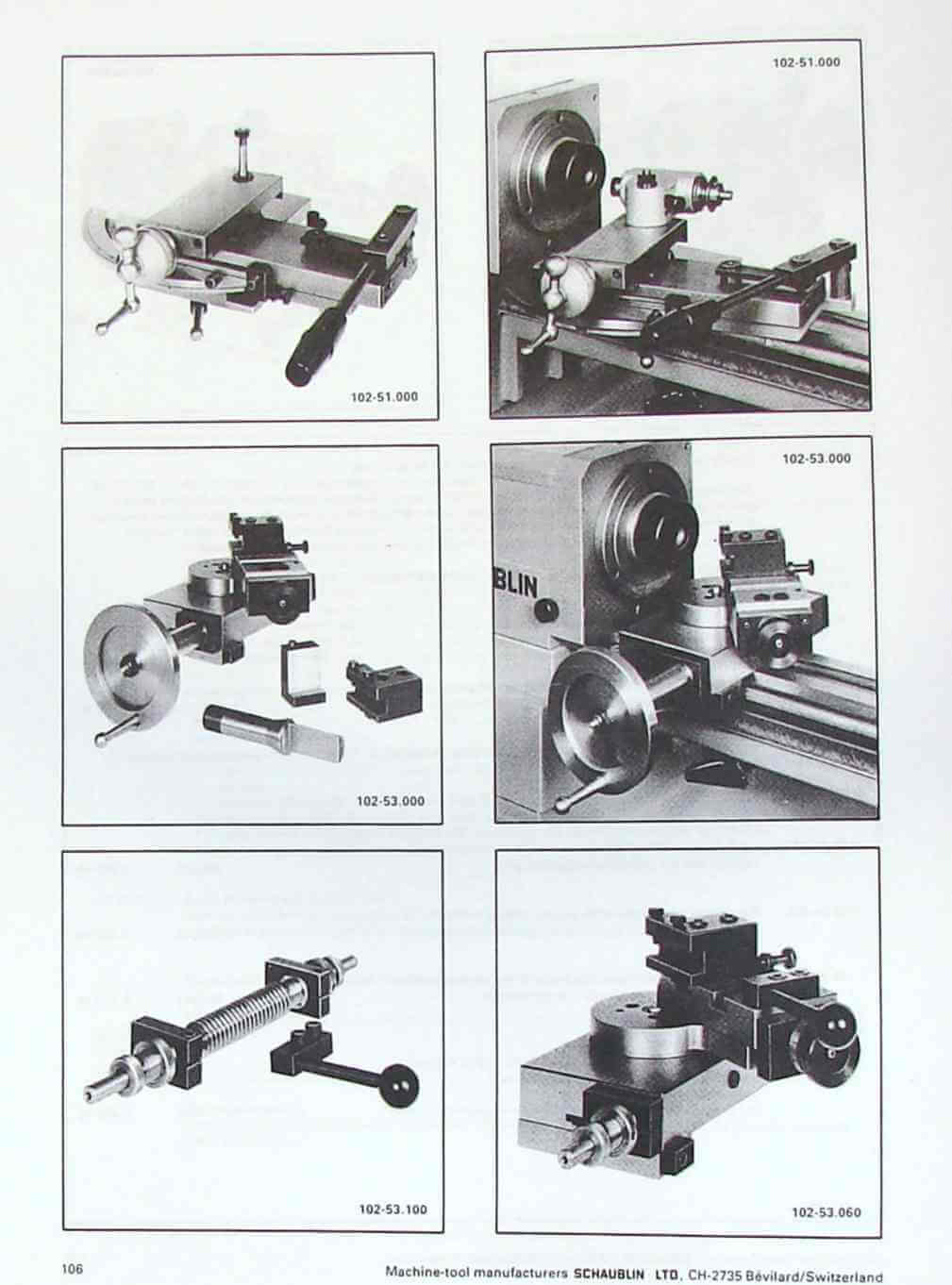

This is a reproduction, not a photocopy, of an original Schaublin No. 102N Series Precision Metal Lathes Technical Specifications Catalog. This catalog is really nice if you have one of these lathes, because it covers all the different options and accessories for this series of lathes. It includes the specifications and images of the different types of tables, cabinets, headstocks, chucks, cross-slides, carriages, tailstocks, turrets, etc…The catalog also shows a lot on the set up of the headstocks, and how a lot of the accessories went together and on the lathe.
I originally purchased this catalog to get ideas and designs for ornamental turning. These lathes were taken after the design of older ornamental machines, and then modernized. The attachments and set up configurations would be beneficial for anyone doing research in ornamental turning, watch making, jewelry making, or any fine precision work.
Overview
I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear; they are then comb bound with heavy cover pages so they lie flat on the workbench.
