Description
Number of Pages: 57 + 9 foldouts
This is a reproduction, not a photocopy, of an original Yamazaki Mazak Hole Master 5-12 Radial Drill Operating Instructions and Parts Manual.

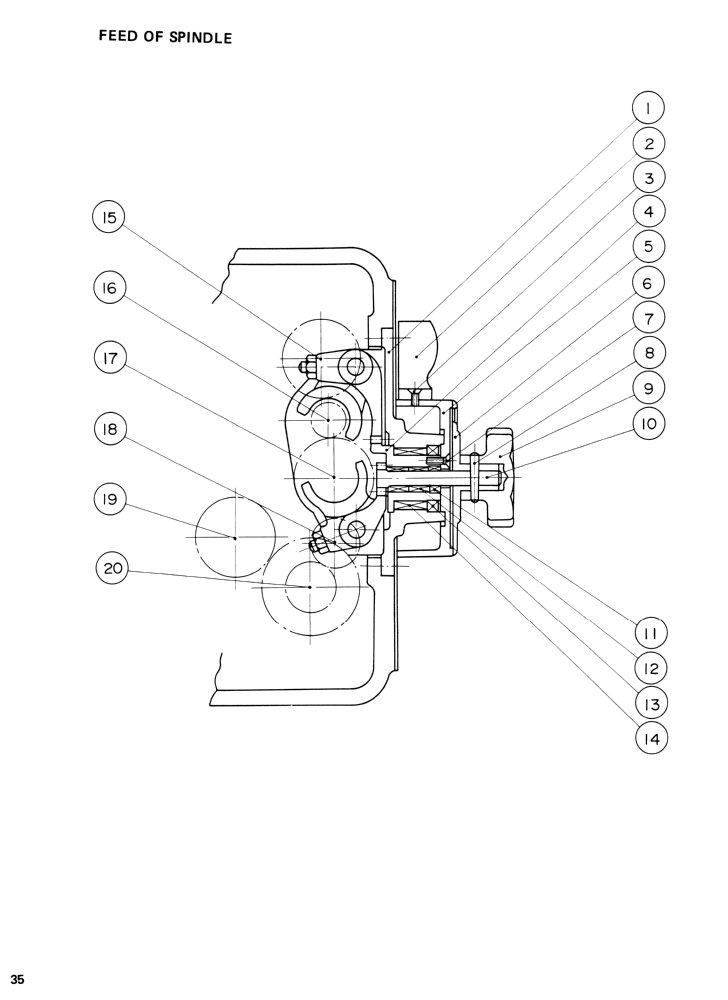

This manual contains information about the metal lathe specifications, lifting/installation instructions, and setting it up. The manual contains proper lubricating instructions with a lubrication chart. This Mazak manual covers maintenance and adjustments, like adjusting the spindle clutch. The manual also contains clear cross-sectional view parts diagrams on large foldouts with parts list and descriptions for the Mazak Hole Master 5-12 radial drill.
Overview
I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear; they are then comb bound with heavy cover pages so they lie flat on the workbench. Better than a pdf download.
