Description
Number of Pages: 129

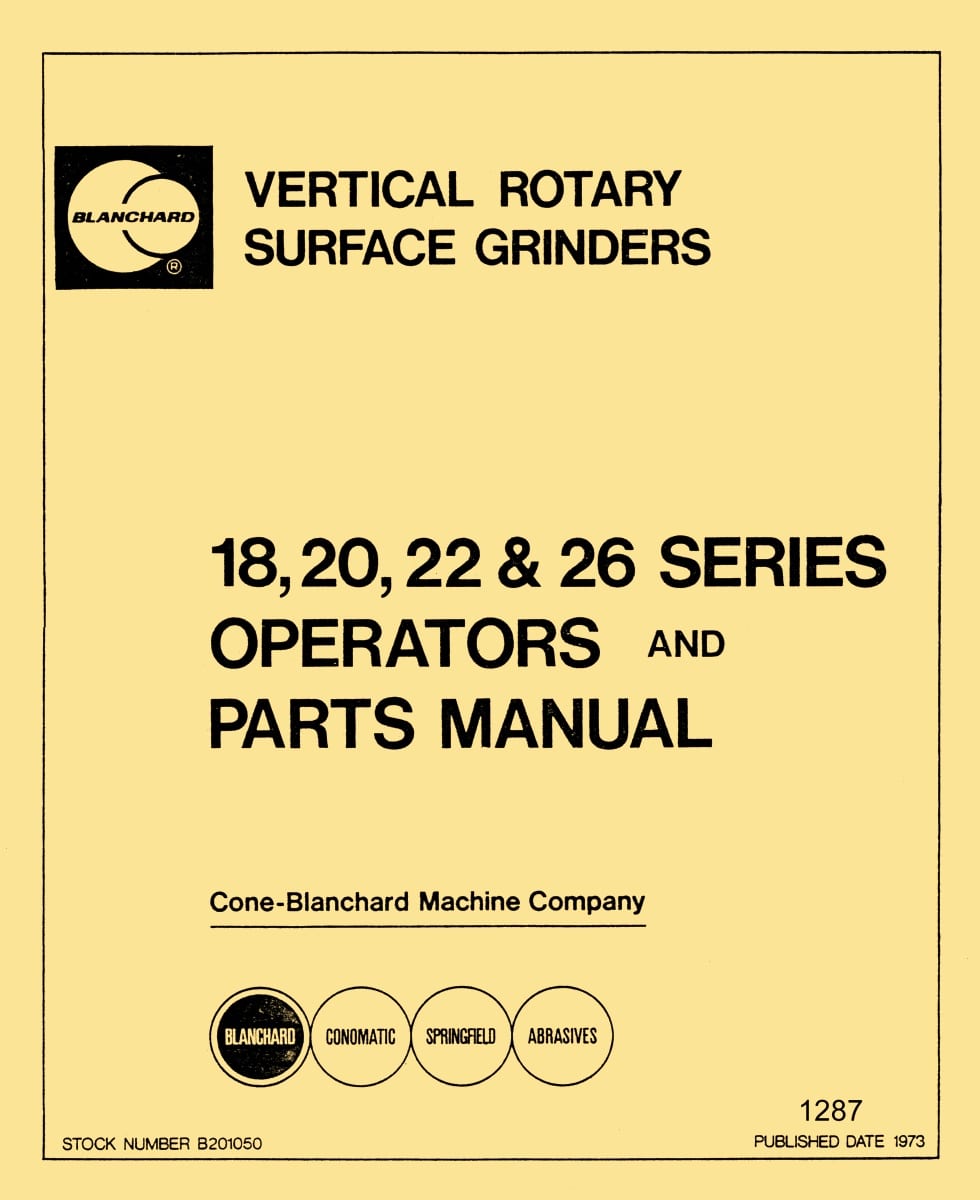

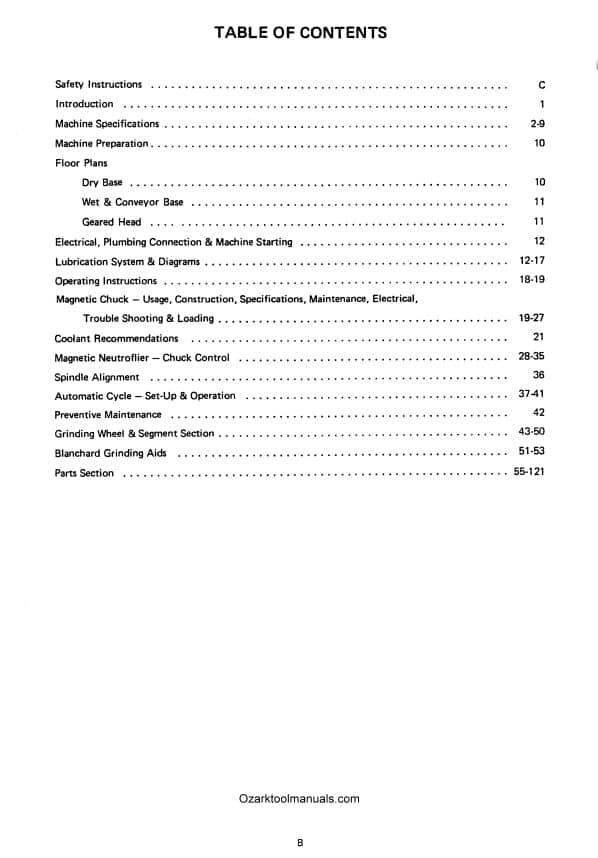

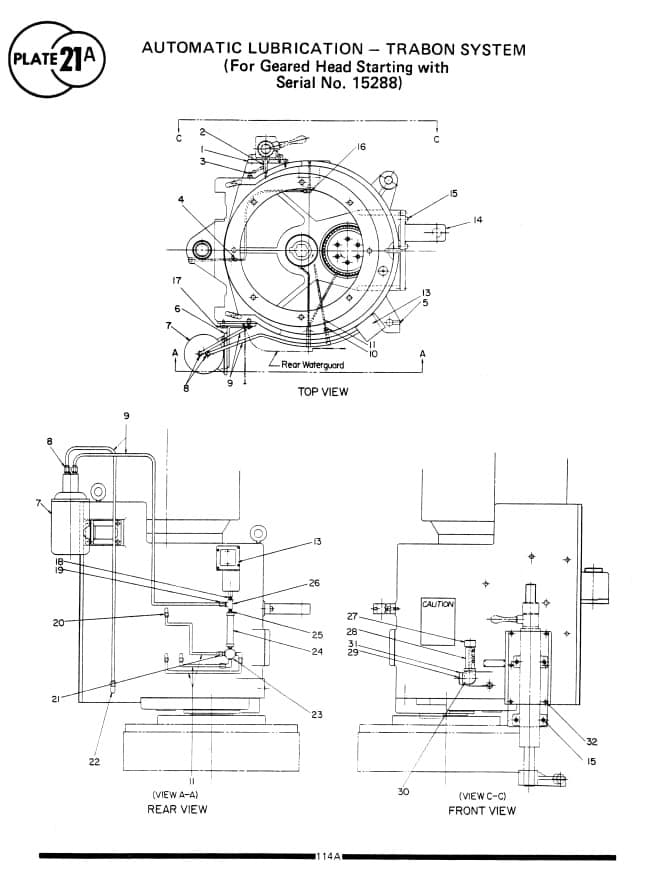

This is a reproduction, not a photocopy, of an original Blanchard No. 18, 20, 22 & 26 Series Surface Grinder Operator’s,Maintenance and Parts Manual printed in 1973. This manual contains information on the different machine specifications and layout, setting up the surface grinder, adjustments, lubrication, truing the chuck, and proper grinding wheel selection. The Blanchard manual also has steps for locating a fault in the chuck circuit, plus installing and operating the neutrofier, with wiring diagrams. This Blanchard manual also contains explosive view diagrams of all the parts with parts list and descriptions.
Known models covered:
18-30, 18D-30, 18K-30
20-36, 20D-36, 20K-36
20C-36, 20CD-36, 20CK-36
20H-D-36, 22H-D-42
20H-CD-36, 22H-CD-42
22-42, 22D-42, 22K-42
22C-42, 22CD-42, 22CK-42
26H-D-48
Overview:
I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear, which is easier to read than a pdf download.
