Description
Number of Pages: 88

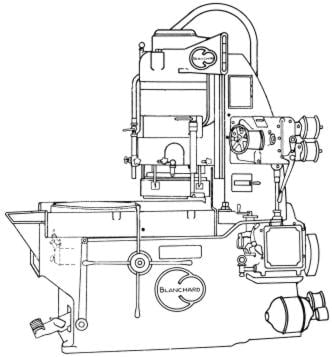

This is a reproduction, not a photocopy, of an original Blanchard No. 16 Surface Grinder Parts Manual. This manual contains cross-sectional view diagrams of all the parts. Please see contents below:
Contents:
Instructions for Ordering Parts.............38-39 Belt Drive Head Unit........................40-45 Direct Motor Drive Head, Taper Bearing......46-52 Conversion of Taper Bearing Head............53-54 Direct Motor Drive Head, Ball Bearing.......55-60 Wheel Dresser...............................60-62 Direct Motor Drive Head, Timken Bearing.....63-67 Direct Motor Drive Head, Thrust Bearing.....68-72 Caliper.....................................73-76 Pump........................................77-79 Chuck Speed Gear Box, 8 Speed...............80-86 Chuck Speed Gear Box, 6 Speed...............87-93 Chucks, Contact Rings, Brush Holders.......94-101 Mitre Gear Box Units......................102-108 Upper Gear Box............................109-115 Treadle...................................115-116 Water Guards & Tools......................117-121
Overview:
I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear.
