Description
Number of Pages: 68

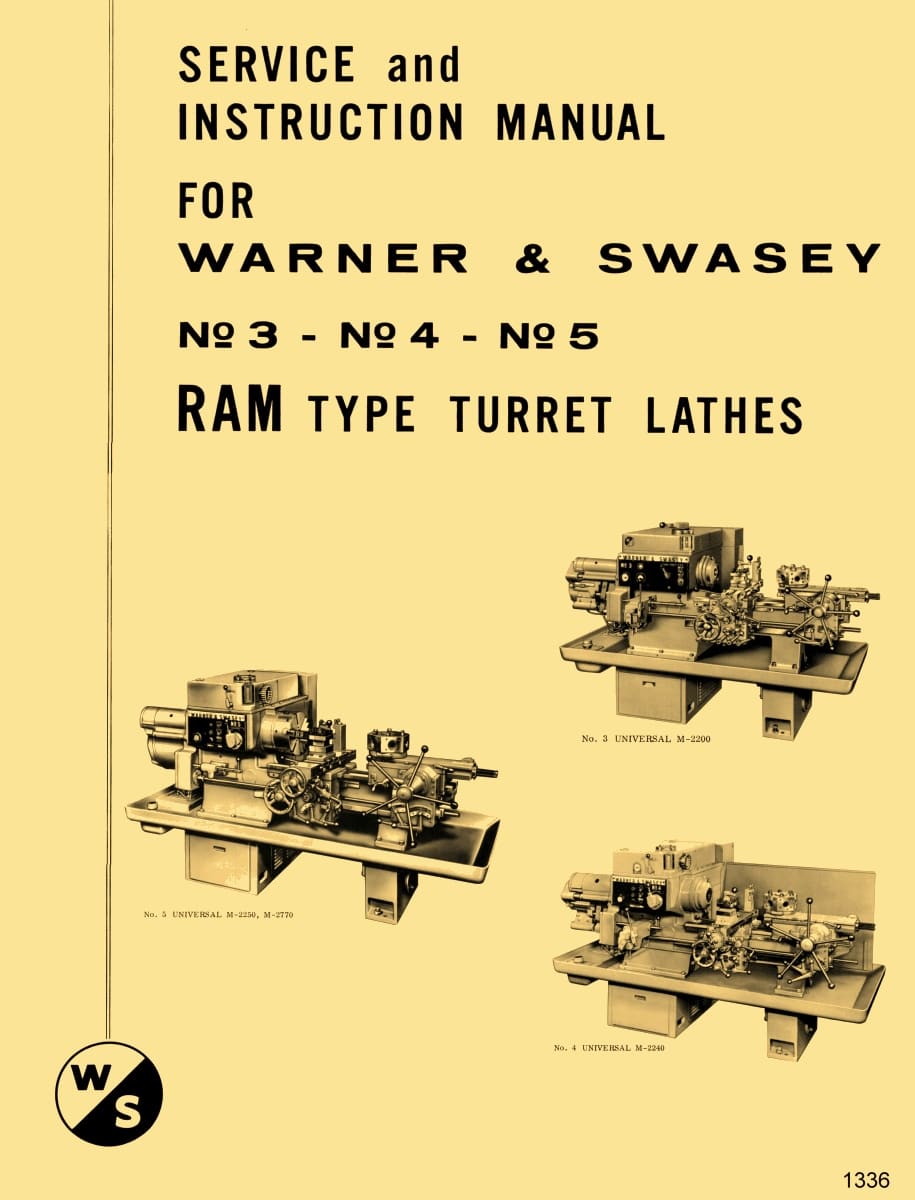

This is a reproduction, not a photocopy, of an original Warner Swasey No. 3, No. 4, No. 5, Geared Head Ram Type Turret Lathe Service and Instructions Manual. This manual covers the newer models which include M-2200, M2240, M-2250, and M-2770.

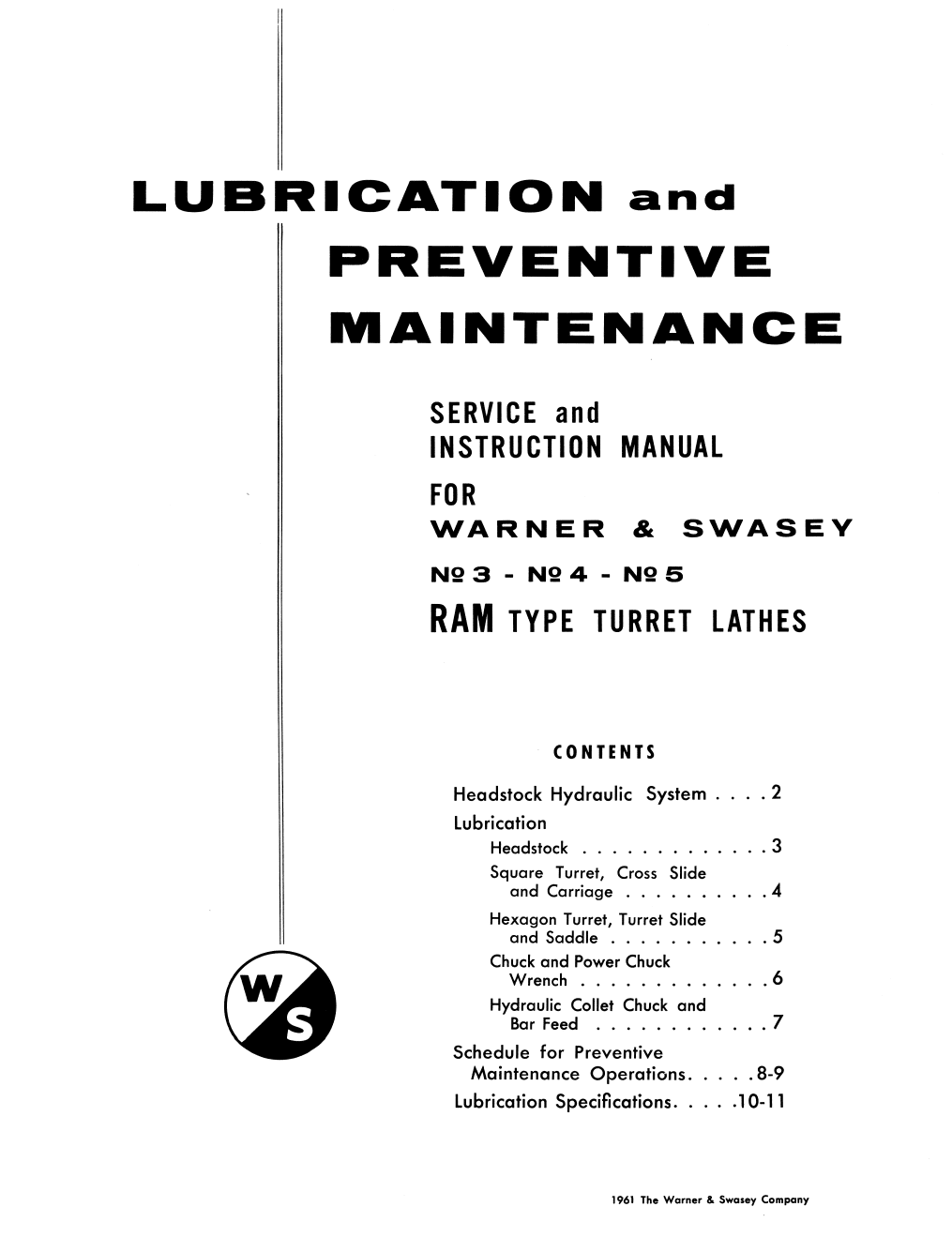

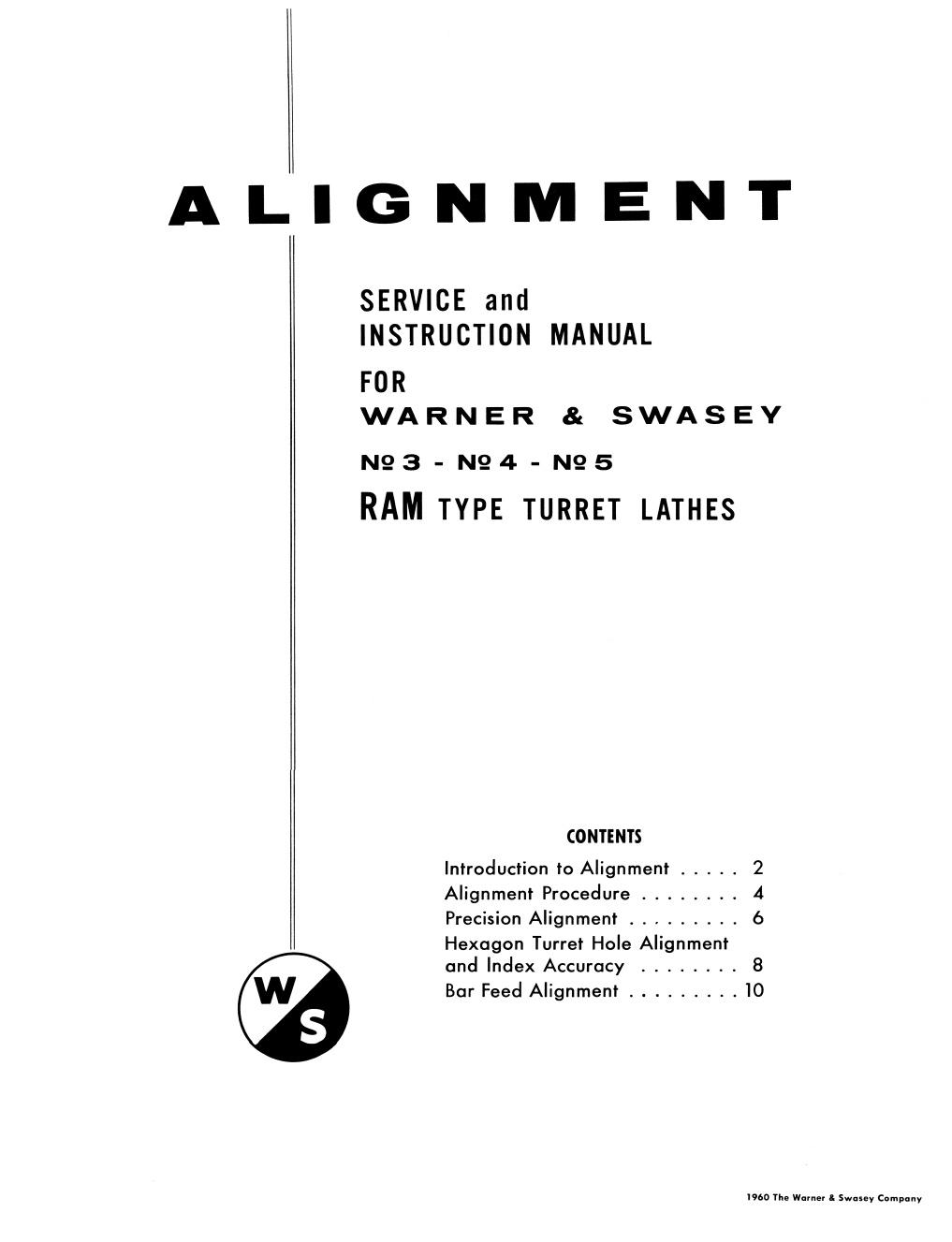

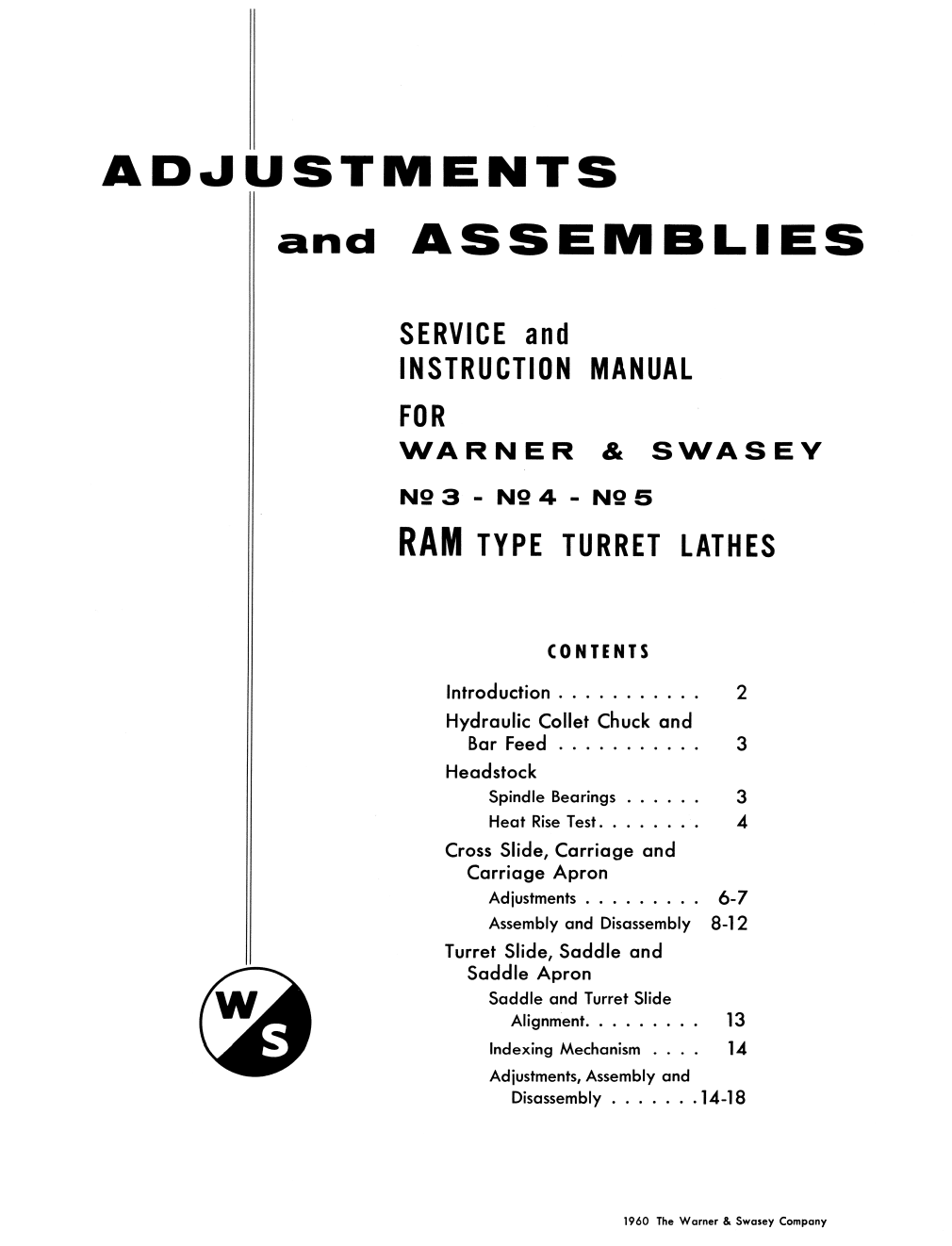

The manual for the Warner Swasey No. 3, No. 4, No. 5 turret lathes covers information about loading and installing the lathe, proper lubricating instructions, and how to align the different parts of the lathe correctly. It also covers how to adjust the clutches, and how to remove the brake lining, pulley shaft, idler shaft, and gear shaft. The manual contains information about adjusting the turret slide and saddle, plus the indexing mechanism.

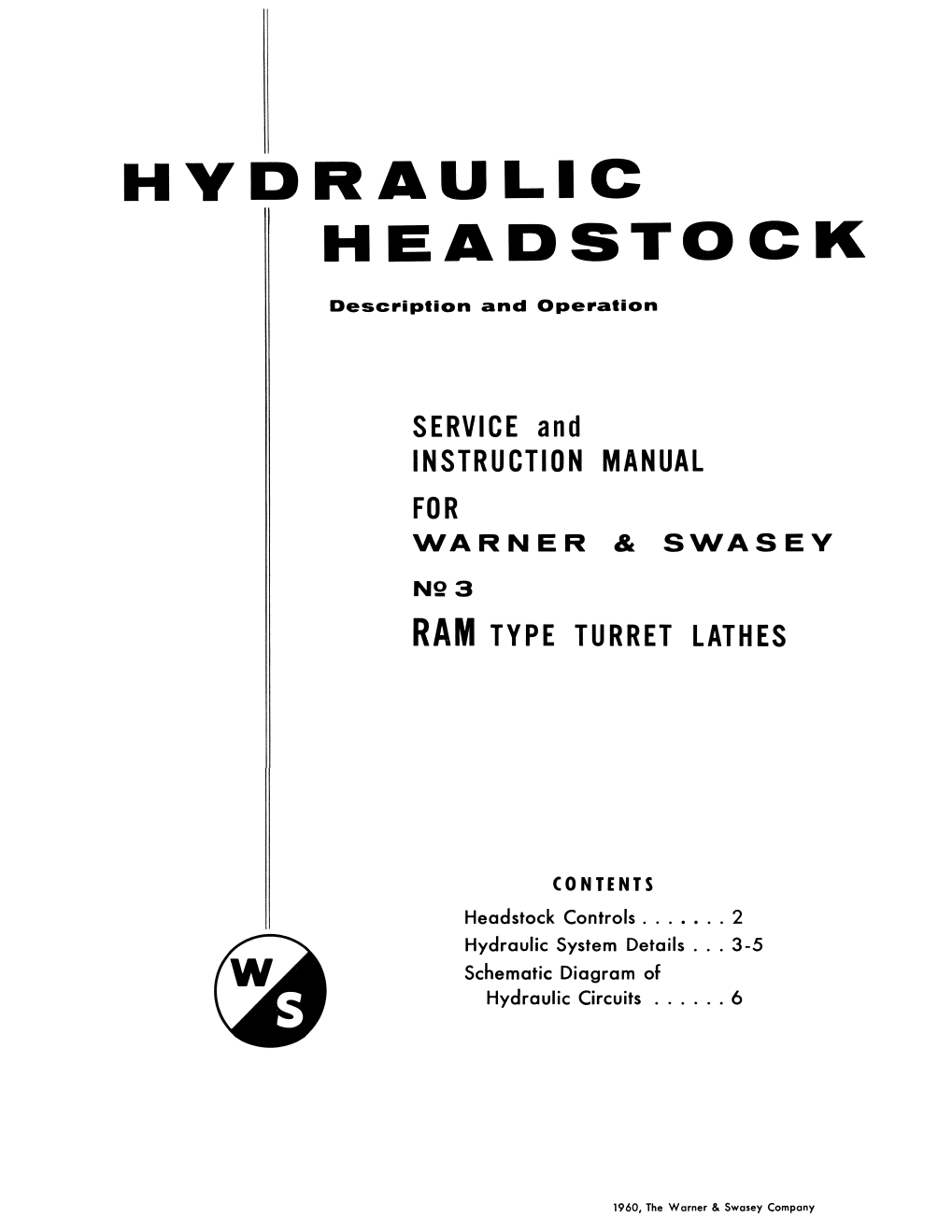

The manual covers the feed train, and the collet and bar feed systems as well. The back has the feeds and speed charts as well as a complete set up explosive/cross sectional view diagrams of all the parts with descriptions. Please read the contents pictured above for more details. This is the best manual you can buy for the Warner Swasey No. 3, No. 4, No. 5 Turret Lathes.
Overview:
I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear.
