Description
Number of Pages: 69

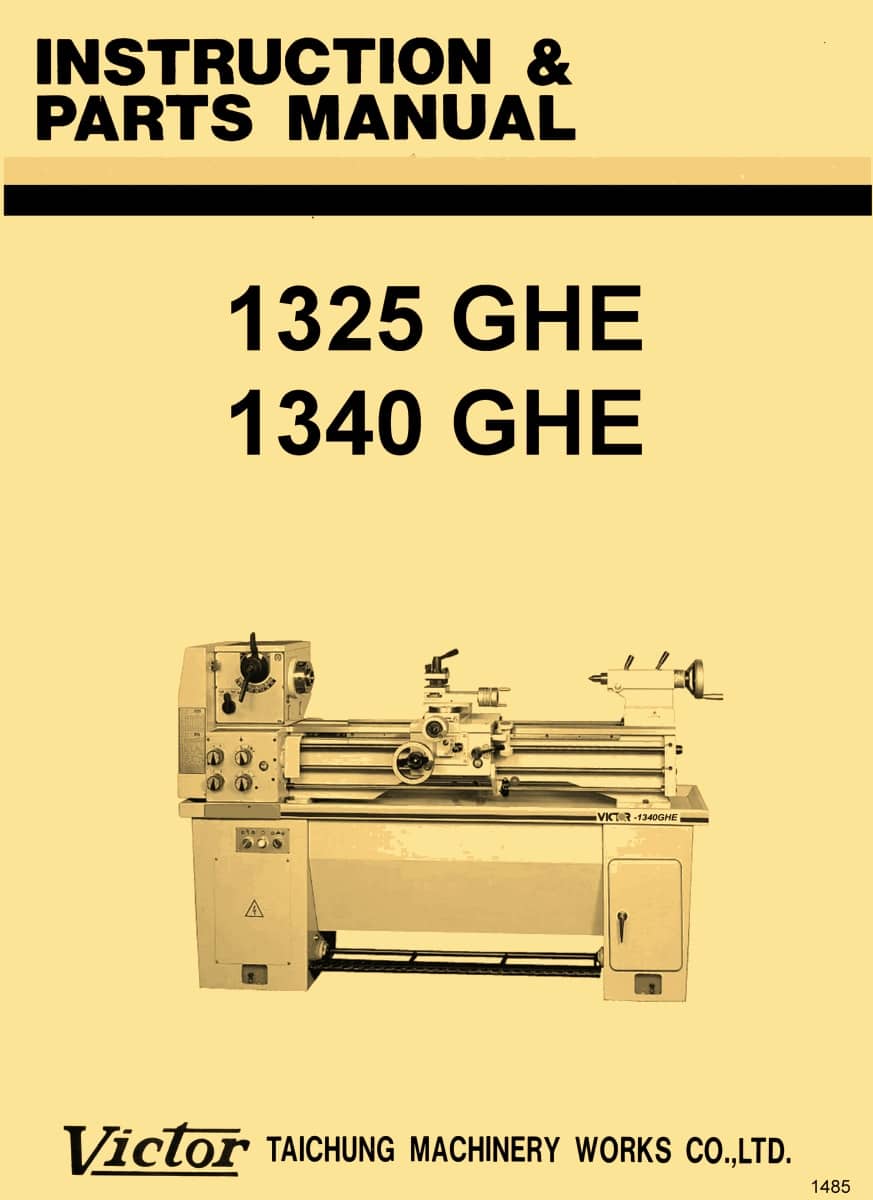

This is a reproduction, not a photocopy, of an original Victor 1325GHE & 1340GHE Metal Lathes Operating Instructions and Parts Manual. These metal lathes were by Taichung Machinery Works Co. ,and were sold under other names when imported, which includes the Supermax, Royal Fortune 1340-GHE, and U.S. INDUSTRIAL USL 1340 BH-KIT 13 x 40 in. Precision Geared Head Engine Lathe. We have two Victor manuals with the same model number. Make sure you check your threading gearbox. That is the main difference. Here is a link to the other manual:
Victor 1325GHE 1340GHE, Supermax 1338, Boss 1340G Metal Lathes Owners & Parts Manual

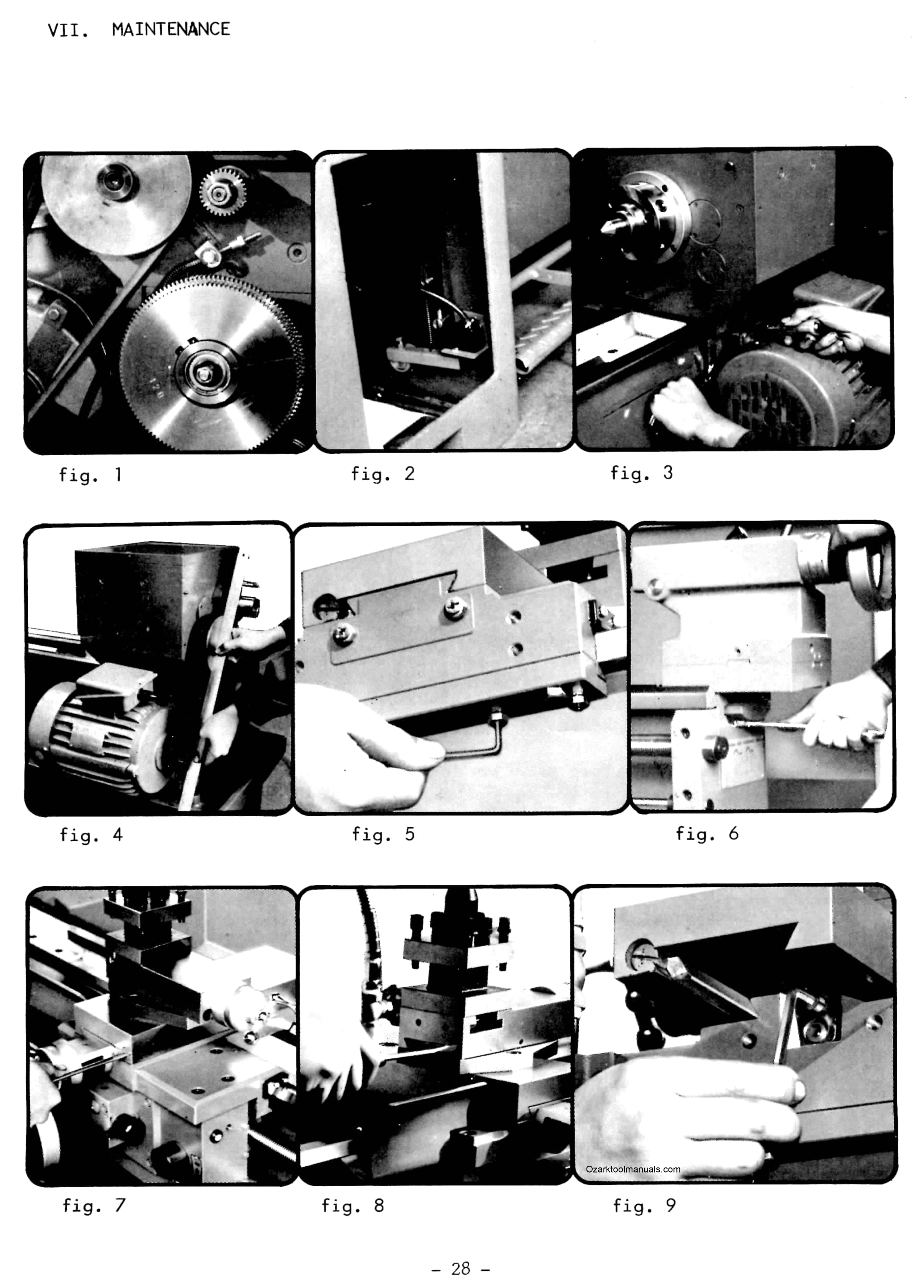

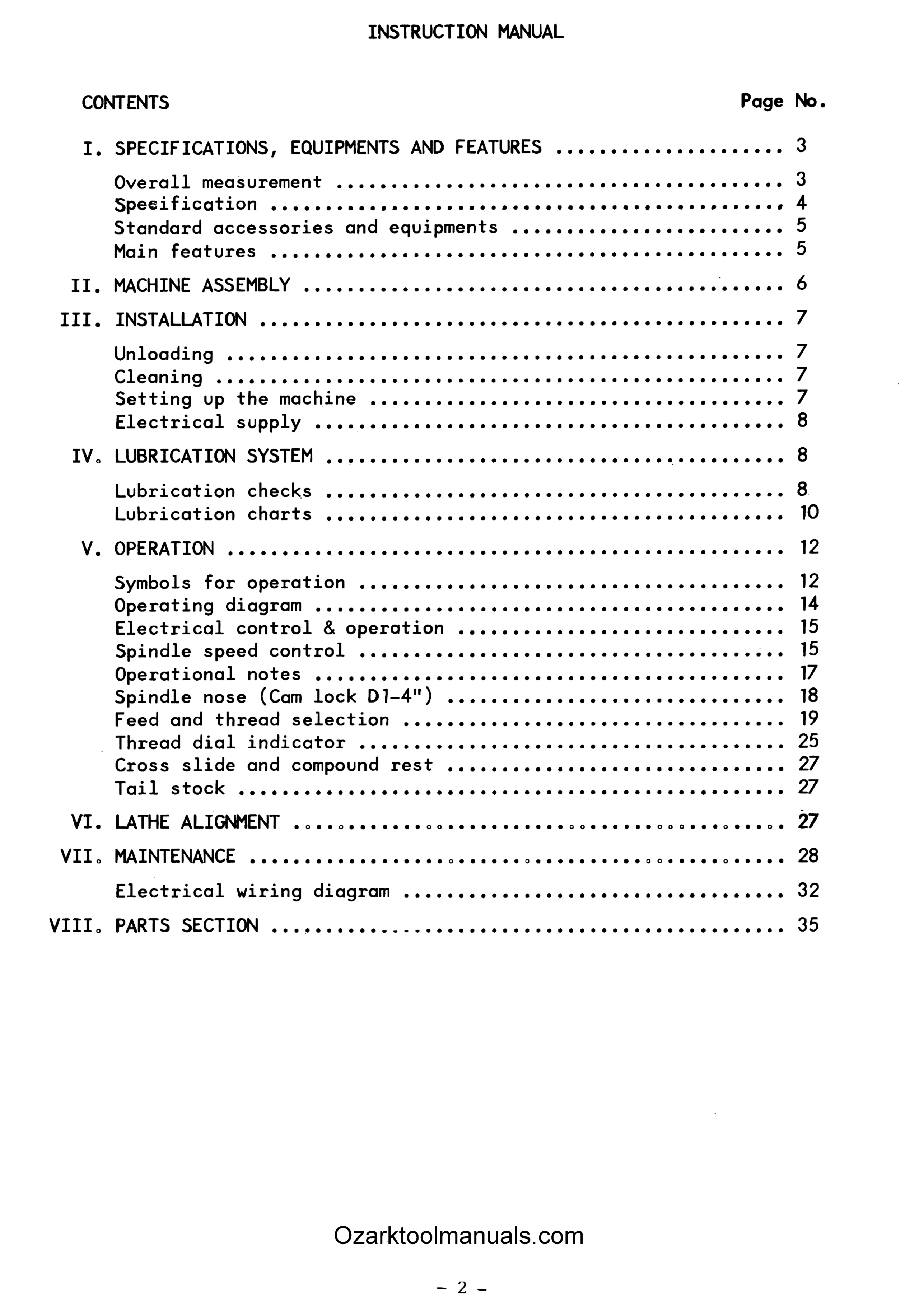

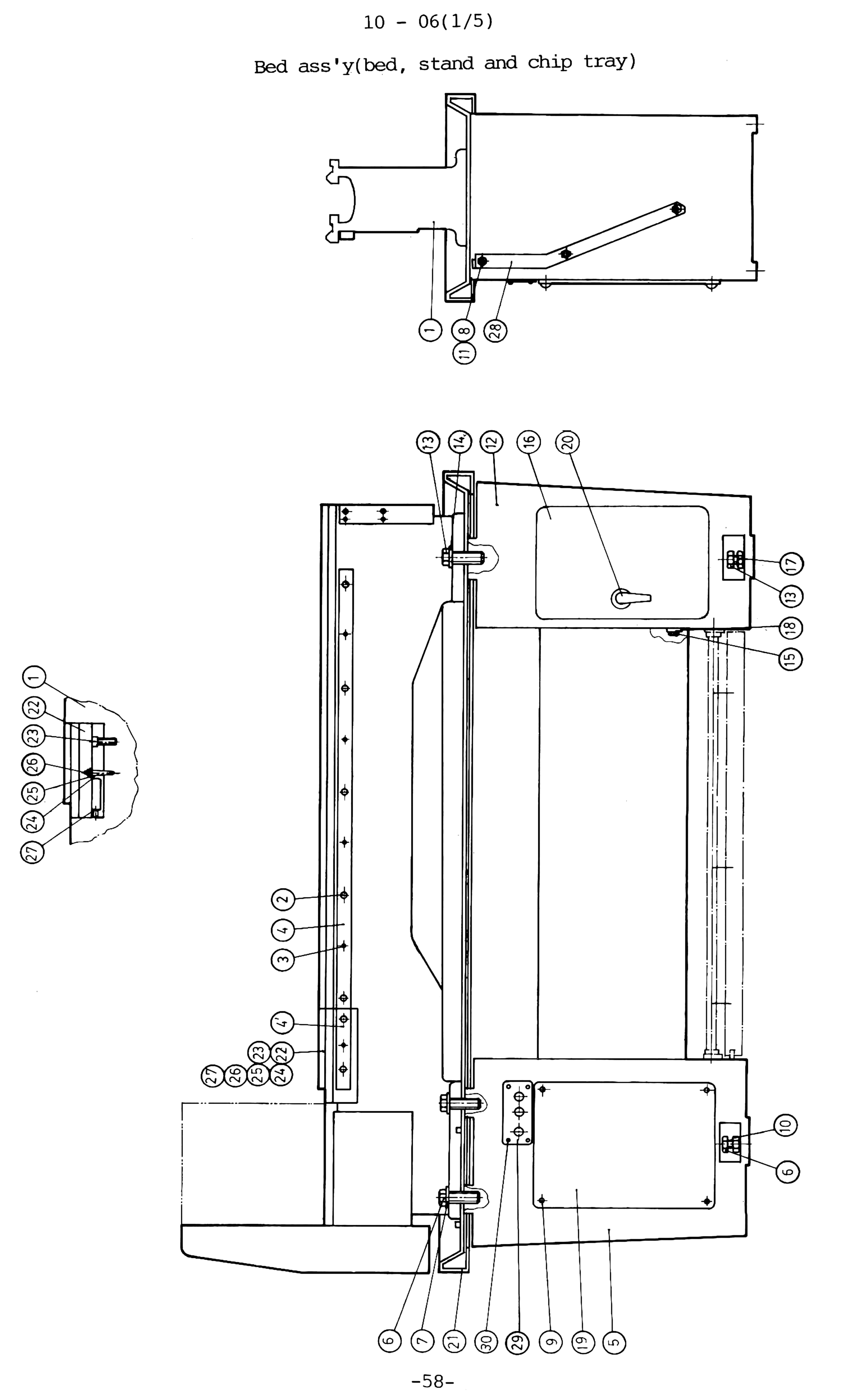

This lathe manual contains information about the lathe specifications, lifting and installation, proper operating instructions, and the feedrate and threading plate charts. The manual also has instructions on performing maintenance on adjustments, and it includes electrical wiring diagrams. There are a complete set of clear cross-sectional view diagrams of all the parts with parts list and descriptions for these Victor metal lathes.
Overview:
I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear, which is better than a low resolution pdf download.
