Description
Number of Pages: 20

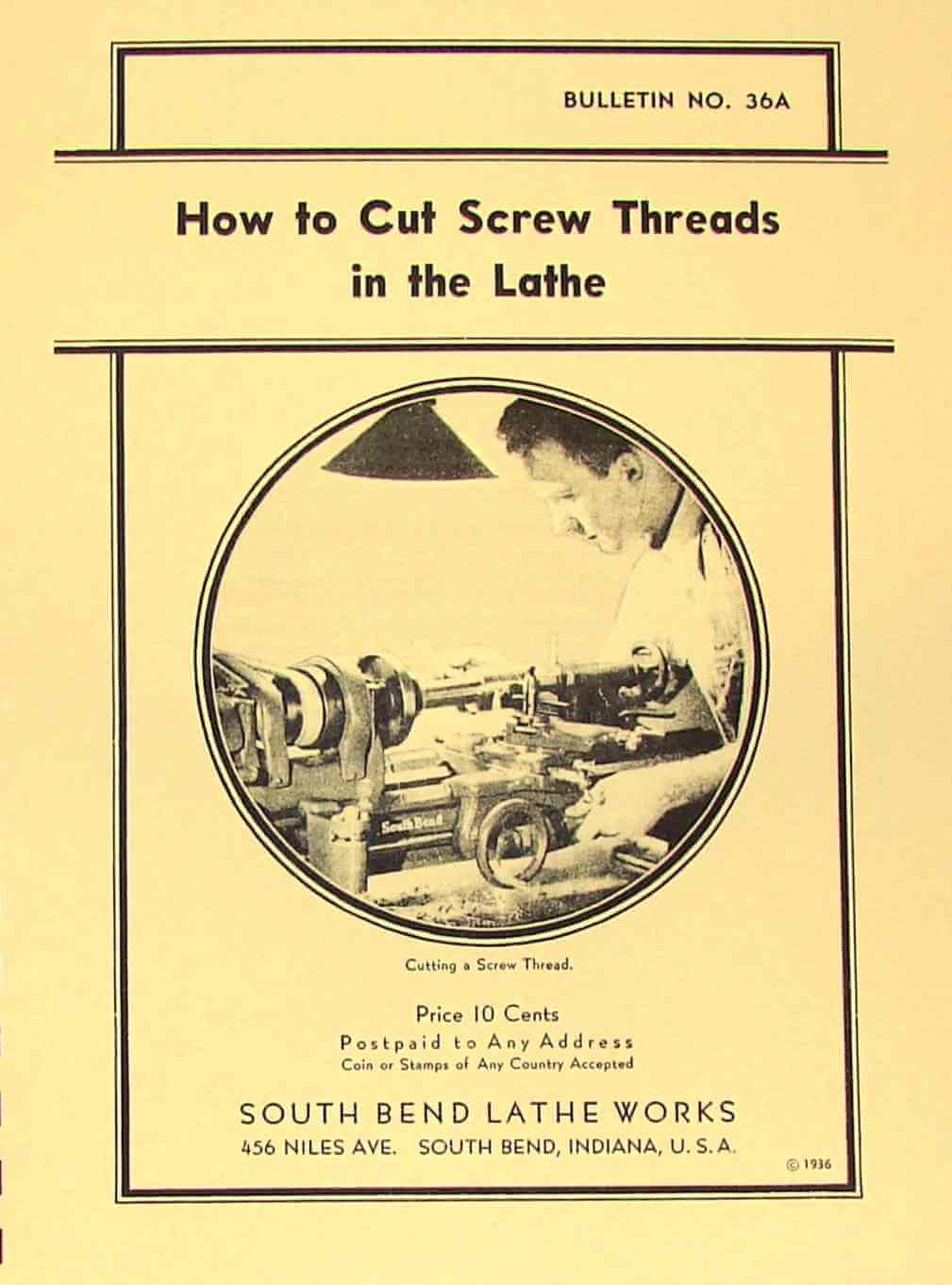

This is a reproduction, not a photocopy, of an original South Bend How to Cut Screw Threads in the Lathe Manual.
Contents:

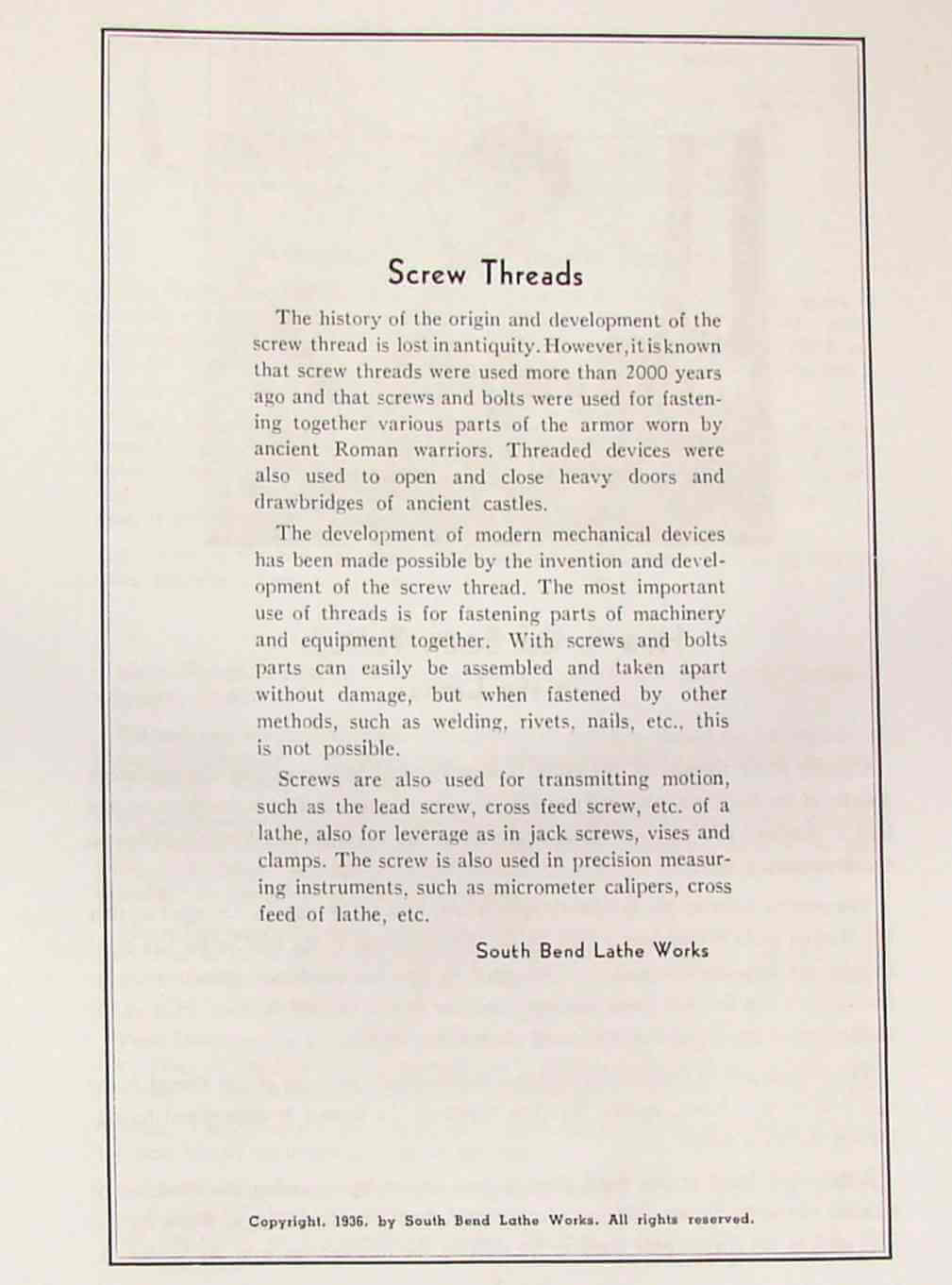

Introduction..................................1&2
Terms...........................................3
Screw Thread Tables.............................4
Gear Setup......................................5
Compound Gearing................................6
Thread Cutting Tools............................7
Tool Positions..................................8
Compound Rest Position..........................9
Thread Cutting Stop............................10
First Cut......................................11
Oiling.........................................12
Thread Dial....................................13
Finishing the End of a Threaded Piece..........14
Cutting Multiple Screw Threads.................15
Cutting Left Hand Screw Threads................15
Metric Screw Threads...........................16
Mounting Work..................................17
Adjusting Levers of Gear Box...................18
Calculate Change Gears.........................19
Using Taps and Dies............................20
Overview:
I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear.
