SMITH & MILLS 12″ 16″ 20″ 25″ 32″ Metal Shapers Operator, Maintenance, Parts Manual

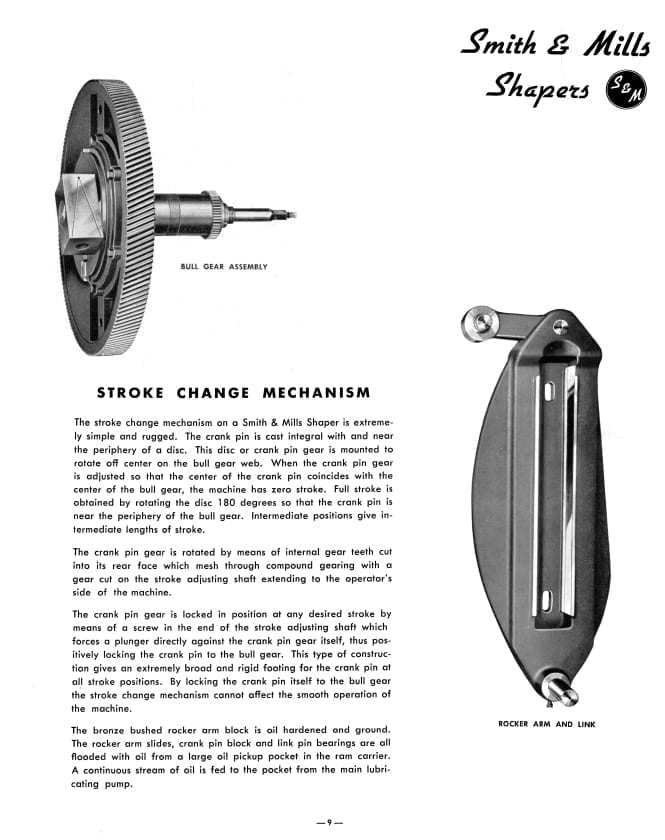

This is a reproduction, not a photocopy, of an original Smith & Mills Co. Metal Shapers Instructions, Operations, Maintenance, and Parts Manual for 12″, 16″, 20″, 25″, and 32″ metal shapers. This manual contains information about the metal shaper specifications, the initial set up, lubrication diagram with the amounts of oil each size of metal shaper takes, proper operating instructions, speed change procedures, and how to make various adjustments. This Smith & Mills manual contains cross-sectional view diagrams of the parts with parts list and descriptions.





I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page,and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear; they are then comb bound with heavy cover pages so they lie flat on the workbench.
