Description
Number of Pages: 76

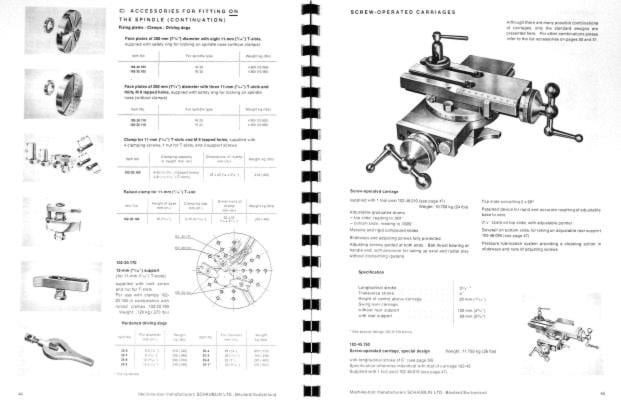

This is a reproduction, not a photocopy, of an original Schaublin No. 102 Series Precision Metal Lathes Technical Specifications Catalog. This catalog is really nice if you have one of these lathes, because it covers all the different options and accessories for this series of lathes. It includes the specifications and images of the different types of tables, cabinets, headstocks, chucks, cross-slides, carriages, tailstocks, turrets, etc… See contents below.
I originally purchased this catalog to get ideas and designs for ornamental turning. These lathes were taken after the design of older ornamental machines, and then modernized. The attachments and set up configurations would be beneficial for anyone doing research in ornamental turning, watch making, jewelry making, or any fine precision work.

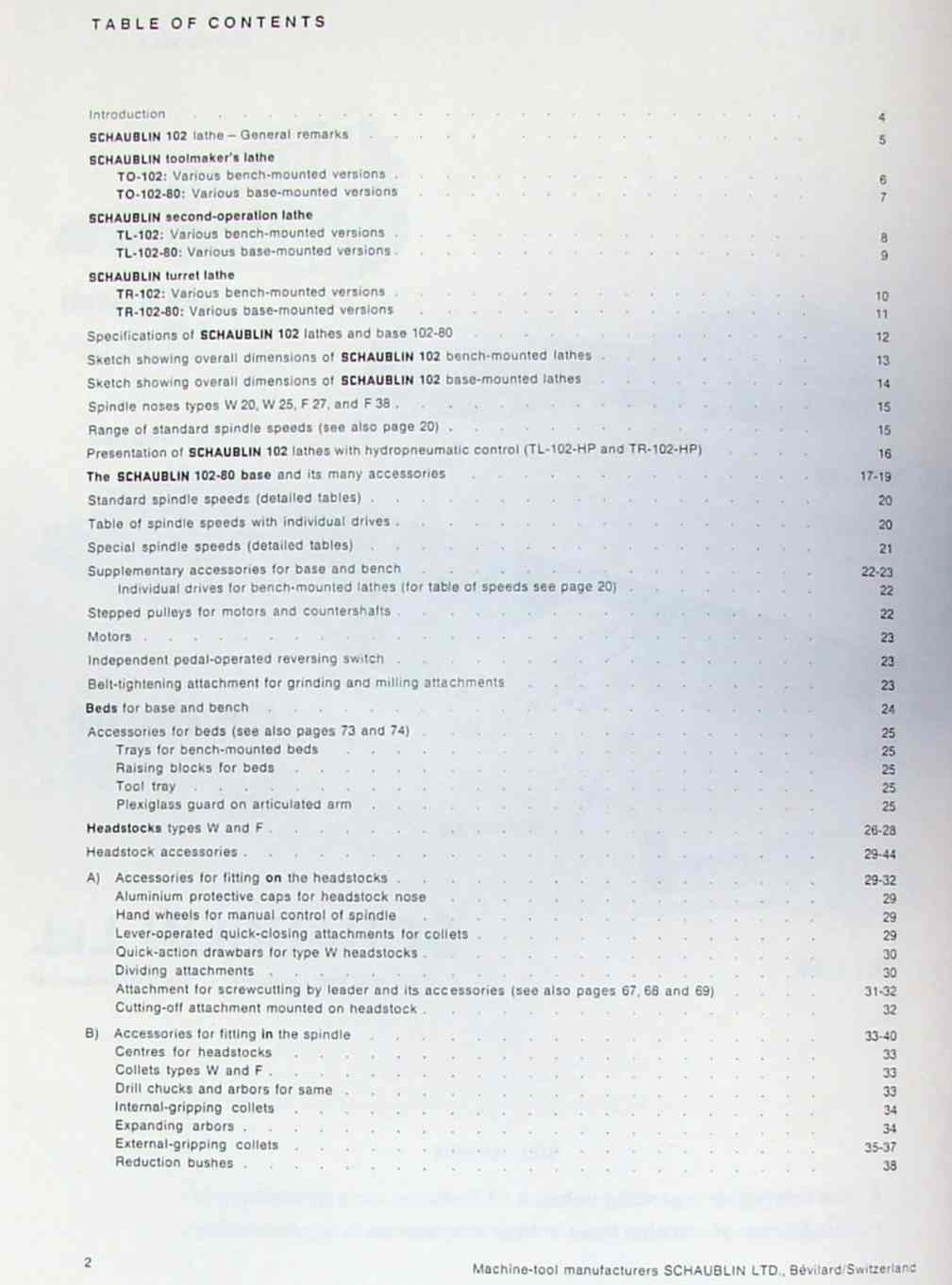

Contents:
Introduction…………………………………………………..3
Introduction ………………………………………………….4
SCHAUBLIN 102 lathe-General remarks………………………………5
SCHAUBLIN toolmaker’s lathe
TO-102: Various bench-mounted versions……………………………6
TO-102-80: Various base-mounted versions………………………….7
SCHAUBLIN second-operation lathe
TL-102: Various bench-mounted versions……………………………8
TL-102-80: Various base-mounted versions………………………….9
SCHAUBLIN turret lathe
TR-1C2: Various bench-mounted versions…………………………..10
TR-102-80: Various base-mounted versions…………………………11
Specifications of SCHAUBLIN 102 lathes and base 102-80…………….12
Sketch dimensions of SCHAUBLIN 102 bench-mounted lathes……………13
Sketch dimensions of SCHAUBLIN 102 base-mounted lathes…………….14
Spindle noses types W 20, W 25, F 27, and F 38……………………15
Range of standard spindle speeds (see also page 20)……………….15
Presentation of SCHAUBLIN 102 lathes with hydropneumatic control……16
The SCHAUBLIN 102-80 base and its many accessories……………..17-19
Standard spindle speeds (detailed tables)………………………..20
Table of spindle speeds with individual drives……………………20
Special spindle speeds (detailed tables)…………………………21
Supplementary accessories for base and bench…………………..22-23
Individual drives for bench-mounted lathes……………………….22
Stepped pulleys for motors and countershafts……………………..22

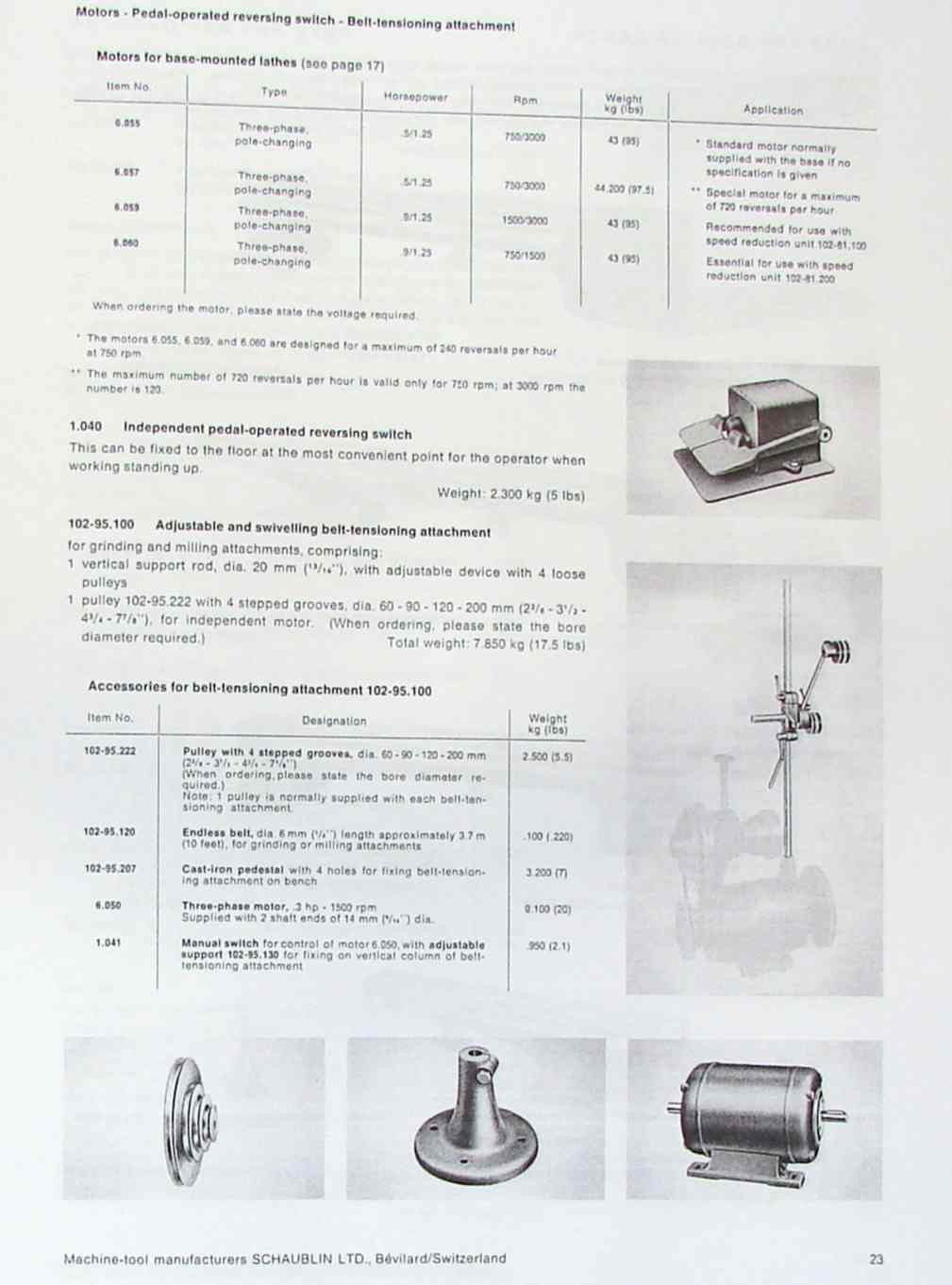

Motors……………………………………………………….23
Independent pedal-operated reversing switch………………………23
Belt-tightening attachment for grinding and milling attachments…….23
Beds for base and bench ……………………………………….24
Accessories for beds (see also pages 73 and 74)…………………..25
Trays for bench-mounted beds……………………………………25
Raising blocks for beds………………………………………..25
Tool tray…………………………………………………….25
Plexiglass guard on articulated arm……………………………..25

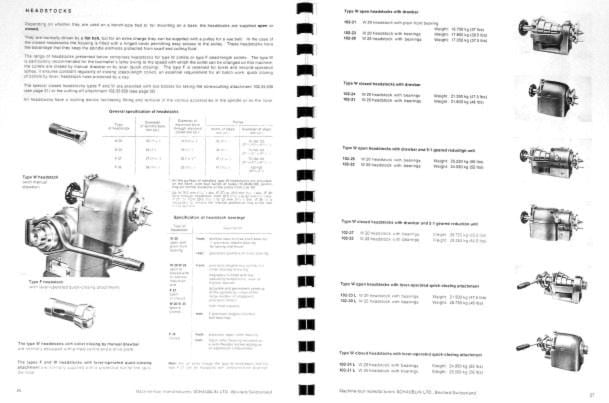

Headstocks types W and F ……………………………………26-28
Headstock accessories……………………………………….29-44
A) Accessories for fitting on the headstocks…………………..29-32
Aluminium protective caps for headstock nose……………………..29
Hand wheels for manual control of spindle ……………………….29
Lever-operated quick-closing attachments for collets………………29
Quick-action drawbars for type W headstocks ……………………..30
Dividing attachments…………………………………………..30

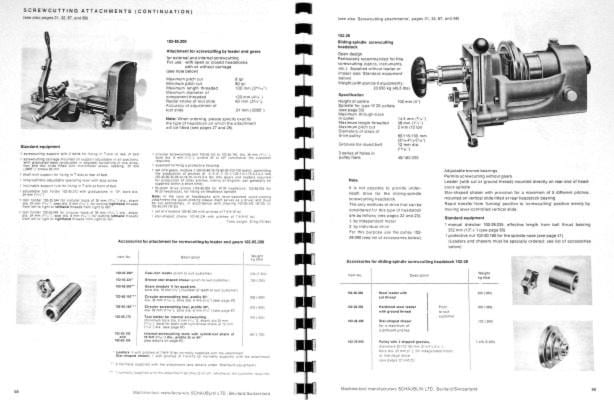

Attachment for screwcutting by leader and its accessories……….31-32
Cutting-off attachment mounted on headstock………………………32
B) Accessories for fitting in the spindle……………………..33-40
Centres for headstocks…………………………………………33
Collets types W and F………………………………………….33
Drill chucks and arbors for same………………………………..33
Internal-gripping collets………………………………………34
Expanding arbors………………………………………………34
External-gripping collets……………………………………35-37
Reduction bushes ……………………………………………..38
Centre-holding bushes………………………………………….38
Cutter-holding bushes………………………………………….38
Blank arbors………………………………………………….38
Cutter arbors…………………………………………………38
6-jaw chucks on type W arbors ………………………………….39
Adjustable stops with extractor………………………………39-40
Adjustable stops………………………………………………40
C) Accessories for fitting on the spindle……………………..41-44
Protective nuts for spindle nose………………………………..41
Blank sleeves ………………………………………………..41
Drive plates …………………………………………………41
Plain face plates……………………………………………..41
Chuck adapters………………………………………………..41
3- and 4-jaw chucks…………………………………………41-42
Magnetic chucks……………………………………………….42
Pneumatic chucks………………………………………………43
Pneumatic cylinders……………………………………………43
Pneumatic closing attachments for type F collets………………….43
Fixing plates…………………………………………………44
Clamps ………………………………………………………44
Driving dogs …………………………………………………44
Screw-operated carriages ………………………………………45
Lever-operated carriages ………………………………………46
Accessories for screw- or lever-operated carriages……………..47-55
Tool holders………………………………………………….47
Adjustable rear support………………………………………..47
Quick-clamping tool holders………………………………….48-49
Sets of tools…………………………………………………50
Special top slide……………………………………………..50
Adjusting screws for slides…………………………………….50
Levers and stops for slides ……………………………………51
Milling attachment and its accessories………………………..52-53
External- and internal-grinding attachments……………………54-55
Slotting and milling attachment ………………………………..55

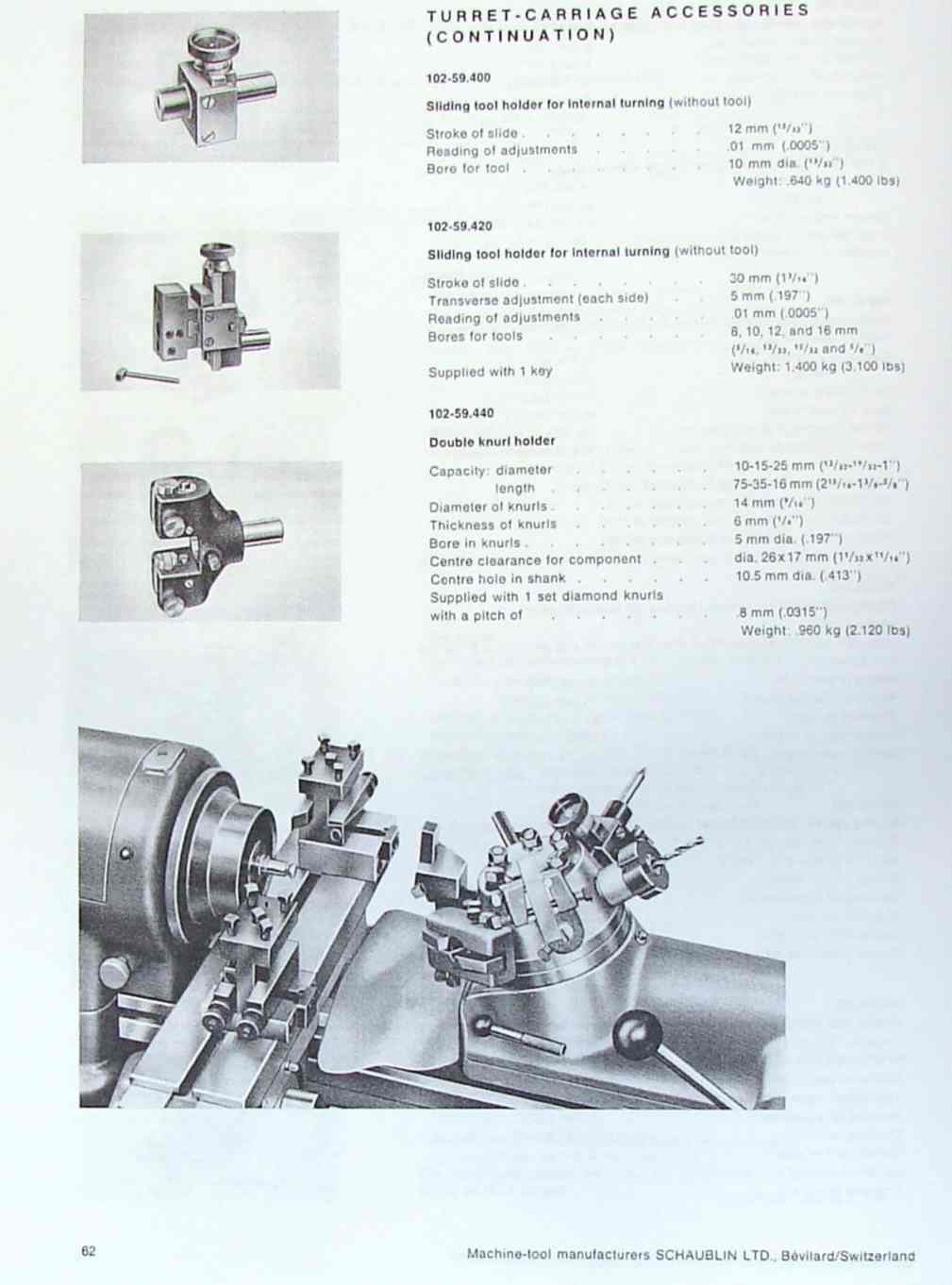

Turret carriage and its accessories…………………………..56-62
Cutting-off carriages …………………………………………63
Accessories for cutting-off carriages …………………………..64

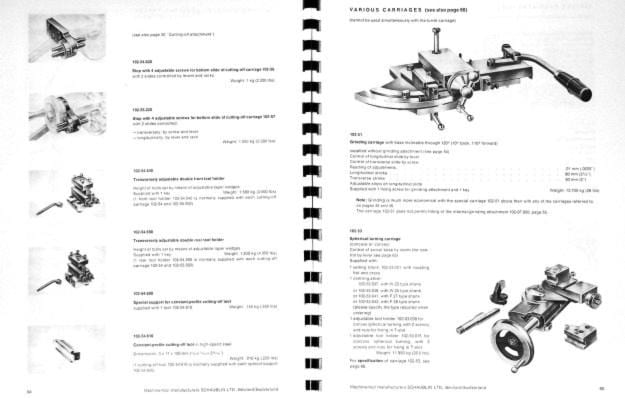

Various carriages ………………………………………….65-66
Grinding carriage……………………………………………..65
Spherical-turning and -grinding carriage………………………65-66
Screwcutting attachments and their accessories…………………67-68
Sliding-spindle screwcutting headstock and its accessories…………69
Tailstocks……………………………………………………70
-Accessories for tailstocks (No. 2 Morse taper shank)…………..71-72
-Accessories for drilling tailstocks (W 20 or W 25 shank)………….73
Accessories for beds (see also page 25)……………………….73-74
Handrest……………………………………………………..73
Parallel vice…………………………………………………73
Steadies……………………………………………………..74
Various accessories …………………………………………..74
Bar feeds…………………………………………………….74
SCHAUBLIN manufacturing programme……………………………….75
Overview:
I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear.
