Description
Number of Pages: 12

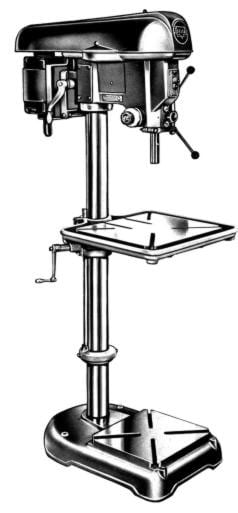

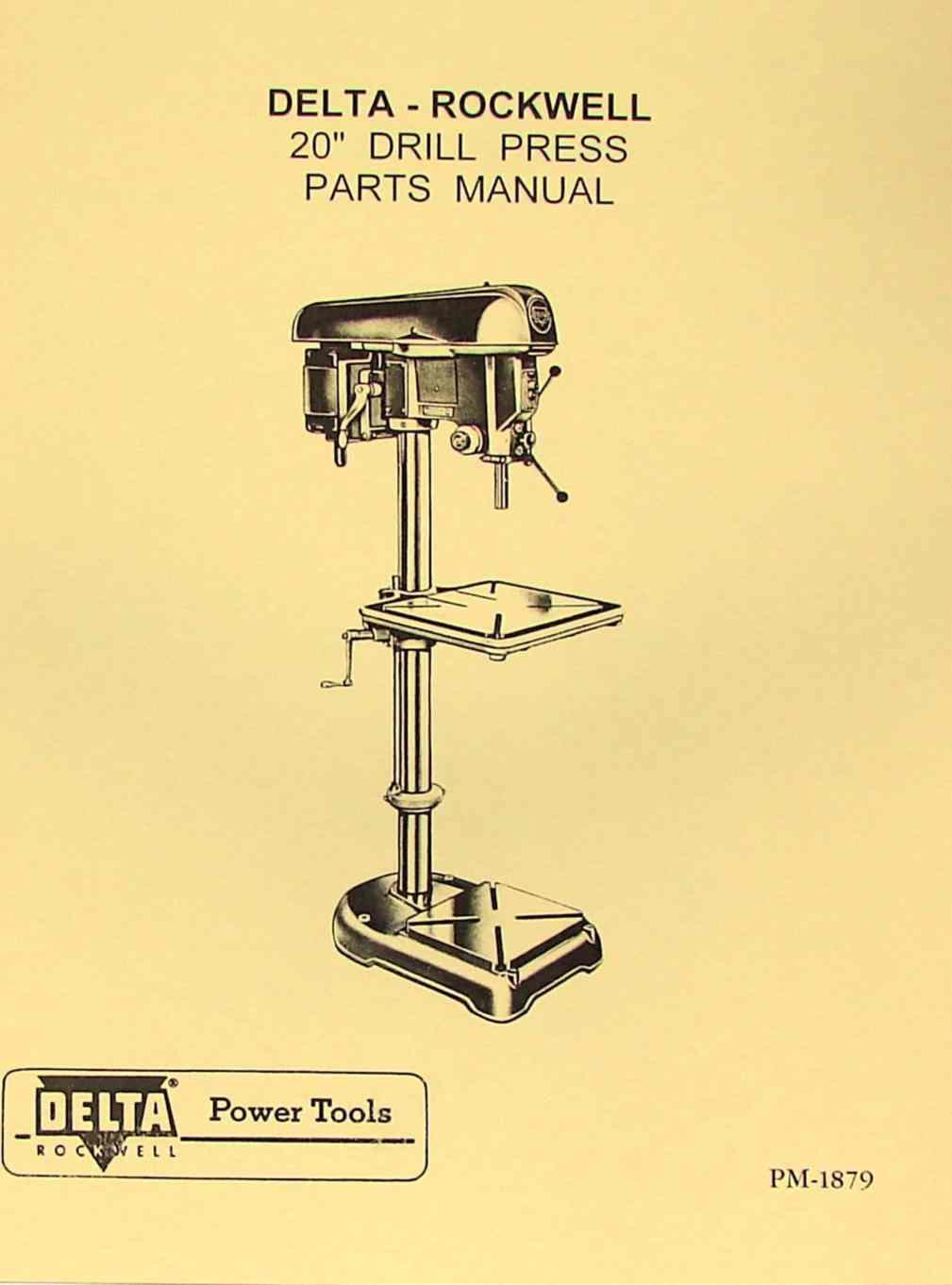

This is a reproduction, not a photocopy, of an original Delta-Rockwell 20″ Drill Press Parts Manual. This drill press has DP1171 casting for the drill press head. This parts manual covers a lot of the accessories that are not normally covered in a standard parts manual. This is very important, because many of the Rockwell 20″ drill press models have several accessories on them because they were used in production industries like the powerfeed, mortising attachment, etc… This manual contains explosive view diagrams of all the parts with parts descriptions..
PDF Download is Available
The manual has the option for either a PDF Download or a quality Printed copy with card stock covers and a comb binding. After purchase an email will be sent with link to download the PDF. The PDF will not be password protected, but your contact information will be watermarked at the bottom of the pages.
|
I also highly recommend the “DELTA Getting the Most Out of Your Drill Press Manual“, which we carry. It covers a lot of different set ups and unique uses for these drill presses. |
Contents: Hand-Feed Head, Belt Guard, and Motor Pulley.........1,2 Hand-Feed Head.........................................3 Motor Plate............................................4 Power-Feed Head, Belt Guard, and Motor Pulley........5,6 Power-Feed Head......................................7,8 Power-Feed Components..................................9 Elevating Unit.........................................9 Mortising Attachment and Hold-Down....................10 Tilting Table.........................................10 Column and Cradle.....................................11 Miscellaneous Accessories.............................12
