Description
Number of Pages: 19

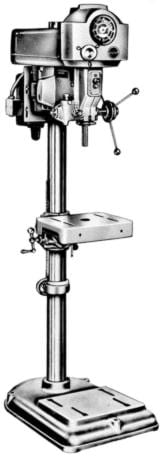

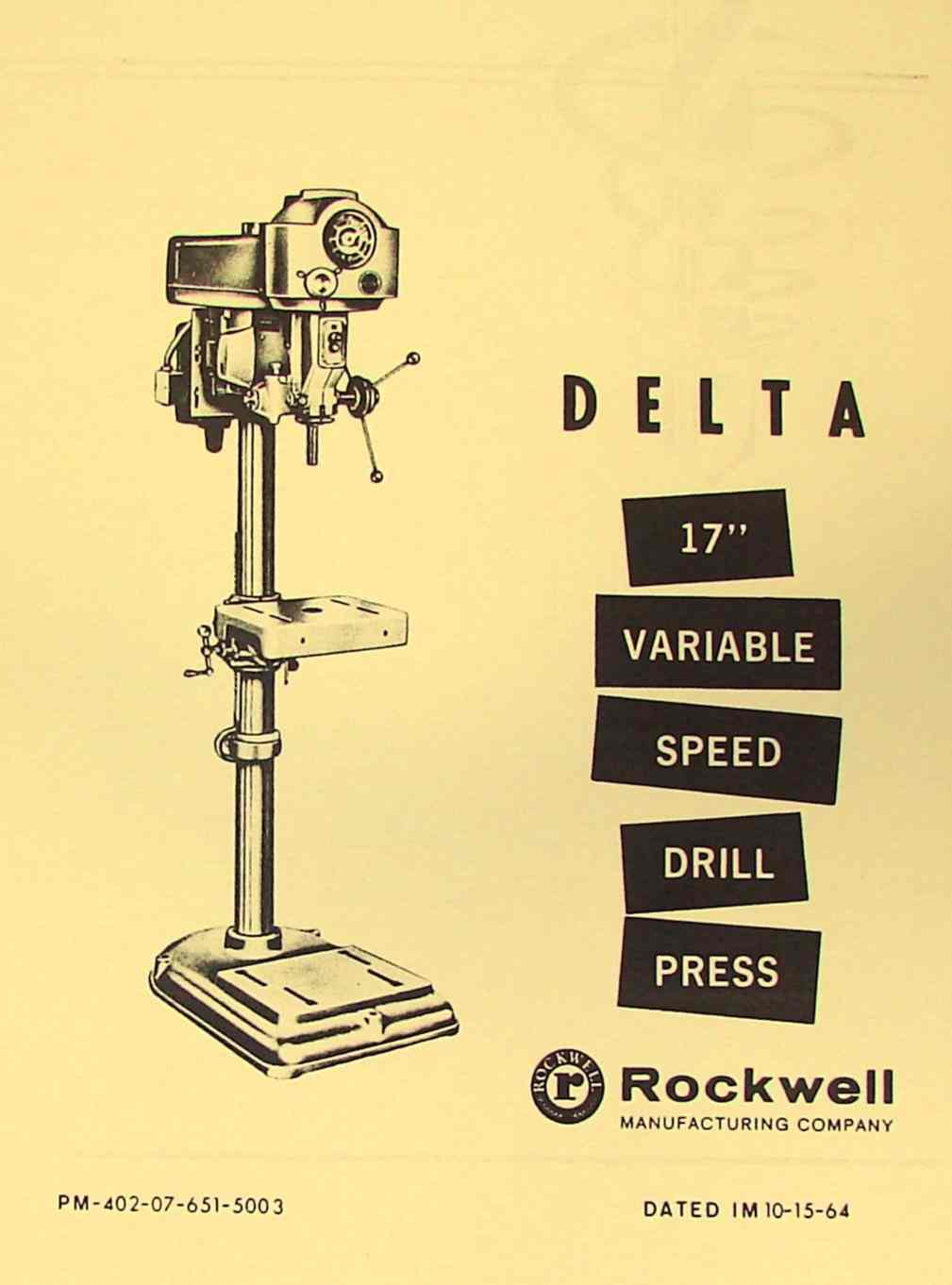

This is a reproduction, not a photocopy, of a Rockwell 17″ Variable Speed Drill Press Instructions and Parts Manual. This manual contains information on setup, lubrication, maintenance, adjustments, and controls as well as a complete parts list and exploded view diagrams. Please read contents below.
PDF Download is Available
The manual has the option for either a PDF Download or a quality Printed copy with card stock covers and a comb binding. After purchase an email will be sent with link to download the PDF. The PDF will not be password protected, but your contact information will be watermarked at the bottom of the pages.
|
I also highly recommend the “DELTA Getting the Most Out of Your Drill Press Manual“, which we carry. It covers a lot of different set ups and unique uses for these drill presses. |
Contents:

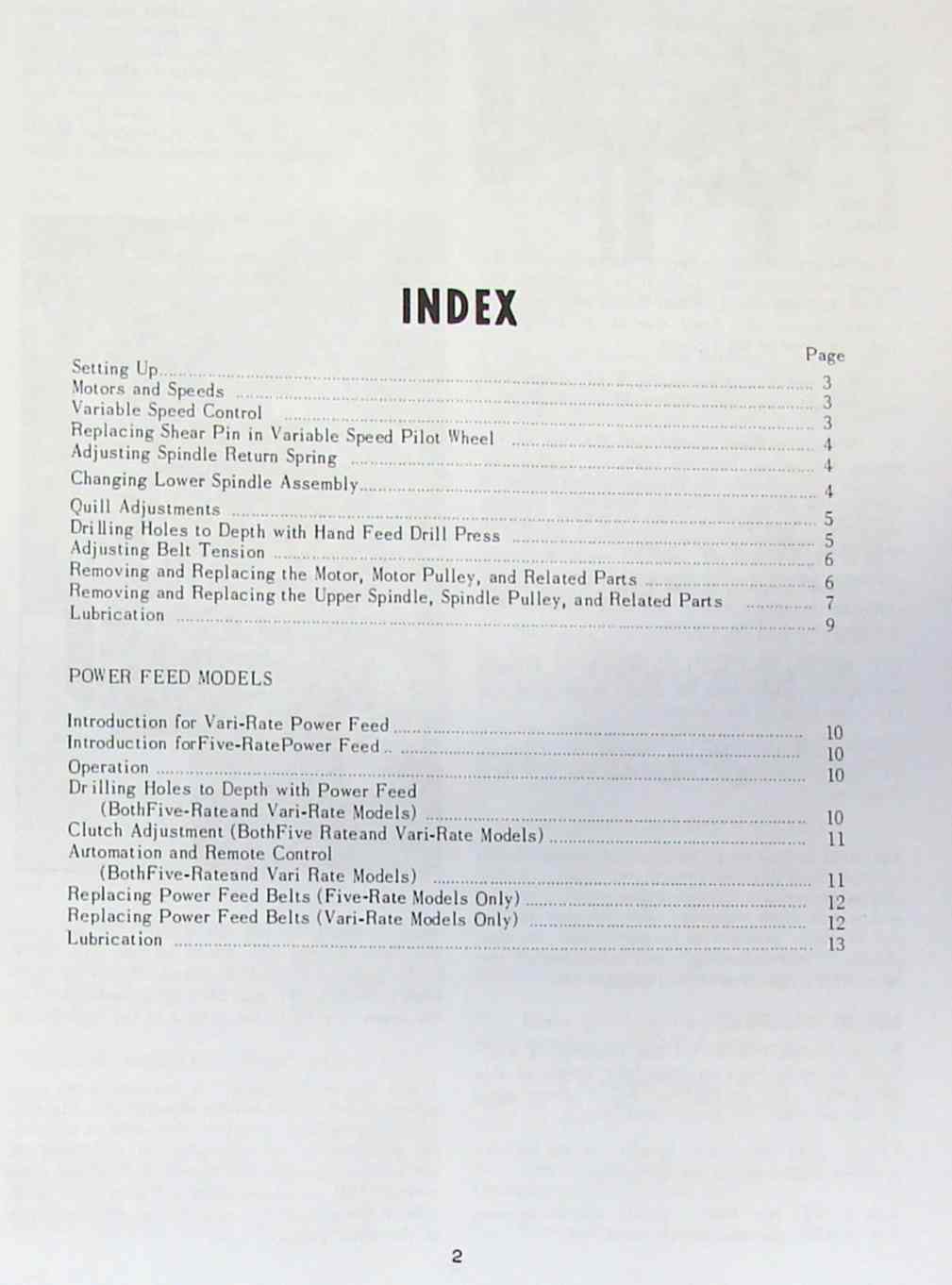

Setting Up......................................................................3 Motors and Speeds ..............................................................3 Variable Speed Control .........................................................3 Replacing Shear Pin in Variable Speed Pilot Wheel ..............................4 Adjusting Spindle Return Spring ................................................4 Changing Lower Spindle Assembly.................................................4 Ouill Adjustments ..............................................................5 Drilling Holes to Depth with Hand Feed Drill Press .............................5 Adjusting Belt Tension .........................................................6 Removing and Replacing the Motor, Motor Pulley, and Related Parts ..............6 Removing and Replacing the Upper Spindle, Spindle Pulley, and Related Parts ....7 Lubrication ....................................................................9 POWER FEED MODELS Introduction for Vari-Rate Power Feed..........................................10 Introduction for Five-Rate Power Feed..........................................10 Operation .....................................................................10 Drilling Holes to Depth with Power Feed (Both Five-Rate and Vari-Rate Models) .........................................10 Clutch Adjustment (Both Five Rate and Vari-Rate Models)..........................................11 Automation and Remote Control (Both Five-Rate and Vari Rate Models) .........................................11 Replacing Power Feed Belts (Five-Rate Models Only)........................................................12 Replacing Power Feed Belts (Vari-Rate Models Only) .......................................................12 Lubrication ...................................................................13
Overview
I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear.
