Description
Number of Pages: 44

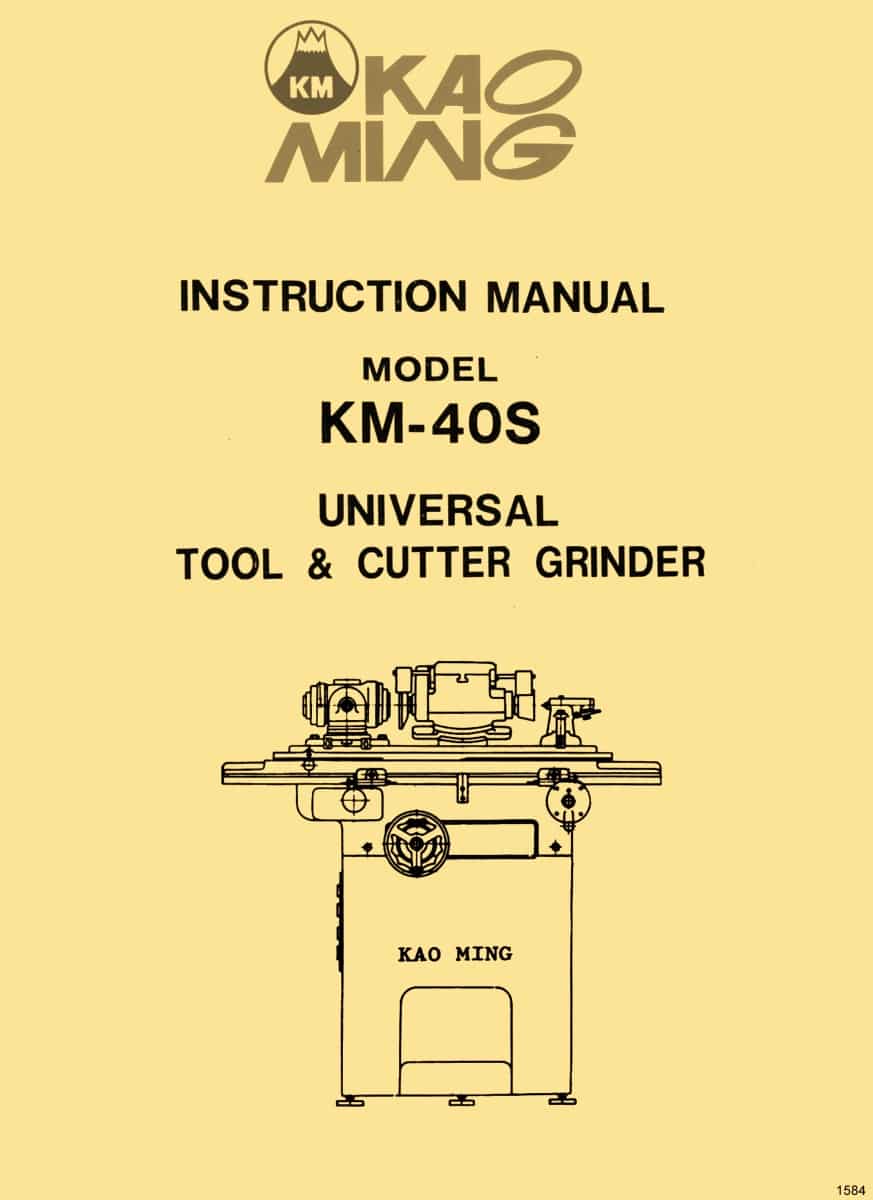

This is a reproduction, not a photocopy, of an original Kao Ming/Supermax KM-40S Tool & Cutter Grinder Operating Instructions and Parts Manual. This tool & cutter grinder was manufactured by Kao Ming ,and sold under other names when imported.

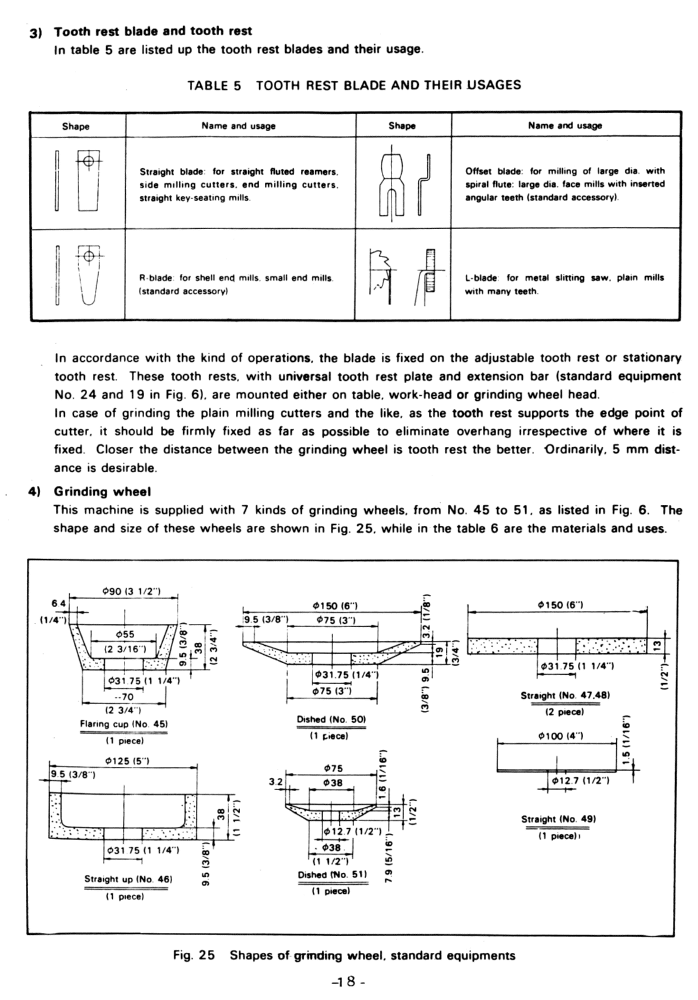

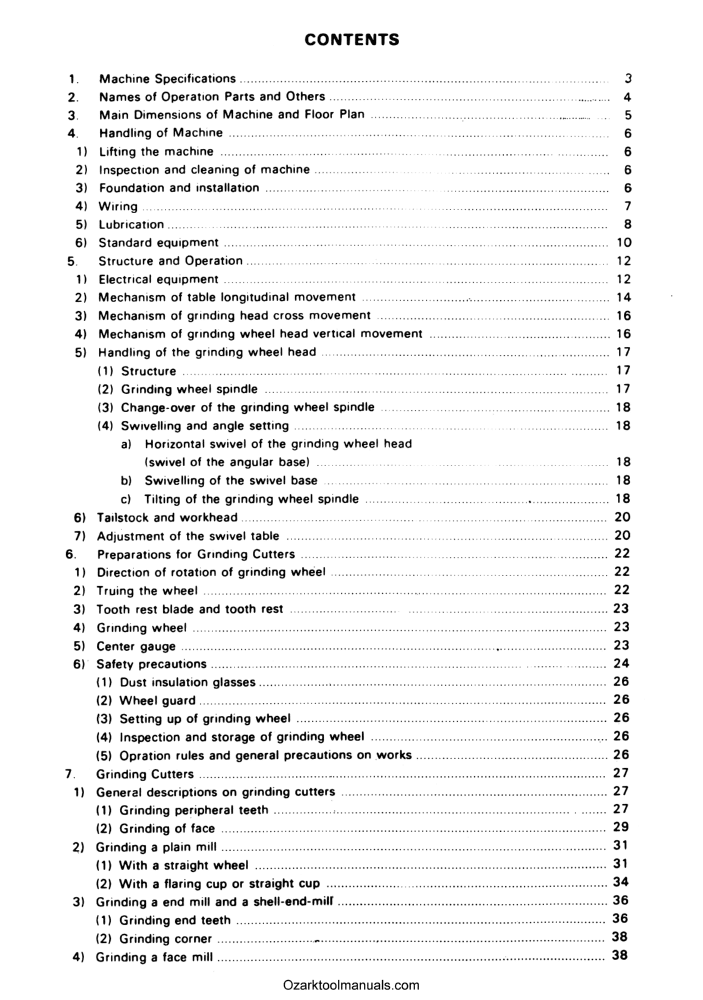

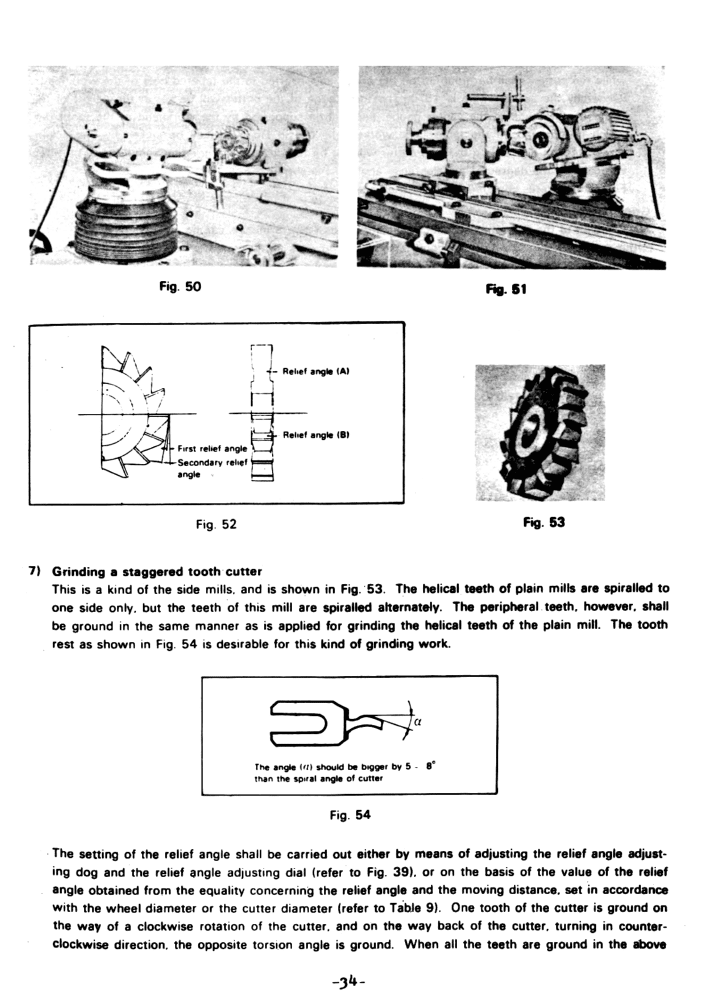

This tool & cutter grinder manual contains information about the grinder specifications, lifting and installation, proper operating instructions. The manual also has instructions on performing maintenance on adjustments, and it includes a lubrication chart with proper instructions. The operating instructions appear to be quite detailed for an Asian manual from this period. There is a lot of information on how to setup to grind different tools from endmills, helical grinding, saws, taps, reamers, etc… The only thing that seems bad about this manual are the pictures, which is typical from Asian manuals during this time. We did do a lot of work on them, and redrew lines and things. There is only so much you can do with the originals. I’ve included a picture as an example.
Overview:
I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear, and are better than low resolution pdf downloads.
