Description
Number of Pages: 27

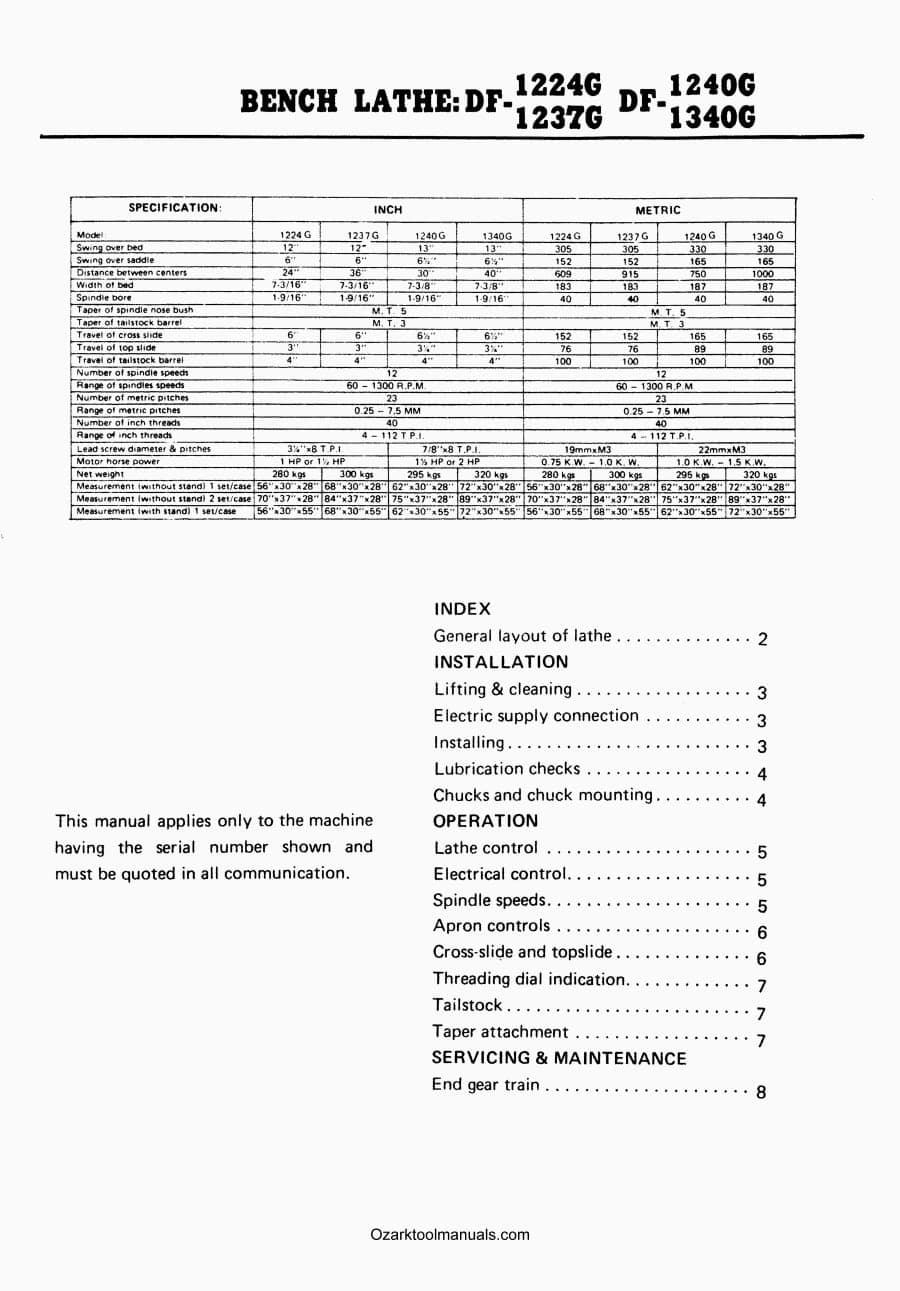

This is a reproduction of an original Asian 12″ x 24″, 12″ x 37″, 12″ x 40″, and 13″ x 40″ Metal Lathe Operator Instructions and Parts Manual. These metal lathes were sold under many different brand names and models, like Busy Bee, Rex-Cut, Enco, Shenwai, Grizzly, etc… This lathe manual contains lubrication instructions, operating instructions, maintenance and adjustments, and threading diagrams. The manual also has explosive view diagrams and parts list with descriptions for these metal lathes.
Known model numbers covered by this manual:
Enco 92020
Shenwai SW-350B
Shenwai SW-900B
REX-CUT:
DF-1224G
DF-1237G
DF-1240G
DF-1340G
|
The manual above may help you operate and maintain your metal lathe. If you would like to learn more about metal lathework techniques, the names and proper uses of different lathe tools, and other lathe operations, I would recommend clicking on the pictures of these two books here. We also have a complete series of different machinist books on sharpening, gearmaking, milling machines, and more here: Workshop Machinist Series |
|
|
|---|
Overview:
I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear, and are easier to read than a pdf download.
