Description
Number of Pages: 40

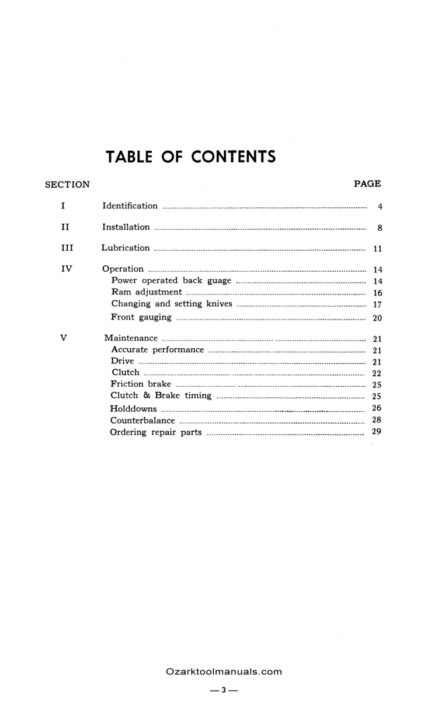

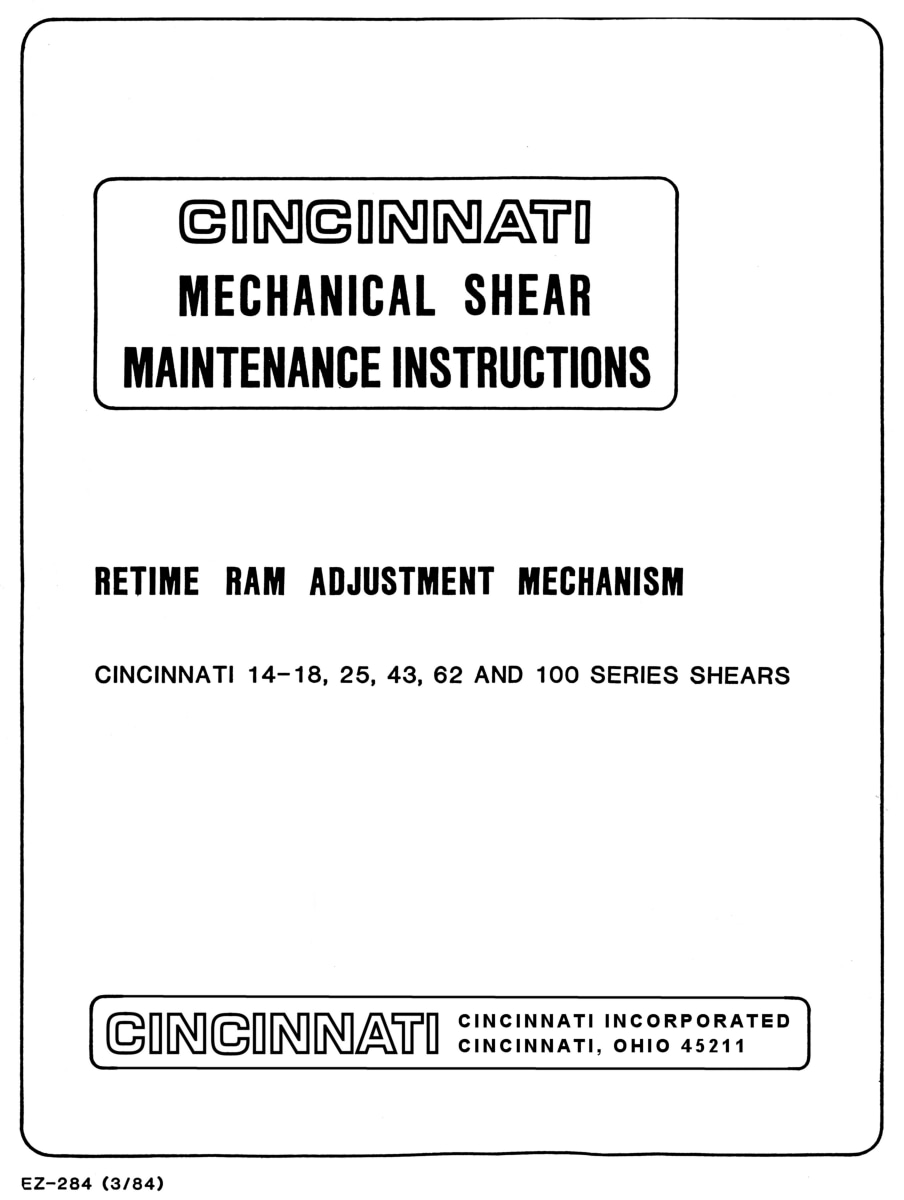

This is a reproduction, not a photocopy, of an original 1984 Cincinnati 14-18, 25, 43, 62, and 100 Series Metal Shears Operator, Maintenance, and Parts Manual. This manual contains information on lifting and installation instructions, operating instructions, and proper lubricating instructions. The manual covers various adjustments like in the chain drive, brake, ram, and instructions on how to correctly change and set new shear knives. There is a significant amount of information on servicing the clutch with instruction on how to remove and set it, and there is a section on the counterbalances as well. There is a section on retime ram adjustment mechanisms.
Overview
I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear; they are then comb-bound with heavy cover pages so they lie flat on the workbench. Better than a low-resolution free pdf download.
