Description
Number of Pages: 43
This is a reproduction, not a photocopy, of an original Norton No. 2 Cutter and Tool Grinder Instructions and Parts Manual. This manual contains information on lubrication, maintenance, adjustments, operations, and controls. It also contains cross-sectional view diagrams of the parts. Please read contents below.
Contents:
Specifications......................................1
General Operation...................................4
Lubrication.........................................4
Clearance Angle Setting Dog.........................7
Swivel Table........................................7
Two-Speed Table Traverse............................7
Table Lock..........................................7
Wheel Head..........................................9
Spindle Height Gage.................................9
Diamond Tool Holder.................................9
Wheel Truing........................................9
Tooth Rests........................................10
Wheel Collets and Wheels...........................12
Spindle Drive Belt.................................12
A Handbook on Tool Room Grinding...................12
Attachments........................................13
Universal Work Head................................15
Clearance Angle Setting Dial.......................15
Power Driven Headstock.............................15
Cylindrical Grinding Attachment....................15
Universal Chuck....................................15
Face Chuck.........................................15
Gear Cutter Grinding Attachment....................17
Small End Mill Grinding Attachment.................19
Indexing Centers...................................19
Combination Attachment.............................21
Surface Grinding Attachment........................27
Radius Wheel Truing Device.........................29
Internal Grinding Arrangement......................29
Dead Center Grinding Arrangement...................29
Face Mill Grinding Attachment......................31
Radius Grinding Attachment.........................34
Hob Grinding Attachment............................37
Long Reamer Grinding Attachment....................41
Specifications.....................................42

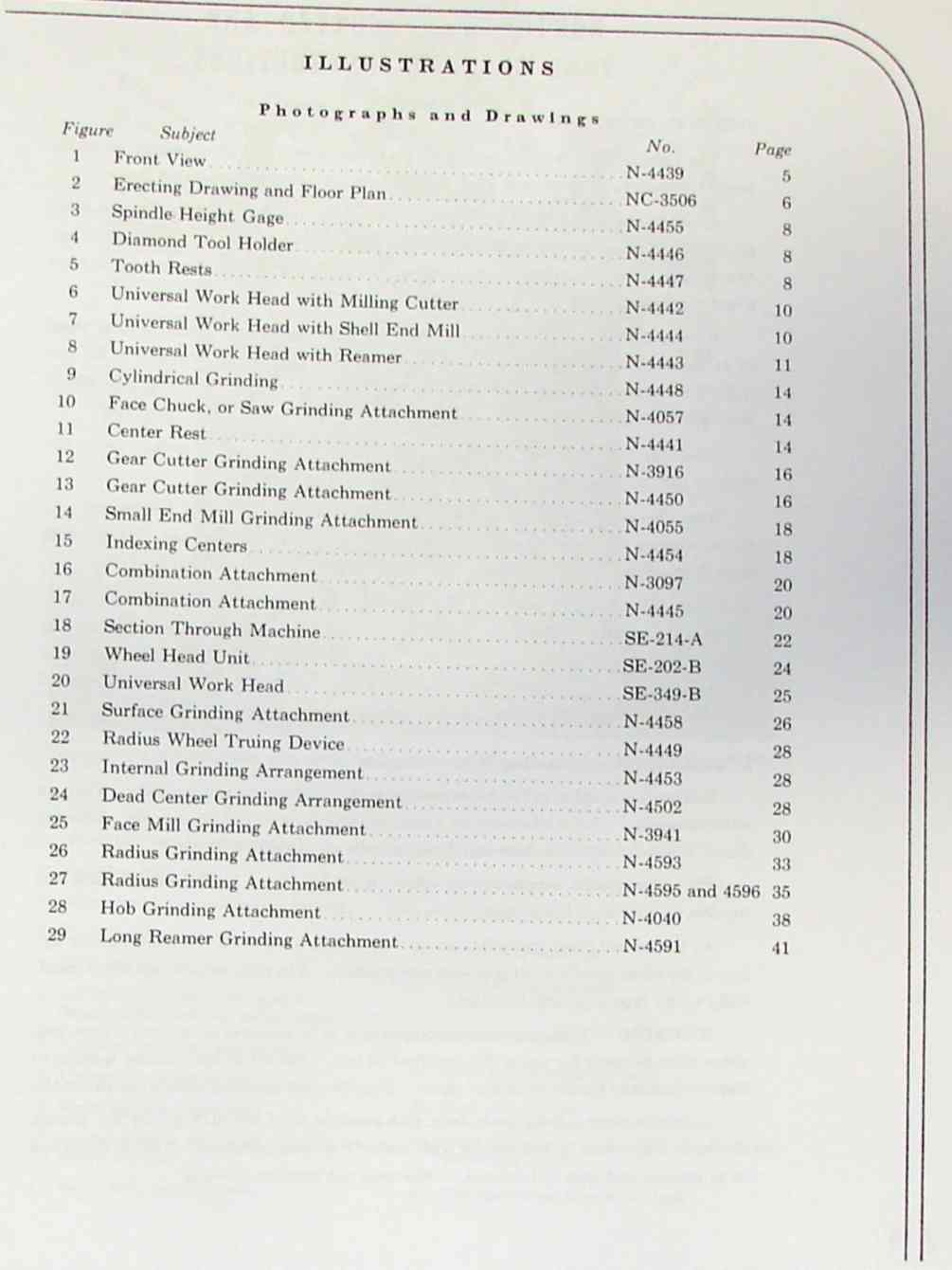

Photographs and Drawings

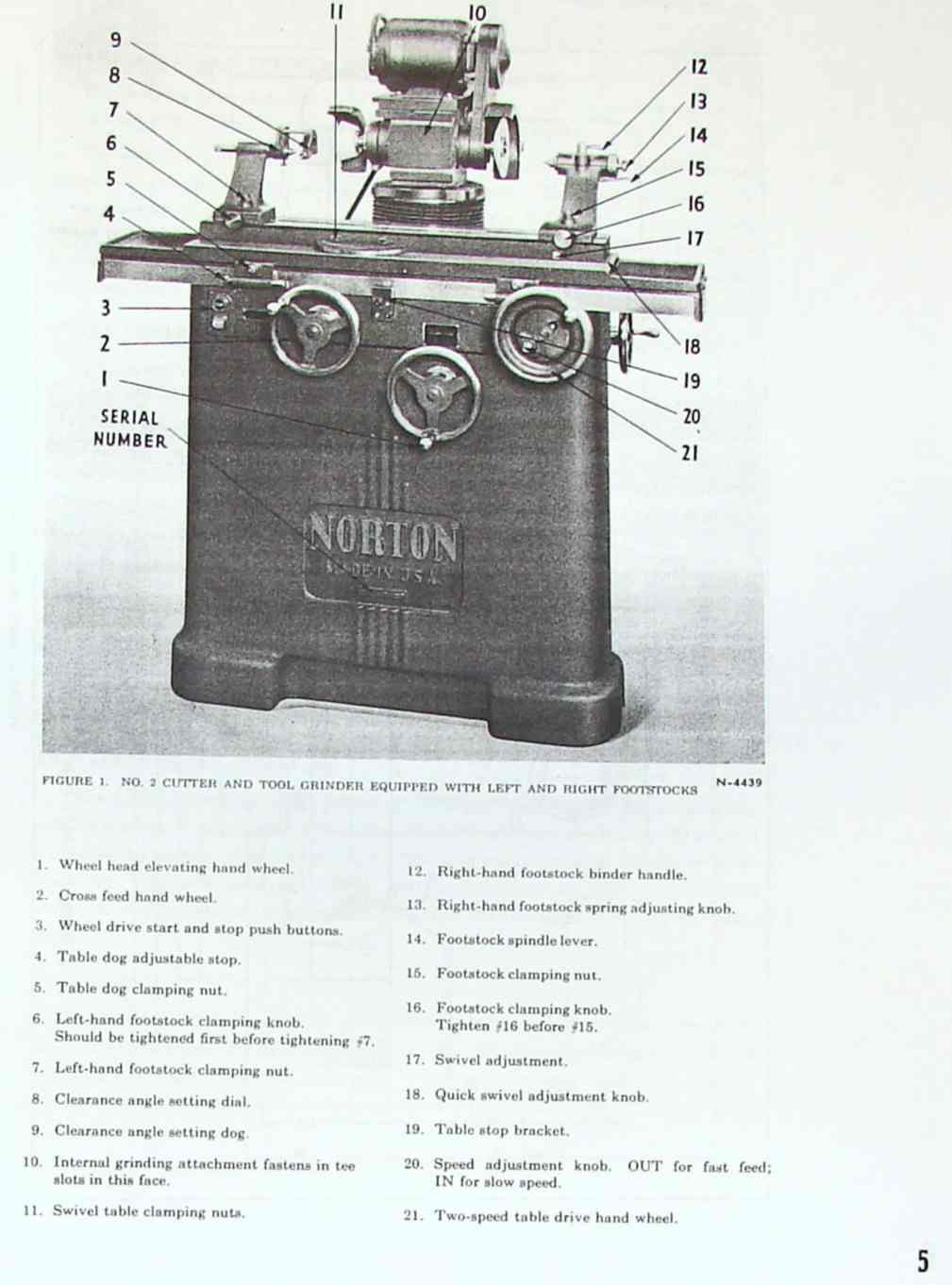

1 Front View.................................N-4439 5
2 Erecting Drawing and Floor Plan...........NC-3506 6
3 Spindle Height Gage........................N-4455 8
4 Diamond Tool Holder........................N-4446 8
5 Tooth Rests................................N-4447 8
6 Universal Work Head with Milling Cutter...N-4442 10
7 Universal Work Head with Shell End Mill...N-4444 10
8 Universal Work Head with Reamer...........N-4443 11
9 Cylindrical Grinding......................N-4448 14
10 Face Chuck, or Saw Grinding Attachment...N-4057 14
11 Center Rest..............................N-4441 14
12 Gear Cutter Grinding Attachment..........N-3916 16
13 Gear Cutter Grinding Attachment..........N-4450 16
14 Small End Mill Grinding Attachment.......N-4055 18
15 Indexing Centers.........................N-4454 18
16 Combination Attachment...................N-3097 20
17 Combination Attachment...................N-4445 20
18 Section Through Machine................SE-214-A 22
19 Wheel Head Unit........................SE-202-B 24
20 Universal Work Head....................SE-349-B 25
21 Surface Grinding Attachment..............N-4458 26
22 Radius Wheel Truing Device...............N-4449 28
23 Internal Grinding Arrangement............N-4453 28
24 Dead Center Grinding Arrangement.........N-4502 28
25 Face Mill Grinding Attachment............N-3941 30
26 Radius Grinding Attachment...............N-4593 33
27 Radius Grinding Attachment...............N-4595 35
28 Hob Grinding Attachment..................N-4040 38
29 Long Reamer Grinding Attachment..........N-4591 41 Overview
I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear; they are then comb bound with heavy cover pages so they lie flat on the workbench.
