Description
Number of Pages: 13

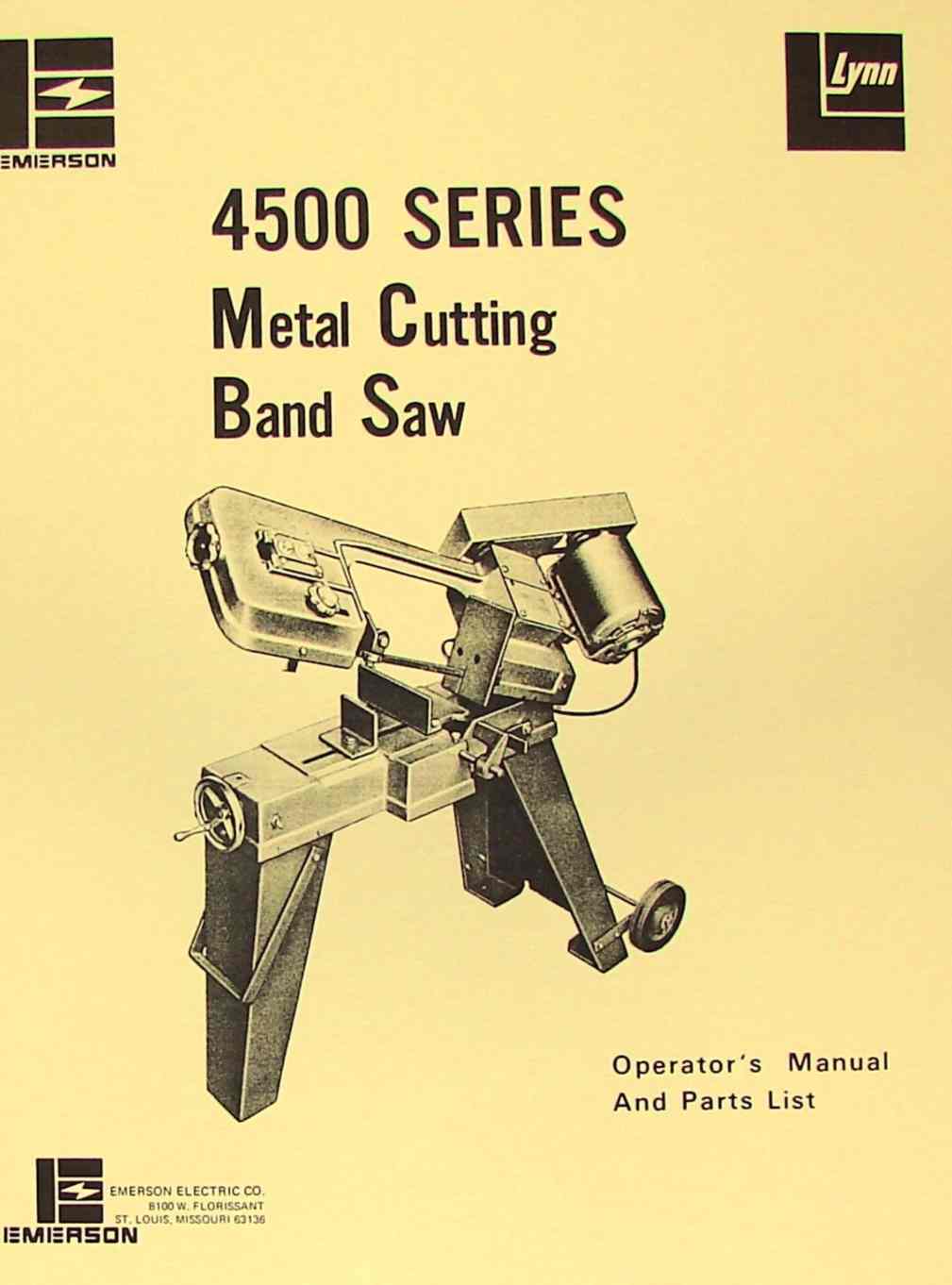

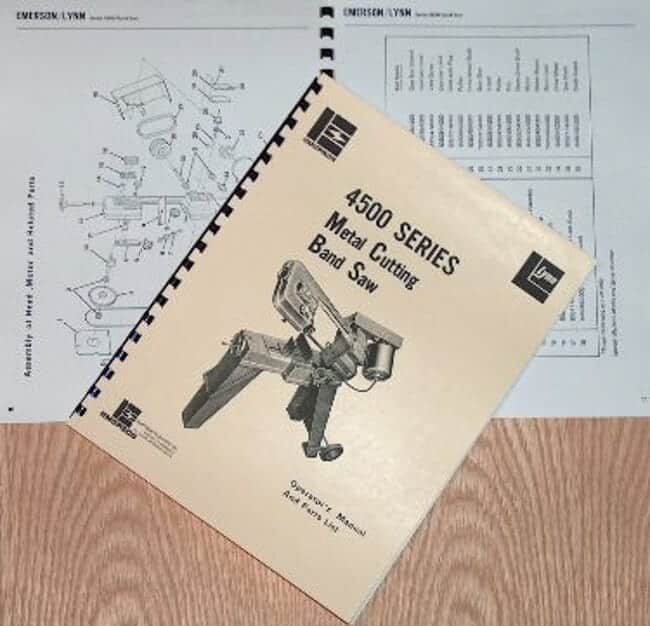

This is a reproduction, not a photocopy, of an original Emerson 4500 Series Metal Cutting Band Saw Operator and Parts Manual. This band saw is a generic Asian model that was sold under many different names, including: Craftsman, Jet, Enco, Harbor Freight, Grizzly, etc… This manual contains information on lubrication, adjustments, maintenance, and controls as well as a complete parts list with exploded view diagrams. The most important thing about this manual is that it has information on Operating Speed and Feed in addition to Operating Adjustments on Blade, tension, tracking, squaring, and trust rollers. Manual also contains a good description of parts.

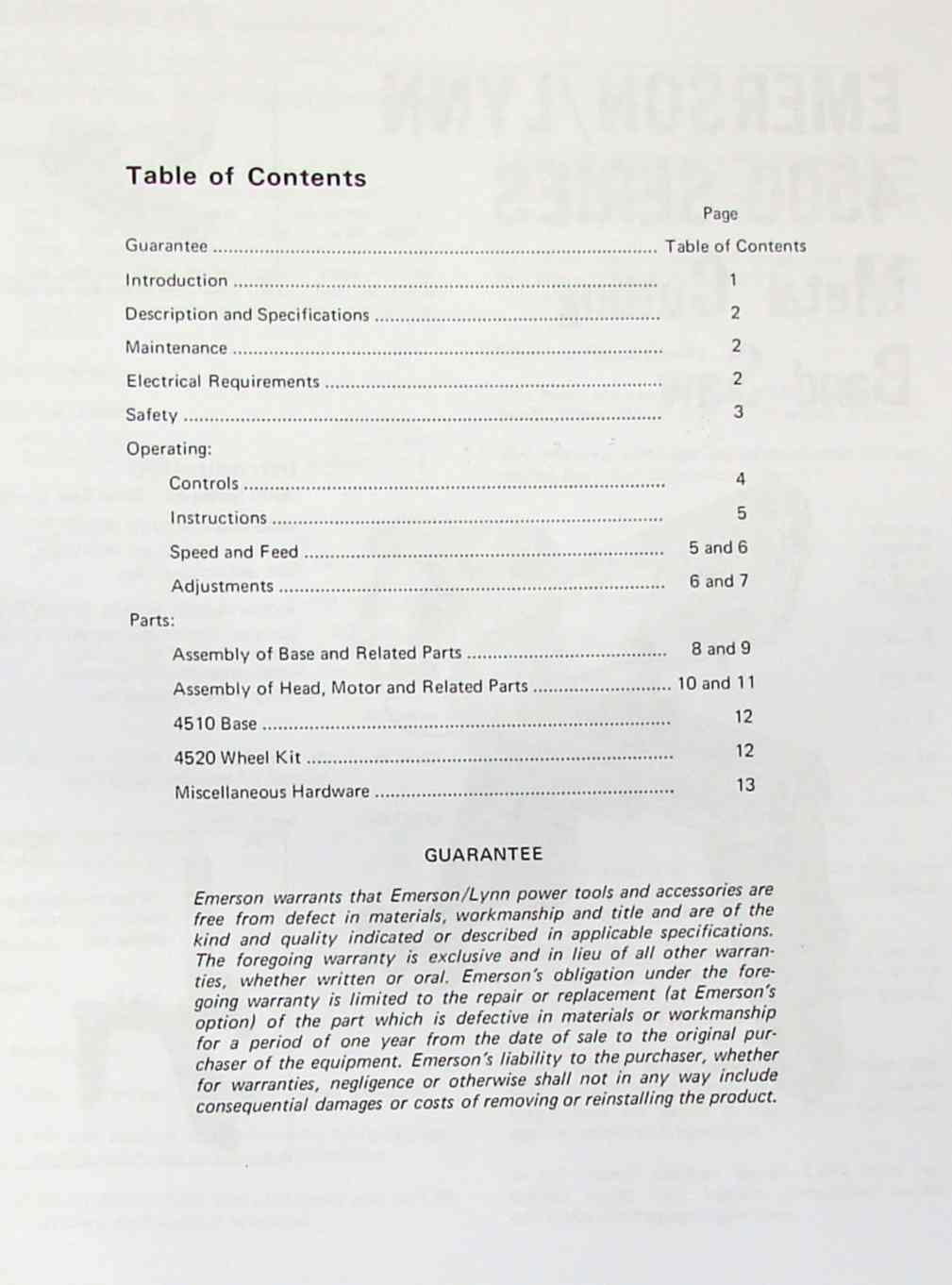

Contents:
Table of Contents Introduction...........................1 Description and Specifications.........2 Maintenance............................2 Electrical Requirements................2 Safety.................................3 Operating: Controls...............................4 Instructions...........................5 Speed and Feed...................5 and 6 Adjustments......................6 and 7 Parts: Assembly of Base and Relatedย Parts............................8 and 9 Assembly of Head, Motor and Relatedย Parts..........................10 and 11 4510 Base.............................12 4520 Wheel Kit........................12 Miscellaneous Hardware................13
Overview:
I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear, which is better than a low resolution pdf download.
