HARDINGE DSM-A Automatic Metal Lathe Maintenance Manual

Id: 0902

$40.00

99 in stock




Description

Number of Pages: 45

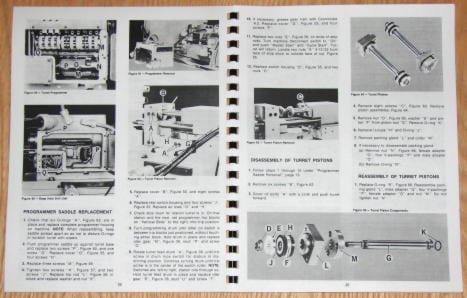

This is a reproduction, not a photocopy, of an original Hardinge DSM-A Second Operation Metal Lathe Maintenance Manual. This manual contains information and instructions on how to adjust and replace nearly every single part of these Hardinge DSM-A second operation lathes. Please read the contents below the pictures.



We have the operator’s manual and the parts manual for the DSM-A in our store as well.

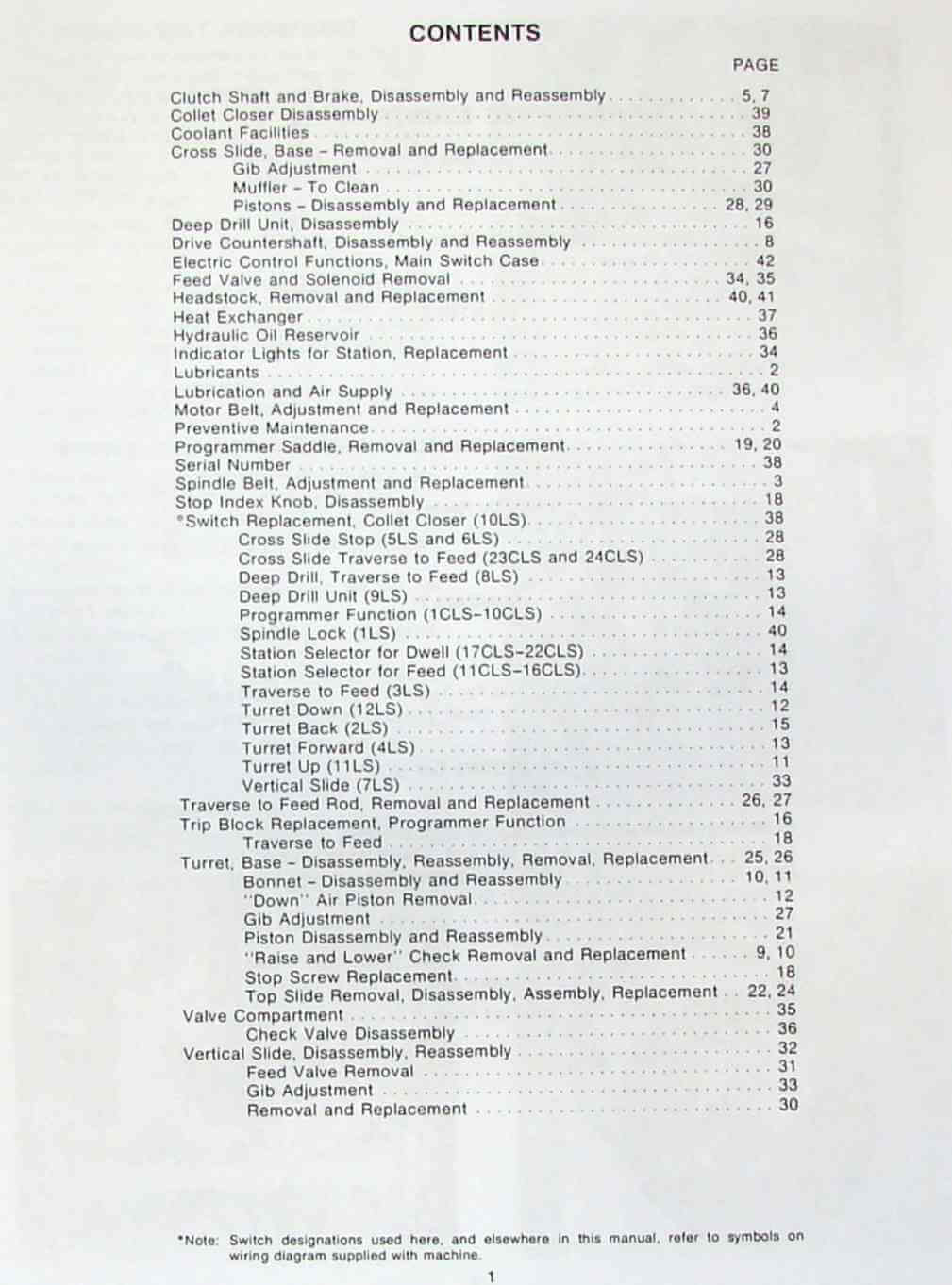

Contents:

Clutch Shaft and Brake, Disassembly and Reassembly………….5,7
Collet Closer Disassembly…………………………………39
Coolant Facilities……………………………………….38
Cross Slide, Base – Removal and Replacement…………………30
Gib Adjustment…………………………………………..27
Muffler – To Clean……………………………………….30
Pistons – Disassembly and Replacement……………………28,29
Deep Drill Unit, Disassembly………………………………16
Drive Countershaft, Disassembly and Reassembly……………….8
Electric Control Functions, Main Switch Case………………..42
Feed Valve and Solenoid Removal…………………………34,35
Headstock, Removal and Replacement………………………40,41
Heat Exchanger…………………………………………..37
Hydraulic Oil Reservoir…………………………………..36
Indicator Lights for Station, Replacement…………………..34
Lubricants……………………………………………….2
Lubrication and Air Supply……………………………..36,40
Motor Belt, Adjustment and Replacement………………………4
Preventive Maintenance…………………………………….2
Programmer Saddle, Removal and Replacement……………….19,20
Serial Number……………………………………………38
Spindle Belt, Adjustment and Replacement…………………….3
Stop Index Knob, Disassembly………………………………18
*Switch Replacement, Collet Closer (10LS)…………………..38
Cross Slide Stop (5LS and 6LS)…………………………….28
Cross Slide Traverse to Feed (23CLS and 24CLS)………………28
Deep Drill, Traverse to Feed (8LS)…………………………13
Deep Drill Unit (9LS)…………………………….…..….13
Programmer Function (1CLS-10CLS)………………….…..…..14
Spindle Lock (1LS)……………………………..…..……40
Station Selector for Dwell (17CLS-22CLS)…………………...14
Station Selector for Feed (11CLS-16CLS)..…..………………13
Traverse to Feed (3LS)……………….…..………………14
Turret Down (12LS)…………………..…..………………12
Turret Back (2LS)………………………..………………15
Turret Forward (4LS)……………………..………………13
Turret Up (11 LS)………………………..………………11
Vertical Slide (7LS)……………………..………………33
Traverse to Feed Rod, Removal and Replacement…………….26,27
Trip Block Replacement, Programmer Function…………………16
Traverse to Feed…………………….…..………………18
Turret, Base – Disassembly, Reassembly, Removal, Replacement.25,26
Bonnet – Disassembly and Reassembly…………..…………10,11
“Down” Air Piston Removal……………….…..……………12
Gib Adjustment……………………………..……………27
Piston Disassembly and Reassembly……………..…………..21
“Raise and Lower” Check Removal and Replacement….…..……9,10
Stop Screw Replacement. . …………………….…..……..18
Top Slide Removal, Disassembly, Assembly, Replacement.…....22,24
Valve Compartment………………………………………..35
Check Valve Disassembly……………………………..……36
Vertical Slide, Disassembly, Reassembly…………………….32
Feed Valve Removal…………………………………..…..31
Gib Adjustment………………………………….…..…..33
Removal and Replacement………………………….…..…..30

Overview
I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear; they are then comb bound with heavy cover pages so they lie flat on the workbench.
