Description
Number of Pages: 30

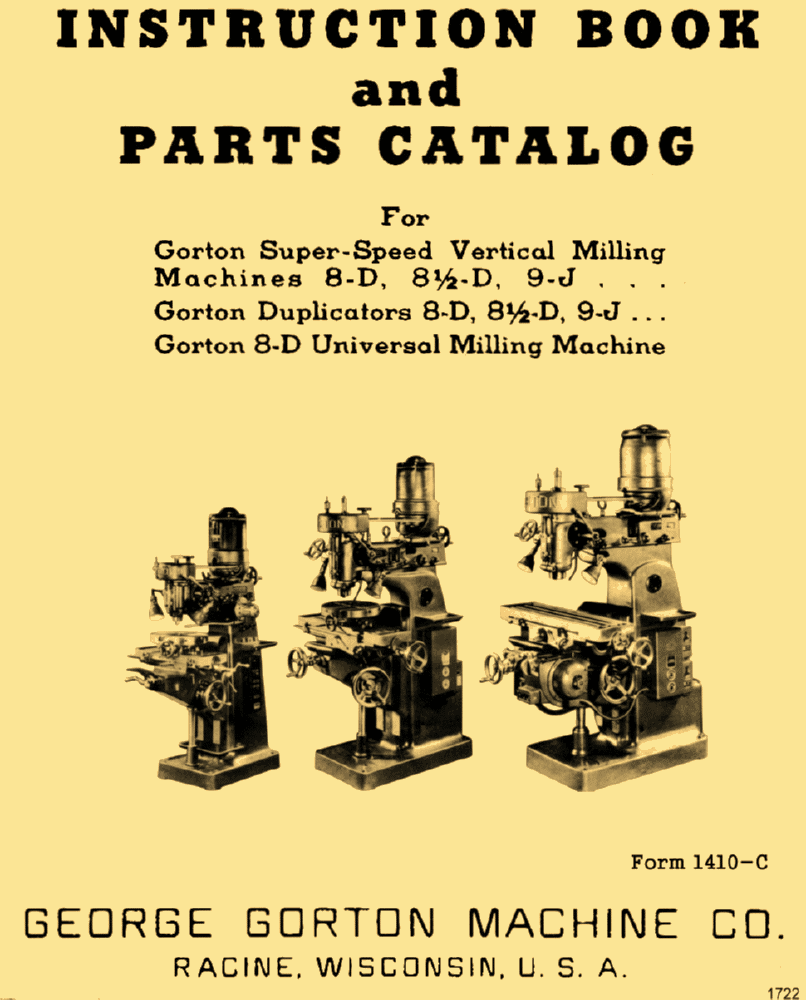

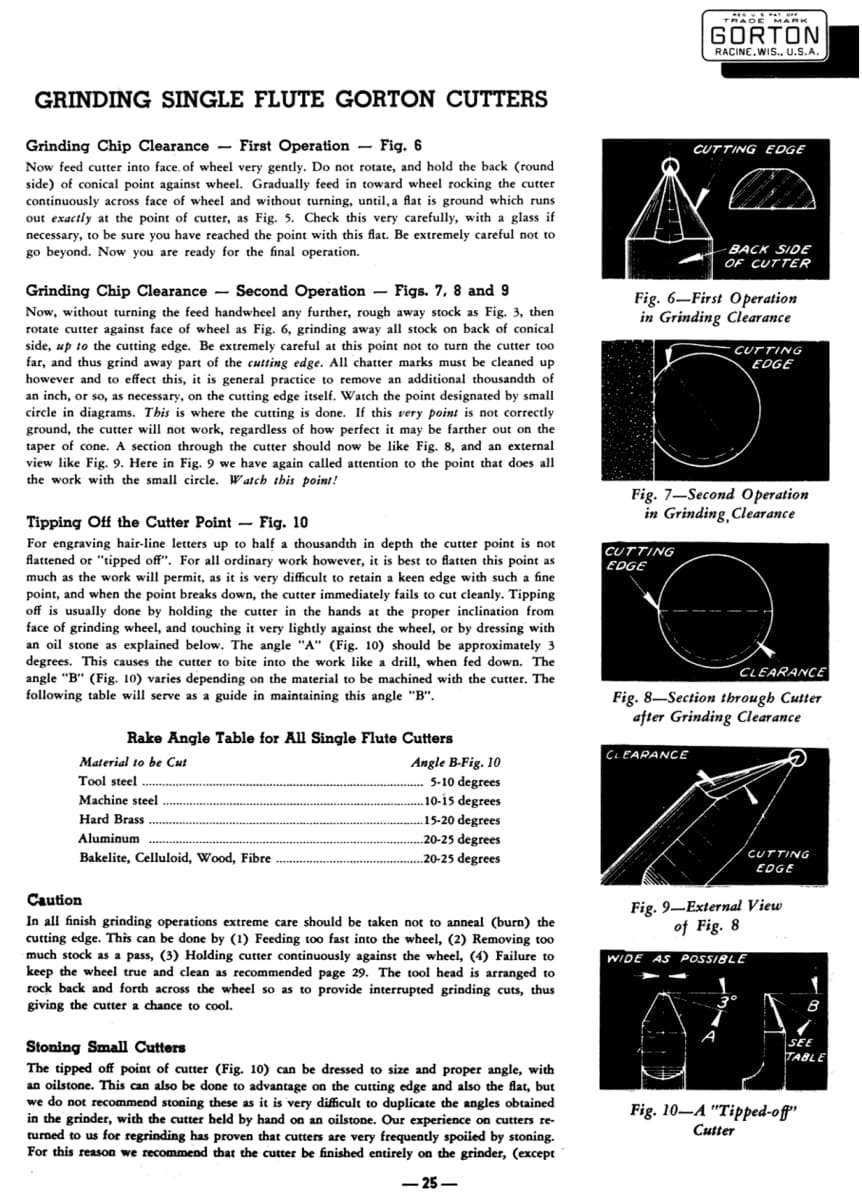

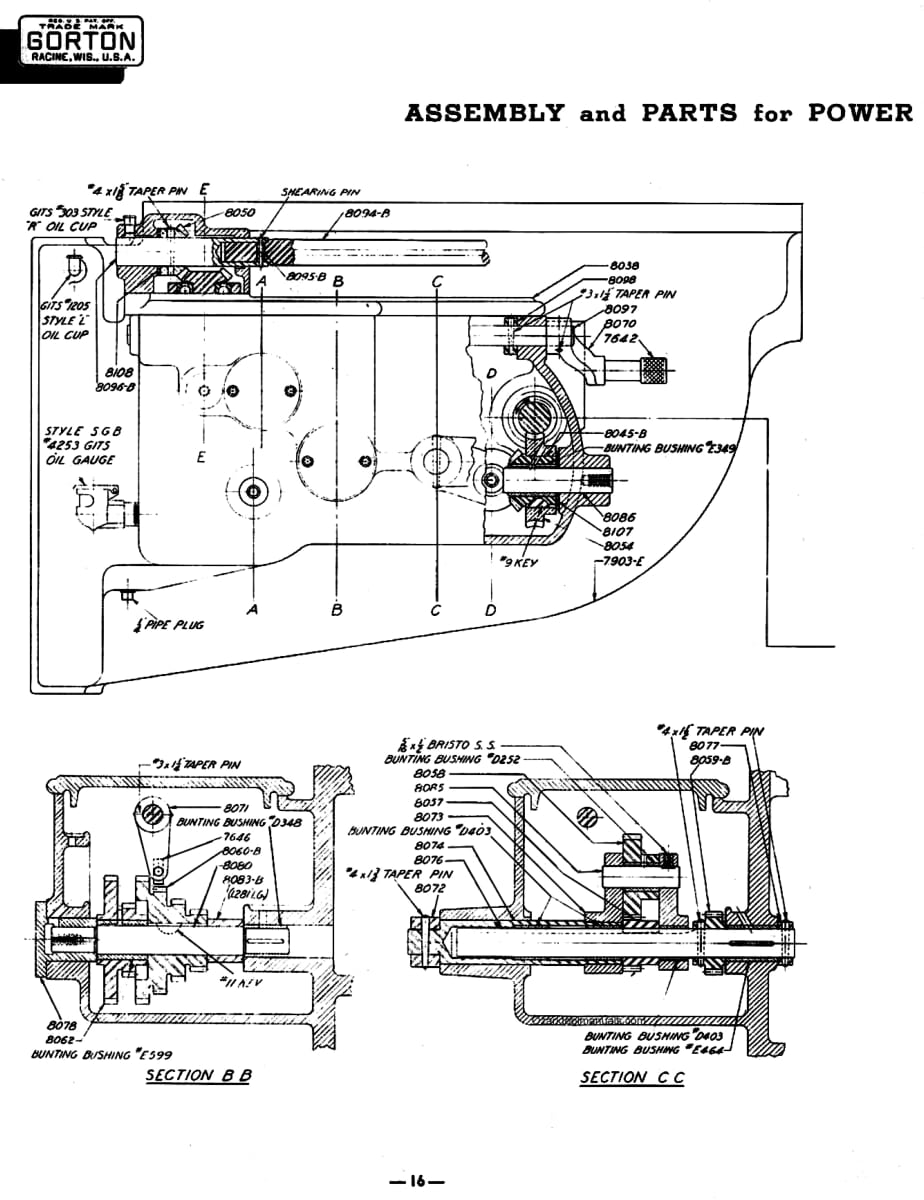

This is a reproduction, not a photocopy, of an original Gorton Vertical & Duplicating Milling Machines Models 8D, 8 1/2D, & 9J, and also the 8D Universal Milling Machine. This manual contains information on proper Operating Instructions, Lubrication, making various Adjustments for alignment, Die Mold Cutting, Models for Die and Mold Duplicating, Cutters for Die and Mold Work, Grinding Single Flutes, Cutters with Gorton Cutter Grinders, and a Cutter Speed Chart. The manual has cross-sectional view diagrams of all the different parts, however there are NO parts lists with descriptions. This is a very informative and good manual for these Gorton Mills.
Overview:
I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page and removed stains, wrinkles, and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear, which can be better than a low-resolution free PDF download.
