Number of Pages: 12

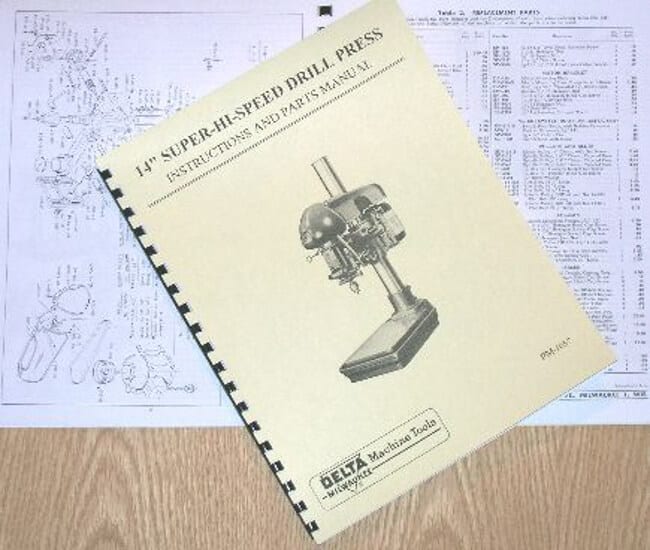

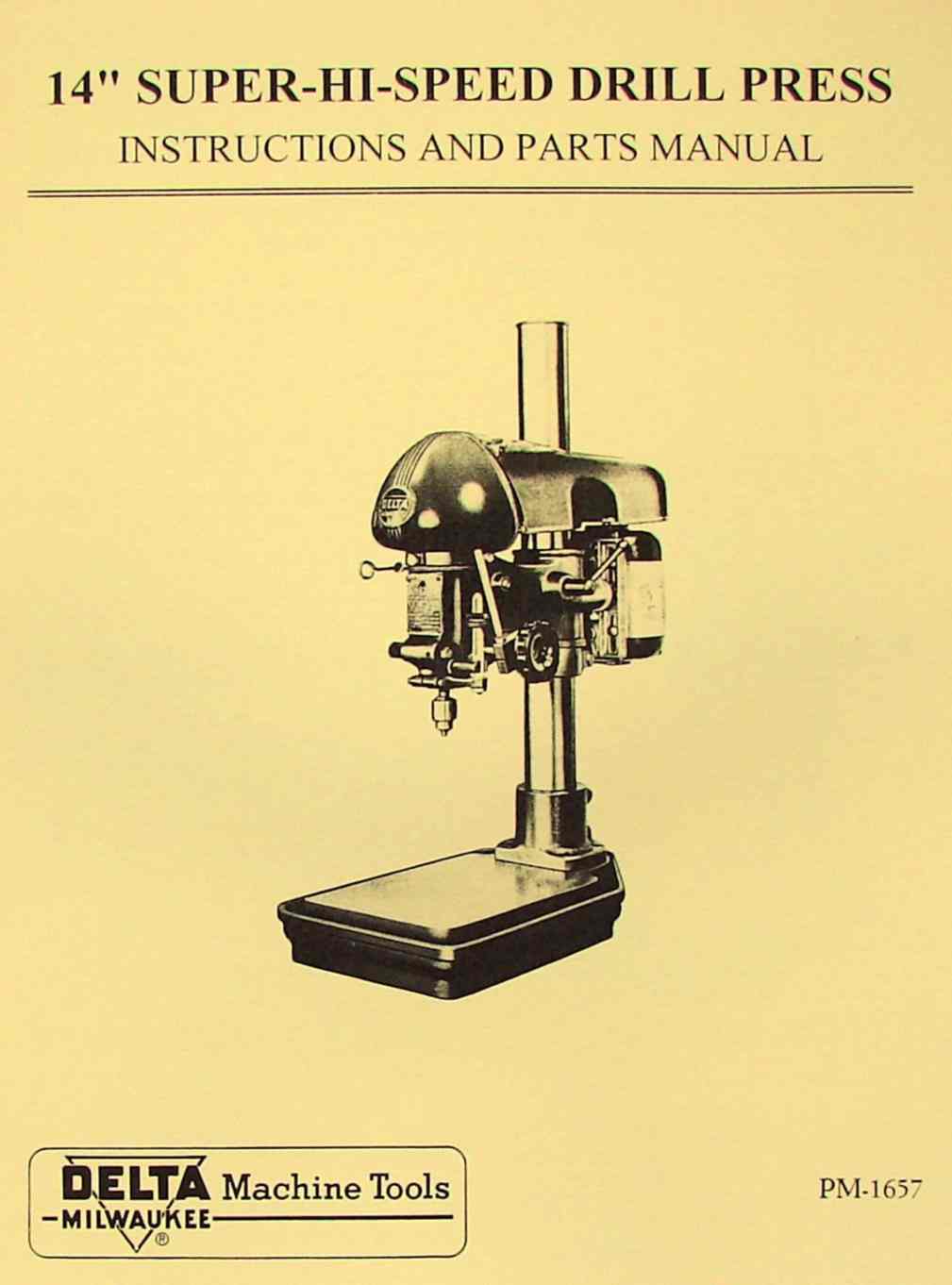

This is a reproduction, not a photocopy, of an original Delta 14″ Super-Hi-Speed Drill Press Operation and Parts Manual, plus the catalog, and covers the following known models 14-300, 14-321, 14-322, 14-323, 14-324, 14-325, and 14-326.
This manual contains information on lubrication, adjustments, maintenance, and controls as well as a complete parts list with exploded view diagrams. Because this is machine is set up different than a regular drill press this manual covers removal of the upper and lower spindle cartridges. This manual also covers some of the other unusual items on this drill press. Plus, the catalog (A-14-3) covers accessories and specifications of the machine. Another important thing contained in this manual is how to adjust the spindle-return spring, which controls the quill.
I also highly recommend the “DELTA Getting the Most Out of Your Drill Press Manual“, which we carry. It covers a lot of different set ups and unique uses for these drill presses.

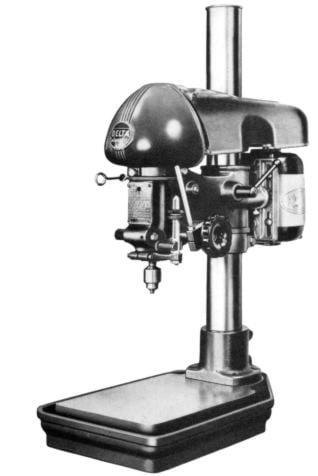

If your machine looks similar to the one pictured, this manual should cover your machine. Delta/Rockwell changed the model number for every little change made on the machine including whether it was floor model or a bench model, the motor size, the spindle size, changes in magnetic switches, the type of fence, etc…
For example the 15″ Drill Press in one Catalog had over 45 different model numbers listed for the same basic drill press that year.
I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear.
