Description
Number of Pages: 52

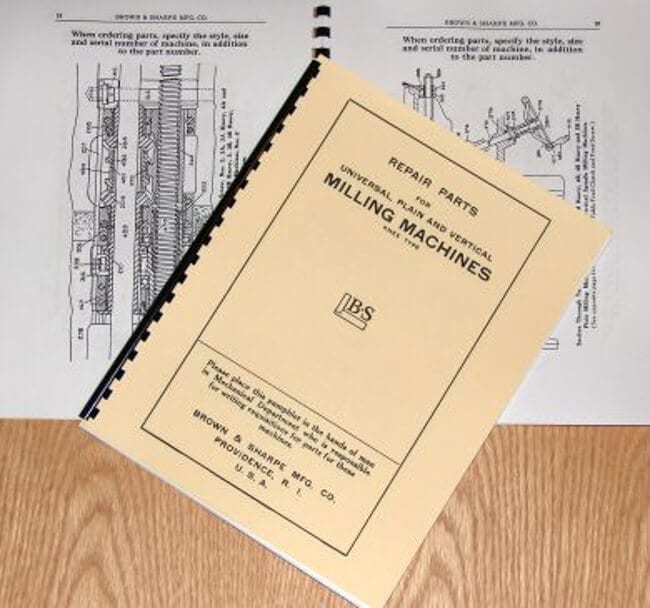

This is a reproduction, not a photocopy, of an original Brown & Sharpe Milling Machines Parts Manual. This manual is for models made in the 1920’s or 1930’s. It seems to cover all the milling machines that they made at the time including horizontal and vertical mills, and includes cross sectional diagrams of the parts. It also includes parts diagrams of the accessories, including the universal dividing head that they made at the time. The models include:
1A, 2A, 3A, 3A Heavy, 4A, 4A Heavy Universal Milling Machines
1B, 2B, 2B Heavy, 3B, 3B Heavy, 4B, 4B Heavy, 5B Heavy Plain Milling Machines
Nos. 1, 2 and 3 Vertical Milling Machines
Nos. 0Y, 1Y without back gears and 2Y Plain Milling Machines
Nos. 1 with back gears, 2, and 3 Universal Milling Machines
Nos. 3A, 3A Heavy, 4A and 4A Heavy Universal Milling Machines
+ The accessories they made at the time
The manual does not contain list of all the models that are contained in it. I went through the pages and wrote down the ones I could find. It is possible that I missed one or two. So feel free to email me if you think your mill was made around this time, and is not listed.
Below are a few of the machines covered in this manual to give you an idea of the vintage.
Overview:
I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear.
