Machine ID’d: Walker Turner 16″ Band Saw Model MCB1160

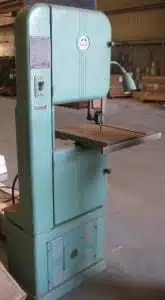

Below are some pictures of a Walker Turner 16″ band saw. The gentleman received the band saw without a manual, and the plastic knob on the upper wheel adjustment assembly was broken. He didn’t know which model his band saw was, because Walker Turner didn’t put the model number on the name plate. It only had the serial number as 52BF4A.

According to this serial number we can tell that this is a Walker Turner 16″ Band Saw is a model MCB1160 that was made in the early 50’s. In 1950 the second letter of the serial number indicated which model it was. The “F” stands for model MCB1160. We have an instructions and parts manual listed below, and as for my recommendation on replacing the handwheel, I recommend using Grizzly. They have lots of handwheels at different sizes that can be modified to fit your machines. Here’s a link to them Grizzly Handwheels.



Original Catalog Listing from 1950:

The MCB1160 band saw originally sold for $447.50 in 1950. That’s the equivalent to $4,431.14 in today’s money.

Instructions and Parts Manual for Walker Turner 16″ MCB1160 Band Saw:

We have the manual which covers this band saw and the MCB1150 & MCB1151 band saws. It’s a pretty good manual for it’s age. It contains the specifications for these band saws included the recommended motor and blade sizes. The manual covers the general operating instructions as well as instructions for adjusting the blades and tension. There are lubricating instructions and explosive view diagrams of all the parts with parts descriptions.

WALKER-TURNER 1160-1150-1151 16″ Band Saws Operator & Parts Manual





Submit Your Machine
Do you want to know more about your machine?

Email us your details with pictures, and we’ll put together the best information we can find. Plus, we can get other readers’ input to help you learn more.

Also, feel free to email us if you want us to share your machine on our site.

Email your information to: info@ozarkwoodworker.com



Machine ID’d: Walker Turner 24″ Scroll/Jig Saw J915

Received these pictures from a gentleman trying to verify which Walker Turner 24″ scroll saw he had in his shop. Walker Turner made a lot of changes to their 24″ scroll saw over time. Some of the difference are fairly subtle, and we have manuals for a few of them. The differences between the J781 and J782 are so subtle that we combined the two into the same manual to make it easier for everyone.

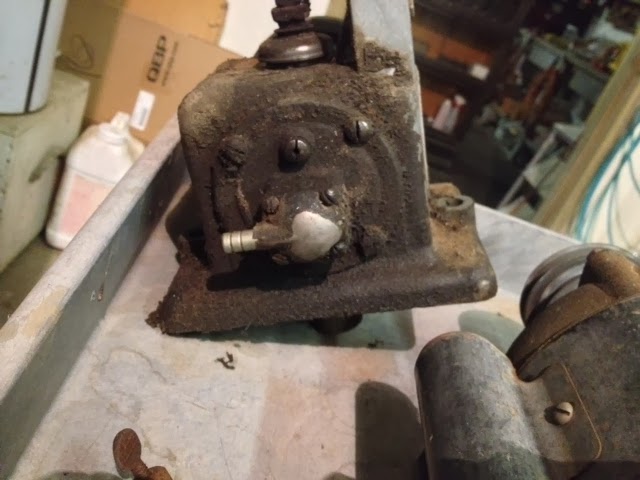

The main identifying difference between the J915 and the J781 or J782 is the fact that the air hose comes out of the arm (as you can see in the image below). While the air hose on the J781 and J782 comes out of the top of the head.
We have a manual for this Walker Turner Jig/Scroll saw here:

The Walker Turner J915 24″ Jig Saw without a stand or accessories sold for $63.50 in 1949, which is equivalent to $623.12 today. Here is a page on the J915 from a 1949 Walker Turner catalog.

Do you have one of these scroll saws, or
do you have anything else you would like to add about it’s history or use?
Please add your comments below.
