SUNNEN MBB-1290D MBH-1290D Honing Machine Manual

Id: 0803

$30.00

100 in stock




Click Here to Pay by Check/Money Order
Print Page

Description

Number of Pages: 31

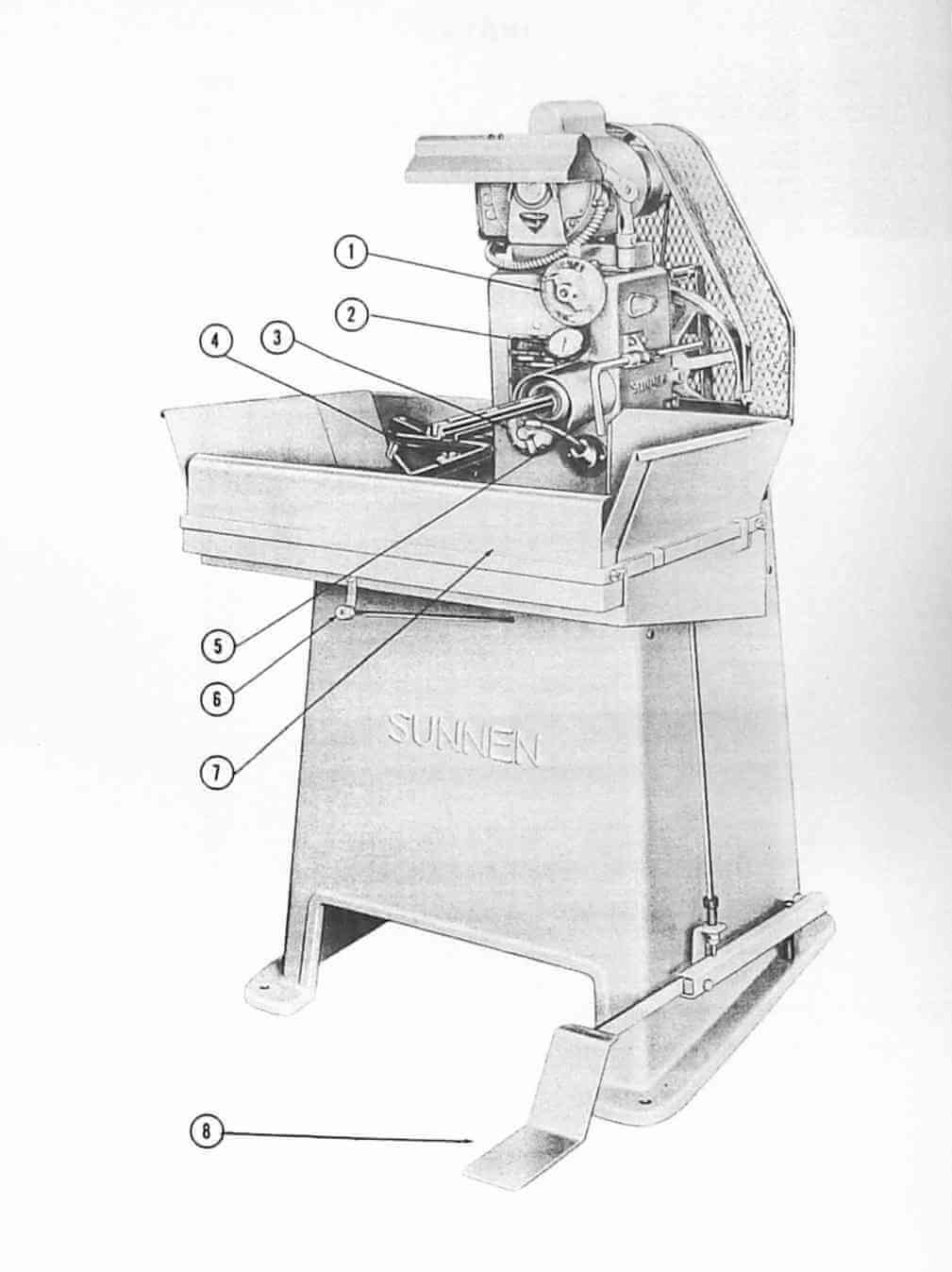

This is a reproduction, not a photocopy, of an original Sunnen MBB-1290D & MBH-1290D Precision Honing Machine Maintenance, Operator’s and Parts Manual. This manual contains information about set up, operating instructions, lubrication, adjustments, stroking procedures, and spindle speed selection. Please see contents below picture:

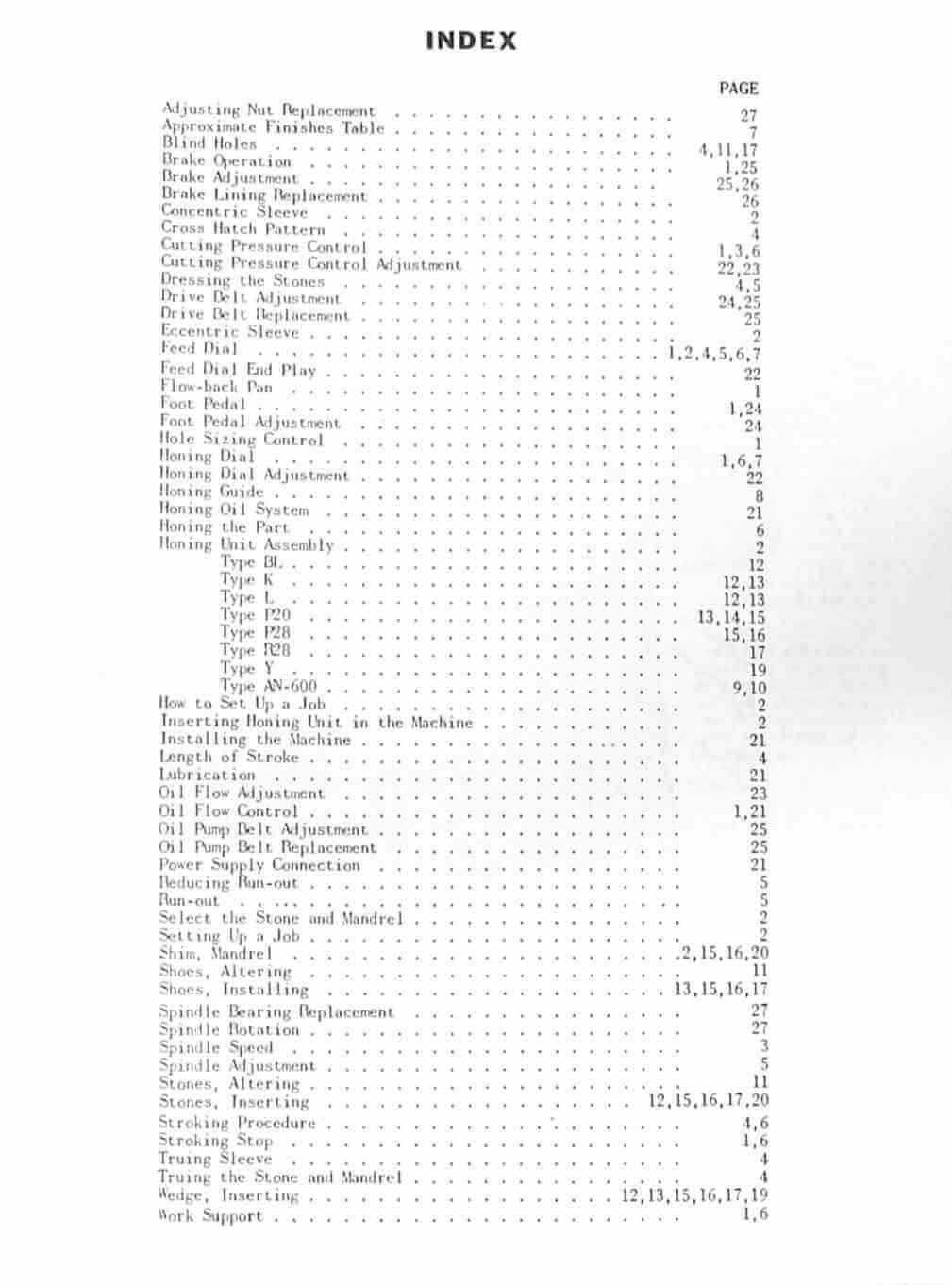

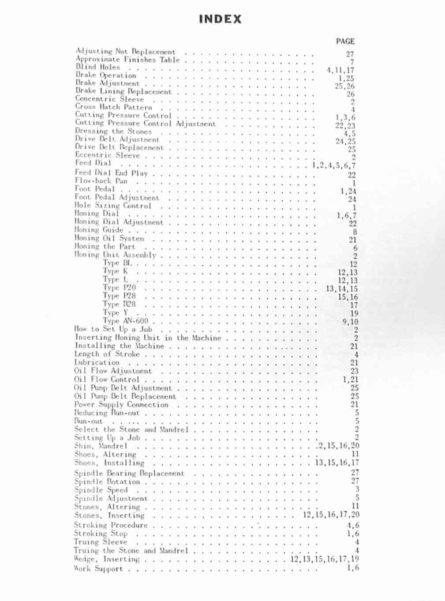

Contents:

Adjusting Nut Replacement………………..27

Approximate Finishes Table………………..7

Blind Holes………………………..4,11,17

Brake Operation……………………….1,25

Brake Adjustment …………………….25,26

Brake Lining Replacement…………………26

Concentric Sleeve………………………..2

Cross Hatch Pattern………………………4

Cutting Pressure Control………………1,3,6

Cutting Pressure Control Adjustment…….22,23

Dressing the Stones…………………….4,5

Drive Belt Adjustment ………………..24,25

Drive Belt Replacement…………………..25

Eccentric Sleeve…………………………2

Feed Dial………………………1,2,4,5,6,7

Feed Dial End Play ……………………..22

Flow-back Pan……………………………1

Foot Pedal……………………………1,24

Foot Pedal Adjustment……………………24

Hole Sizing Control………………………1

Honing Dial………………………….1,6,7

Honing Dial Adjustment…………………..22

Honing Guide…………………………….8

Honing Oil System……………………….21

Honing the Part………………………….6

Honing Unit Assembly……………………..2

Type BL………………………………..12

Type K ……………………………..12,13

Type L………………………………12,13

Type P20………………………….13,14,15

Type P28…………………………….15,16

Type R28……………………………….17

Type Y…………………………………19

Type AN-600…………………………..9,10

How to Set Up a Job………………………2

Inserting Honing Unit in the Machine……….2

Installing the Machine…………………..21

Length of Stroke…………………………4

Lubrication…………………………….21

Oil Flow Adjustment……………………..23

Oil Flow Control………………………1,21

Oil Pump Belt Adjustment…………………25

Oil Pump Belt Replacement………………..25

Power Supply Connection………………….21

Reducing Run-out…………………………5

Run-out…………………………………5

Select the Stone and Mandrel………………2

Setting Up a Job…………………………2

Shim, Mandrel……………………2,15,16,20

Shoes, Altering…………………………11

Shoes, Installing……………….13,15,16,17

Spindle Bearing Replacement………………27

Spindle Rotation………………………..27

Spindle Speed …………………………..3

Spindle Adjustment ………………………5

Stones, Altering………………………..11

Stones, Inserting…………….12,15,16,17,20

Stroking Procedure……………………..4,6

Stroking Stop………………………….1,6

Truing Sleeve……………………………4

Truing the Stone and Mandrel………………4

Wedge, Inserting…………..12,13,15,16,17,19

Work Support…………………………..1,6

Overview:

I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear.
