SOUTH BEND Johnson OBI Power Presses 16, 35, 45, 60, 80, 120, 150 Manual

$45.00

Description

Number of Pages: 30

This is a reproduction, not a photocopy, of an original South Bend Johnson Power Presses 16 to150 Operator’s Manual. This operator’s manual covers the 16, 35, 45, 60, 80, 120, and 150 ton model presses. It contains information on set up, lubrication, maintenance, adjustments, and controls. Look at the contents below.

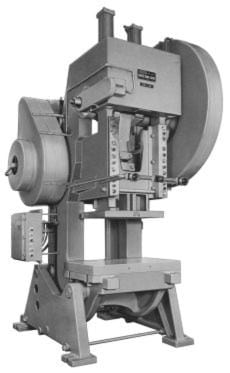

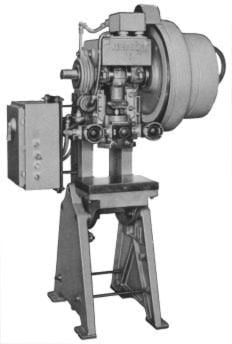

150                                         60                                      16



Contents:

Introduction……………………………………………………………………

1

Safety Instructions…………………………………………………………..

3

Safety Checks………………………………………………………………..

3

Safety Instructions for Press Operators……………………………….

3

Operator Check List……………………………………………………….

5

Safety Instructions for Die Setters………………………………………

6

Die Setter ‘s Check List……………………………………………………

7

Preparation for Use…………………………………………………………

8

Location………………………………………………………………………..

8

Uncrating………………………………………………………………………

8

Leveling………………………………………………………………………..

8

Initial Cleaning………………………………………………………………..

8

Initial Lubrication…………………………………………………………….

8

Initial Starting…………………………………………………………………

9

Press Installation Check List……………………………………………..

10

Operational Procedures……………………………………………………

11

Scope…………………………………………………………………………..

11

Use of Controls………………………………………………………………

11

Variable Speed Drives……………………………………………………..

11

Knock Out Brackets……………………………………………………….

12

Ram Adjustment…………………………………………………………….

12

Regulators for Air Clutch, Air Brake and Air

       Counterbalance. Cylinder Pressure……………………………….

12

Lubrication Procedures…………………………………………………….

13

Daily Care of the Press…………………………………………………….

13

Greased Sealed Backshaft and Flywheel Bearings…………………

13

Oil Cup Lubrication…………………………………………………………

13

One Shot Systems (Manual)……………………………………………..

13

Automatic Systems………………………………………………………….

13

Lubrication Chart…………………………………………………………….

14

Maintenance Procedures…………………………………………………..

15

Maintenance Safety Check……………………………………………….

15

Adjustment of Rotary Limit Switch……………………………………..

16

Adjustment of Snap Lock Switches…………………………………….

17

Adjustment of Limit Switch Chain Tension……………………………

17

Air Counterbalance Cylinders……………………………………………

17

Air Clutch Maintenance……………………………………………………

18

Air Clutch Inspection Procedure………………………………………..

19

Quick Release Valves………………………………………………………

20

Adjustment of Flywheel Bearings……………………………………….

20

Adjustment of Gibs………………………………………………………….

21

Adjustment of the Ball Nut………………………………………………..

22

Maintenance Check List…………………………………………………..

23

Press Stuck on Bottom…………………………………………………….

25





Overview:

I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear.
