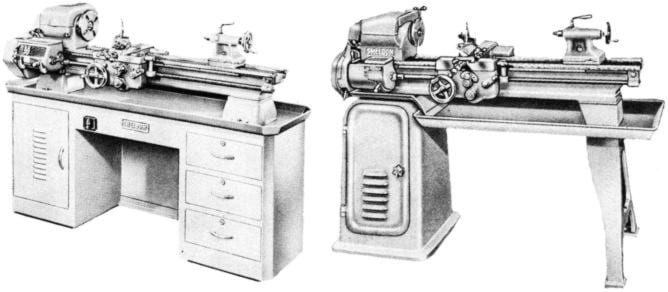

SHELDON 11″ Metal Lathe Parts Manual

$25.00

SKU: 0651 Categories: , , , Tag:

Description

Number of Pages: 20



This is a reproduction, not a photocopy, of an original Sheldon 11″ Lathe Parts Manual. This is an excellent parts manual. It is laid out very well and organized. This manual has some of the best parts diagrams I have ever seen. This manual includes the parts diagrams for both types of gearboxes, and it includes the threading chart.





The manual above may help you operate and maintain your metal lathe. If you would like to learn more about metal lathework techniques, the names and proper uses of different lathe tools, and other lathe operations, I would recommend clicking on the pictures of these two books here. We also have a complete series of different machinist books on sharpening, gearmaking, milling machines, and more here: Workshop Machinist Series





Overview:

I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear.
