Rockwell-Delta Older Heavy Duty Wood Shaper 43-205 & 1340 Operator’s & Parts Manual

Id: 0616

$20.00

94 in stock




Click Here to Pay by Check/Money Order
Print Page

Description

Number of Pages: 14

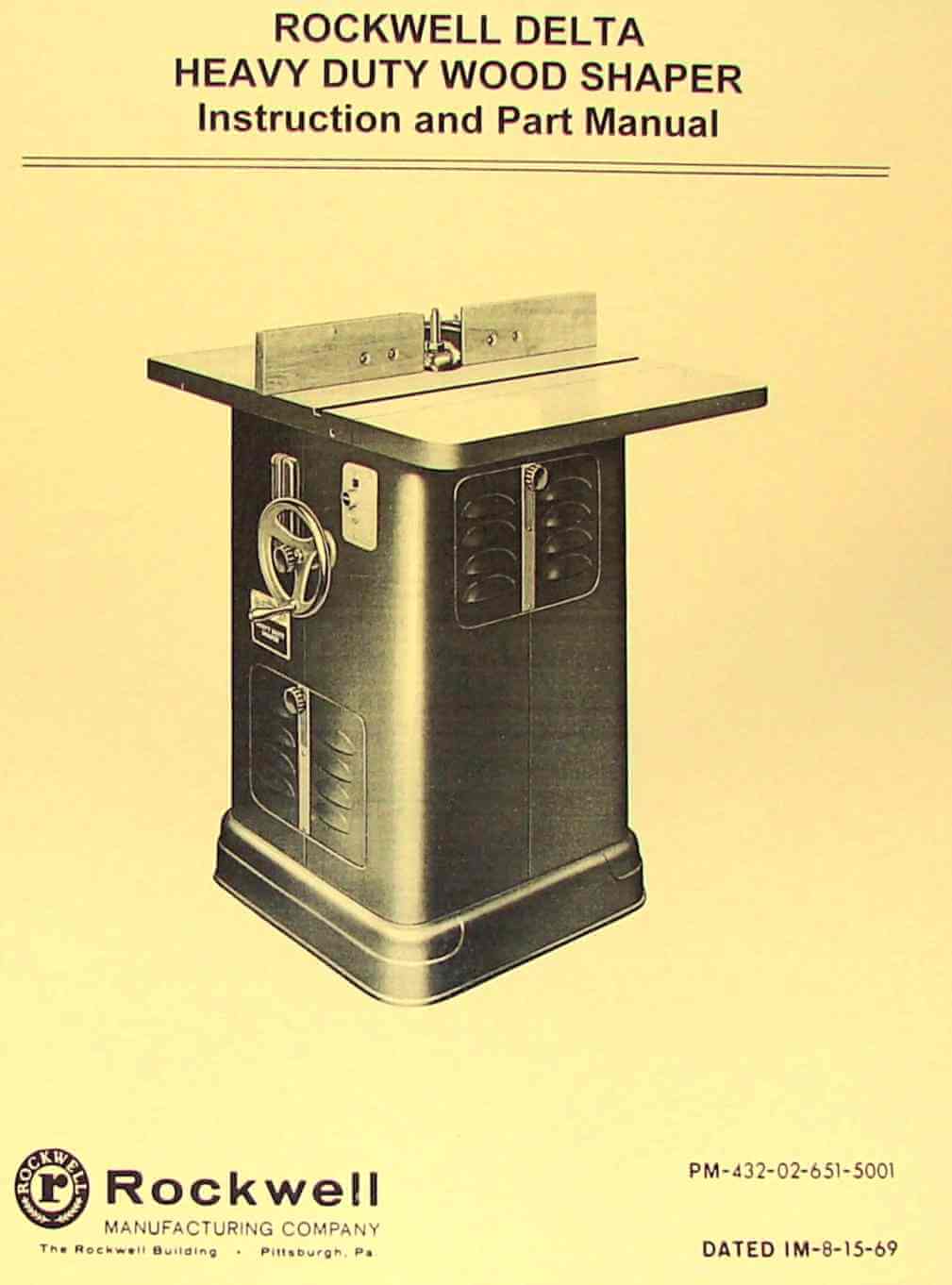

This is a reproduction, not a photocopy, of a Rockwell Older Heavy Duty Wood Shaper Models 43-205 and 1340 Instructions and Parts Manual. This covers the version with a lower cast iron base at the bottom. This owner’s manual contains information on setup, lubrication, maintenance, adjustments, and controls. The manual has a great nomenclature chart that has a nice illustration of the inner workings of this Rockwell wood shaper. It covers how to adjust the belts, and instructions on how to change the wood shaper spindle. This Rockwell manual also shows how to do shaping with collars and starting pin, and it has a complete set of explosive view diagrams with all the parts and parts descriptions for this Rockwell heavy duty wood shaper 43-205 and 1340. Please read contents below.



We also have the newer Heavy Duty Wood Shaper online here.



INTRODUCTION……………………………………………….1
SAFETY SUGGESTIONS………………………………………….2
NOMENCLATURE CHART………………………………………….3
INSTALLING THE MOTOR AND EXTENSION TABLE………………………4
GROUNDING INFORMATION……………………………………….4
ADJUSTING BELT TENSION………………………………………5
TABLE INSERTS………………………………………………5
OPERATING CONTROLS FOR THE FENCE……………………………..5
SPINDLE CONTROLS……………………………………………6
CHANGING SPINDLES…………………………………………..6
OPERATION
SHAPING WHEN USING THE FENCE AS A GUIDE……………………6
SHAPING WITH COLLAR AND STARTING PIN………………………7
Position of Collars……………………………………7
Starting Pin………………………………………….8
LUBRICATION………………………………………………..8
REPLACING SPINDLE CARTRIDGE………………………………….8
AUTHORIZED PARTS DISTRIBUTORS LIST……………………………9
ROCKWELL GUARANTEE…………………………………………10
ACCESSORIES…………………………………………….10,11
EXPLODED VIEW DRAWINGS AND PARTS LIST………………..12,13,14,15
