JET-Asian JWS-34L Transpower Single Spindle Shaper Operator’s & Parts Manual

Id: 0399

$19.50

0 out of 5

99 in stock




Click Here to Pay by Check/Money Order
Print Page

Product Description


Number of Pages: 28

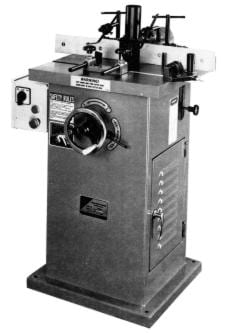

This is a reproduction, not a photocopy, of an original JET JWS-34 Single Spindle Wood Shaper Instructions and Parts Manual. This manual contains general safety instructions, operation instructions, assembly instructions, adjustments, maintenance, lubrication, and a complete set of exploded view diagrams of the parts with description. Please read index below.

This was also sold as the Transpower model HP 500 HD.

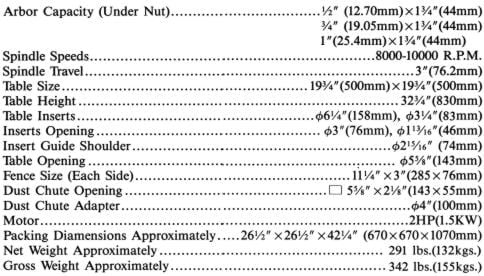

Specifications

Index

Specifications……………………………..2
Approximate Dimensions………………………2
Features Of Your Shaper……………………..3
Important Safety Instructions………………..4
Safety Rules For All Tools…………………..4
Additional Safety Rules For The Wood Shapers…..5
Unpacking And Cleanup……………………….6
Installation Requirements……………………7
Installation And Levelling…………………..7
Grounding Information And Power Connections……7
Electrical Controls…………………………7
Adjustment And Operating Your Shaper………….8
Speed Change And Belt Adjustment……………..8
Arbor Installation And Replacement……………8
Shaper Cutter Installation………………….10
Spindle Vertical Travel Adjustment…………..11
Table Inserts……………………………..11
Assembling And Installing Shaper Fence……….11
Operating Controls For The Fence…………….12
Work Hold-Down Guides Adjustment…………….12
Operation…………………………………13
Shaping When Using The Fence As A Guide………13
Shaping With Collars And Starting Pin………..14
Position Of Collars………………………..14
Starting Pin………………………………15
Lubrication Guide Of Your Shaper…………….16
Problem Solver…………………………….17
Parts Lists For Spindle Assembly…………….20
Parts Lists For Fence Assembly………………22
Parts Lists For Base……………………….23
Connection Diagrams………………………..26
Parts Lists For Electric Controls……………27



Overview:

I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear.
