Asian JET JJ-8CS Geetech CT-200 8″ Wood Jointer Operator’s & Parts Manual

Description



Number of Pages: 21

This is a reproduction, not a photocopy, of an original JET/Asian JJ-8CS 8″ Wood Jointer Instructions and Parts Manual. This manual contains information on lubrication, maintenance, adjustments, operations, and controls. It also contains exploded view diagrams of all the parts for the machine. Please read contents below.



This model was also sold as a

Geetech CT-200

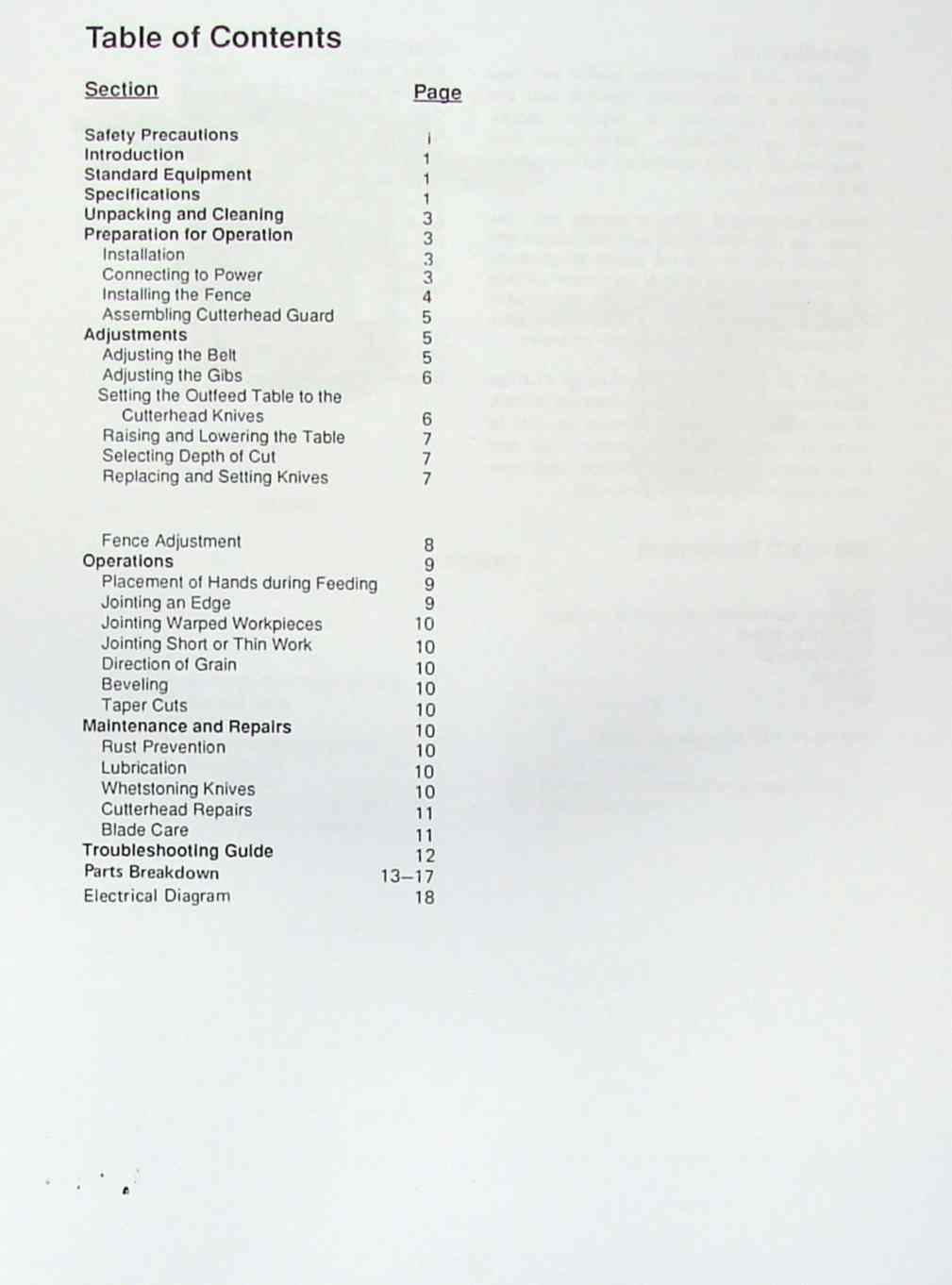

Contents:

Safety Precautions......................i
Introduction............................1
Standard Equipment......................1
Specifications..........................1
Unpacking and Cleaning..................3
Preparation for Operation...............3
Installation............................3
Connecting to Power.....................3
Installing the Fence....................4
Assembling Cutterhead Guard.............5
Adjustments.............................5
Adjusting the Belt......................5
Adjusting the Gibs......................6
Setting the Outfeed Table to the
Cutterhead Knives.......................6
Raising and Lowering the Table..........7
Selecting Depth of Cut..................7
Replacing and Setting Knives............7
Fence Adjustment........................8
Operations..............................9
Placement of Hands during Feeding.......9
Jointing an Edge........................9
Jointing Warped Workpieces.............10
Jointing Short or Thin Work............10
Direction of Grain.....................10
Beveling...............................10
Taper Cuts.............................10
Maintenance and Repairs................10
Rust Prevention........................10
Lubrication............................10
Whetstoning Knives.....................10
Cutterhead Repairs.....................11
Blade Care.............................11
Troubleshooting Guide..................12
Parts Breakdown.....................13-17
Electrical Diagram.....................18
