How To Grind Carbide Tipped Bits & Cutters with Green Wheels Grit Book

Id: 0904

$17.50

99 in stock




Click Here to Pay by Check/Money Order
Print Page

Description

Number of Pages: 46 printed 5.5″ x 8.5″

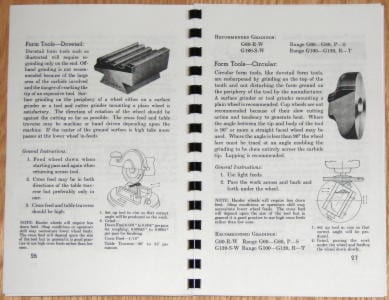

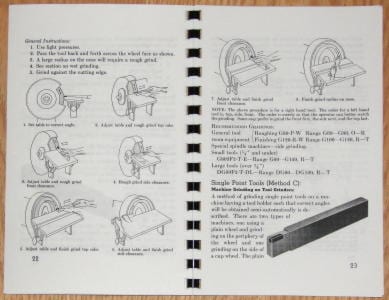

This is a reproduction, not a photocopy, of an original Grinding Cemented Carbides with “Green-Grit” Wheels book. This manual shows the set up for different types of cutters and bits. The same set ups would work for diamond wheels.

Please read the contents below the pictures.

Contents:

Acknowledgment…………………………………………..4
Cemented Carbides and their characteristics…………………5
Grades of Cemented Carbides—Carboloy, Firthite, Vascoloy-Ramet..6
The grinding problem……………………………………..7
Carborundum Brand Silicon Carbide “Green-Grit” Grinding Wheels..8
Grit, grade and bond of grinding wheels……………………10
Factors affecting grinding wheel action on Cemented Carbides…11
Work to be ground……………………………………….11
Wheel………………………………………………….12
Coolants……………………………………………….13
Machine………………………………………………..13
Operator……………………………………………….14
How to grind Cemented Carbide Tools……………………….14
Peripheral vs. side grinding……………………………..15
Wet vs. dry grinding…………………………………….16
General grinding recommendations………………………….17
Classes of tools………………………………………..18
Single point tools………………………………………18
Grinding chips breakers………………………………….25
Form Tools—Dovetail……………………………………..26
Form Tools—Circular……………………………………..27
Form Tools—Straight shank………………………………..28
Milling Cutters—Solid tooth………………………………30
Milling Cutters—Inserted tooth……………………………33
Special tools—Spot facers, counterbores, end mills, reamers….34
Saws…………………………………………………..35
Milled and Brazed tools………………………………….37
Lapping………………………………………………..37
Diamond dust……………………………………………39
Carborundum Brand Finishing Compound………………………40
Improving grinding wheel action and economy………………..41
Truing and dressing the grinding wheel…………………….42
Grind the tools frequently……………………………….42
Grinding wheel wear and cost,…………………………….43
Honing or stoning……………………………………….44
Sizes of Carborundum Brand wheels carried suitable for
grinding cemented carbides……………………………….46
“Green-Grit” Wheel Gradings………………………………46
