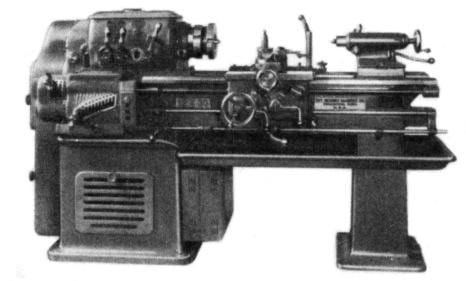

HENDEY Geared & Coned Head Lathe Operators’ Handbook Manual

$49.50

SKU: 0356 Categories: , , , Tag:

Description

Number of Pages: 120

This is a reproduction, not a photocopy, of an original Operators’ Handbook for Hendey Lathes. This manual has been digitally cleaned and ENLARGED for easier reading and understanding of the charts without using a magnifying glass (I’m not kidding look at picture below). This is a LARGE 88 page manual that contains a lot of detail information. If you are fortunate enough to own one of these lathes, this is a must have for you. This manual covers a lot of the unusual attachments that this lathe offered. There is a large section on threading. It has copies of all standard threading index plates showing normal ranges of threads and feeds. This manual covers the lathe from A-Z in great detail, and that is why it is 88 pages. This is an very interesting manual to own if you collect old manuals.









Some of the Unusual Attachments



Original (Front) Reproduction (Back) Notice that you can actually read mine.



Overview:

I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear.
