Cincinnati Semi-High Speed Vertical & High Speed Milling Machine Attachments Service & Parts Manual

Id: 1158

$25.00

100 in stock




Click Here to Pay by Check/Money Order
Print Page

Description

Number of Pages: 11



This is a reproduction, not a photocopy, of an original Cincinnati Semi-High Speed Vertical & High Speed Milling Machine Attachments Service & Parts Manual for all Cincinnati attachments whose serial number begins with “AF” or “AU”. This manual gives specifications of each type and size of Cincinnati semi-high speed vertical and high speed milling attachments in detail. The Cincinnati manual contains information on how to properly lubricate and install these milling attachments. This manual contains step-by-step instructions on how to dismantle various parts of these milling attachments, including the spindle. The manual covers adjustments, and contains a complete set of cross-sectional view diagrams of all the parts with descriptions for these Cincinnati semi-high speed vertical and high speed milling attachments.



This manual covers Cincinnati attachments and accessories whose serial number begins with “AF” or “AU”.



Cincinnati Vertical Milling Attachment

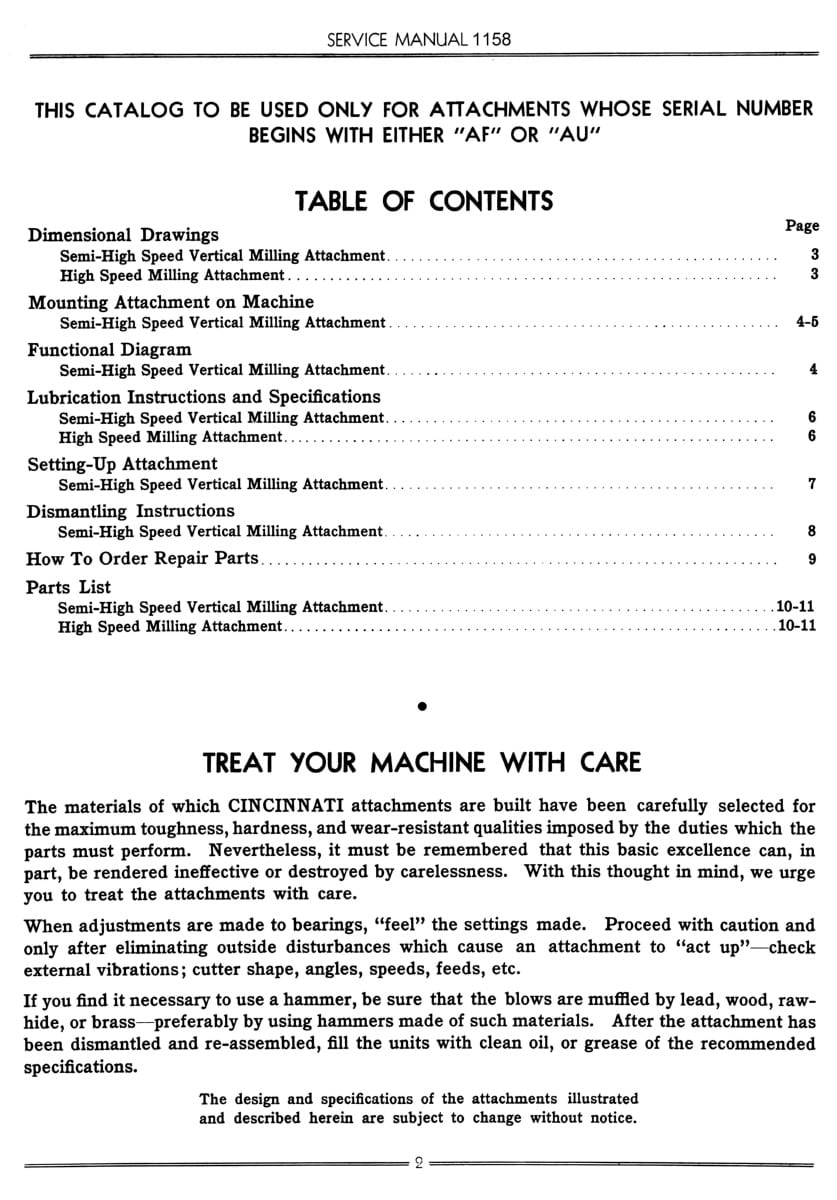

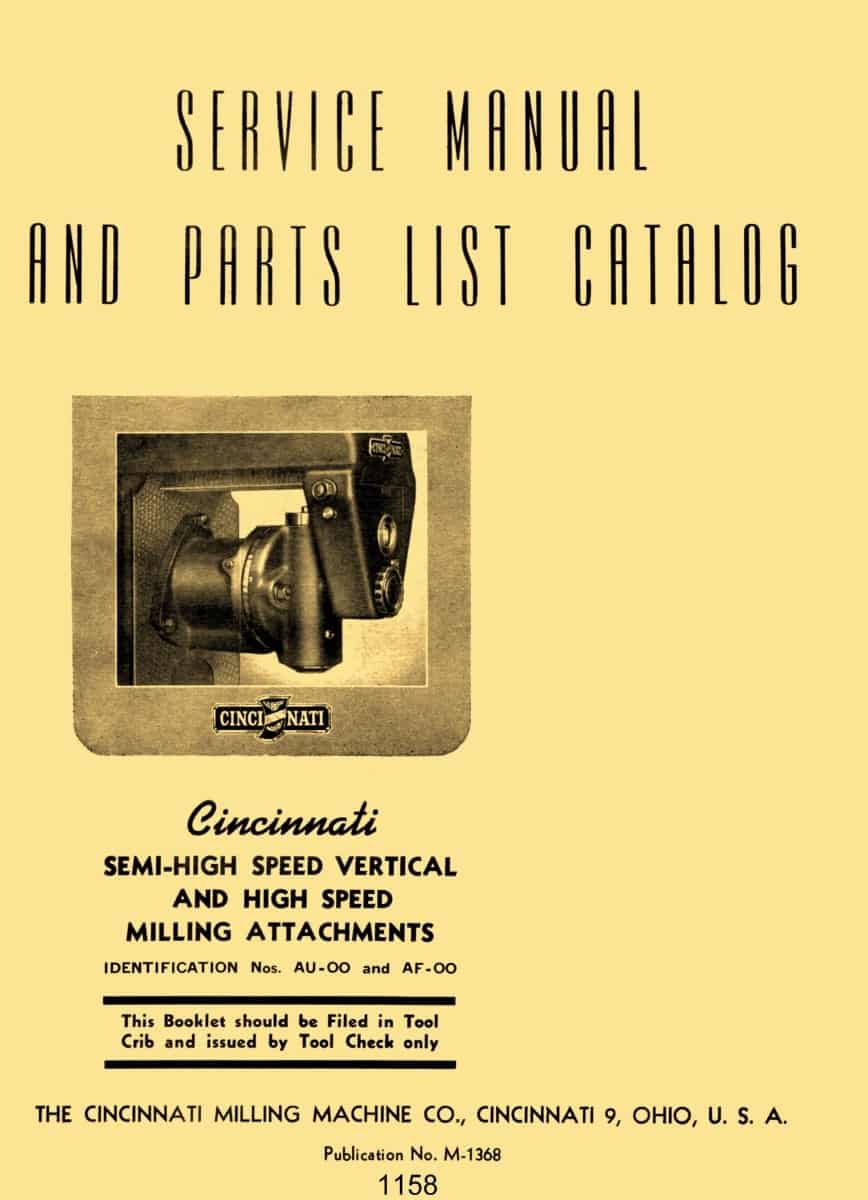

cincinnativerticalmillingattachment1158          cincinnativerticalmillingattachment1158a

Overview:

I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear. These can be much more useful than a low resolution pdf download.
