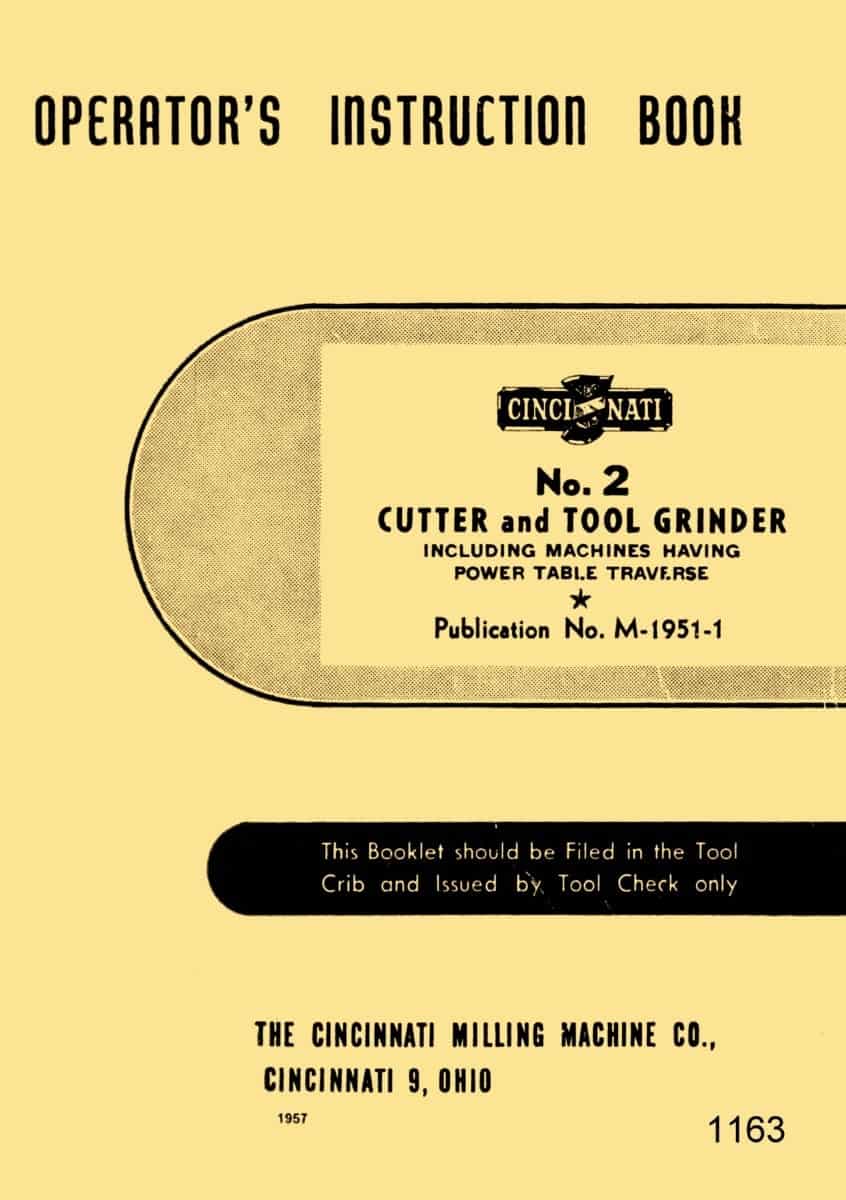

Cincinnati No. 2 Cutter & Tool Grinder Model LL Operator’s Instruction Manual

Id: 1163

$95.00

100 in stock




Click Here to Pay by Check/Money Order
Print Page

Description

Number of Pages: 140

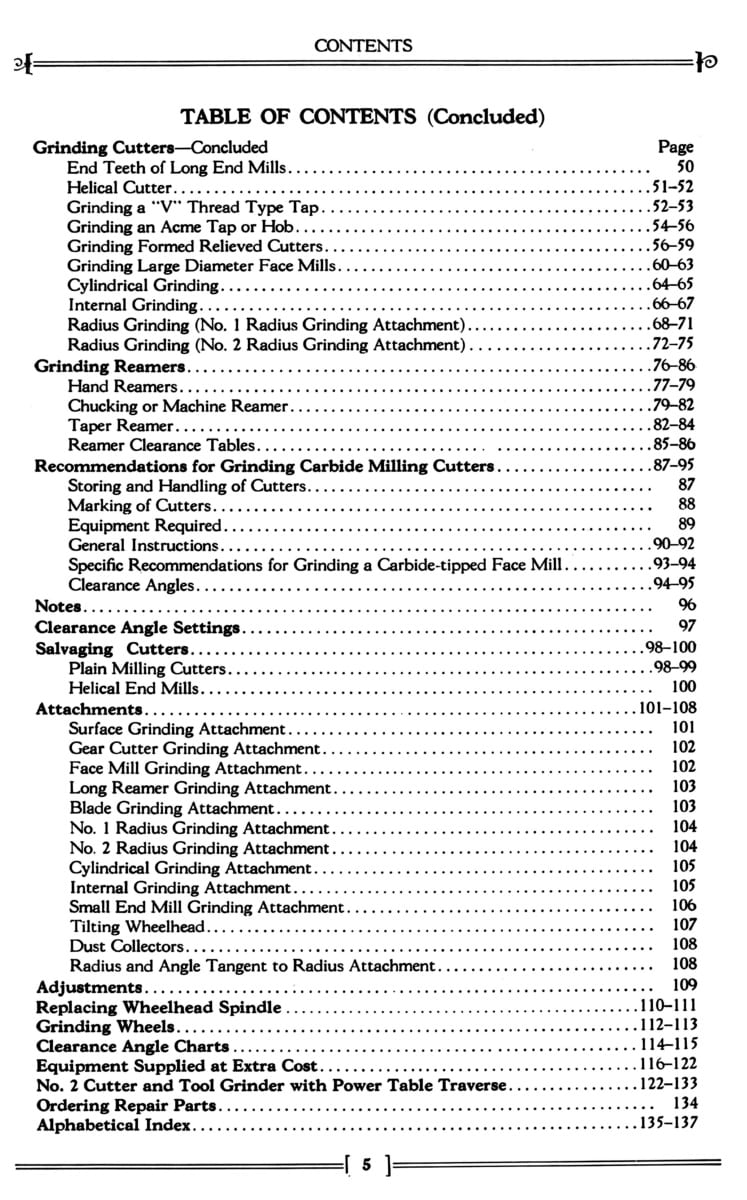

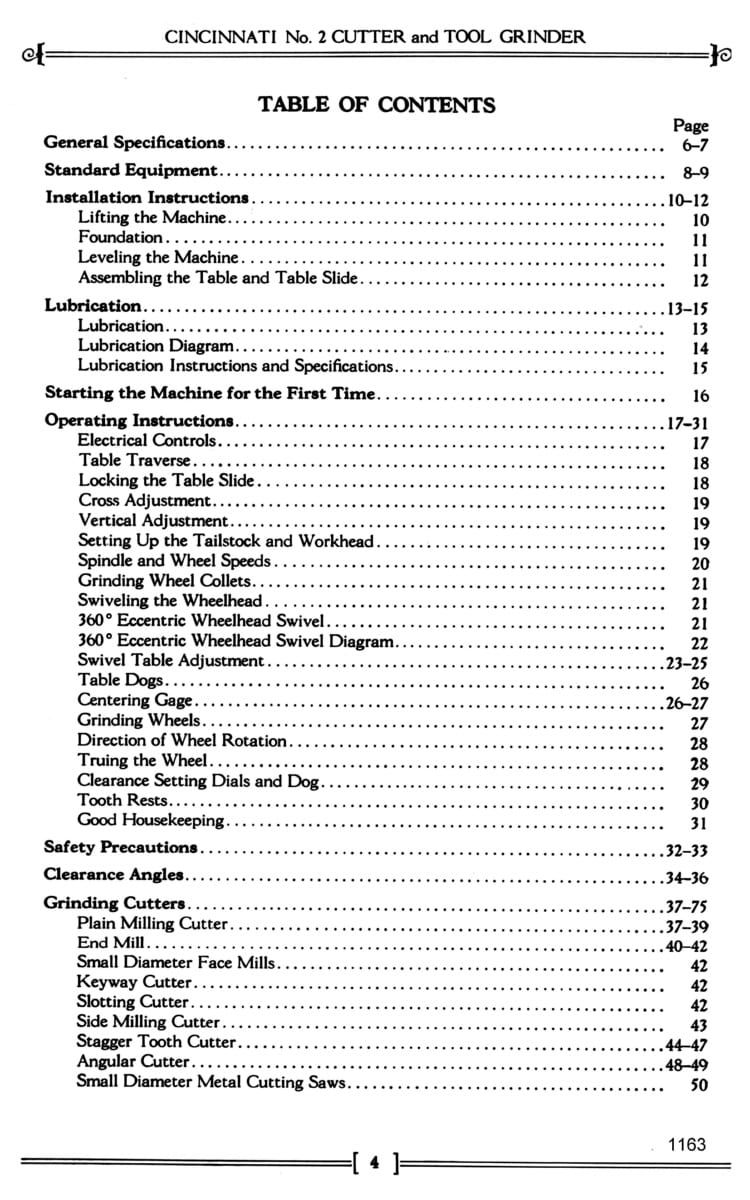

This is a reproduction, not a photocopy, of an original Cincinnati No.2 Cutter & Tool Grinder Model LL Operator’s Instruction Manual for grinders whose serial number begins with “1D”. This Cincinnati manual contains machine specifications and details, as well as information on how to properly lubricate and install the No. 2 tool grinders. It describes how to make adjustments and trim the grinder. The manual covers instructions on how to properly operate the grinder, and it gives lots of details on how to set up for various grinding operations. Please see the contents pictured above.



We also have the Service and Parts Manual for the Cincinnati No. 2 Tool Grinders here:

Cincinnati No. 2 Cutter & Tool Grinder Model LL Service & Parts Manual



Cincinnati No. 2 Tool Grinder

These models have a cooling fan in the back.

    cincinnati2toolgrinder1164acincinnati2toolgrinder1164b



Overview:

I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear. These can be much more useful than a low resolution pdf download.
