Cincinnati 8″-10″-12″-14″ Universal Dividing Heads Operator’s Instruction Manual

Id: 1161

$95.00

100 in stock




Click Here to Pay by Check/Money Order
Print Page

Description

Number of Pages: 119

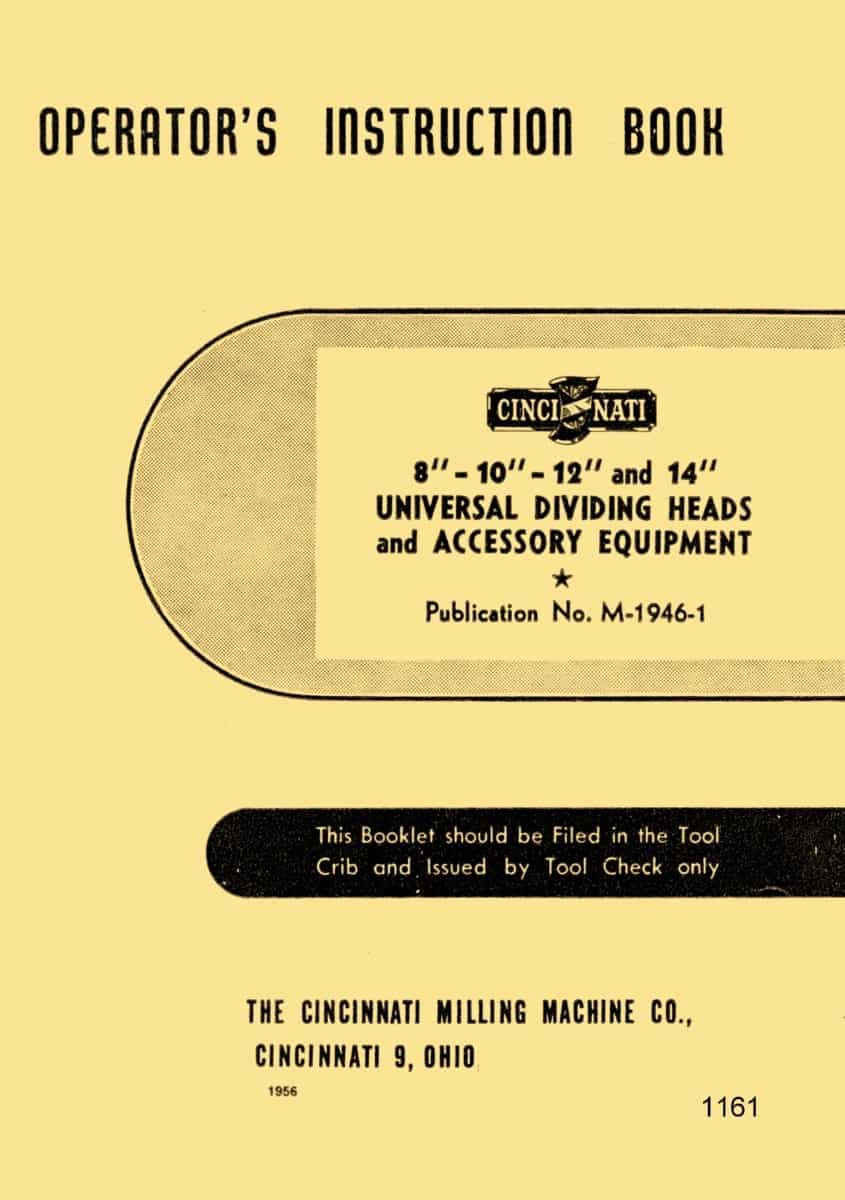

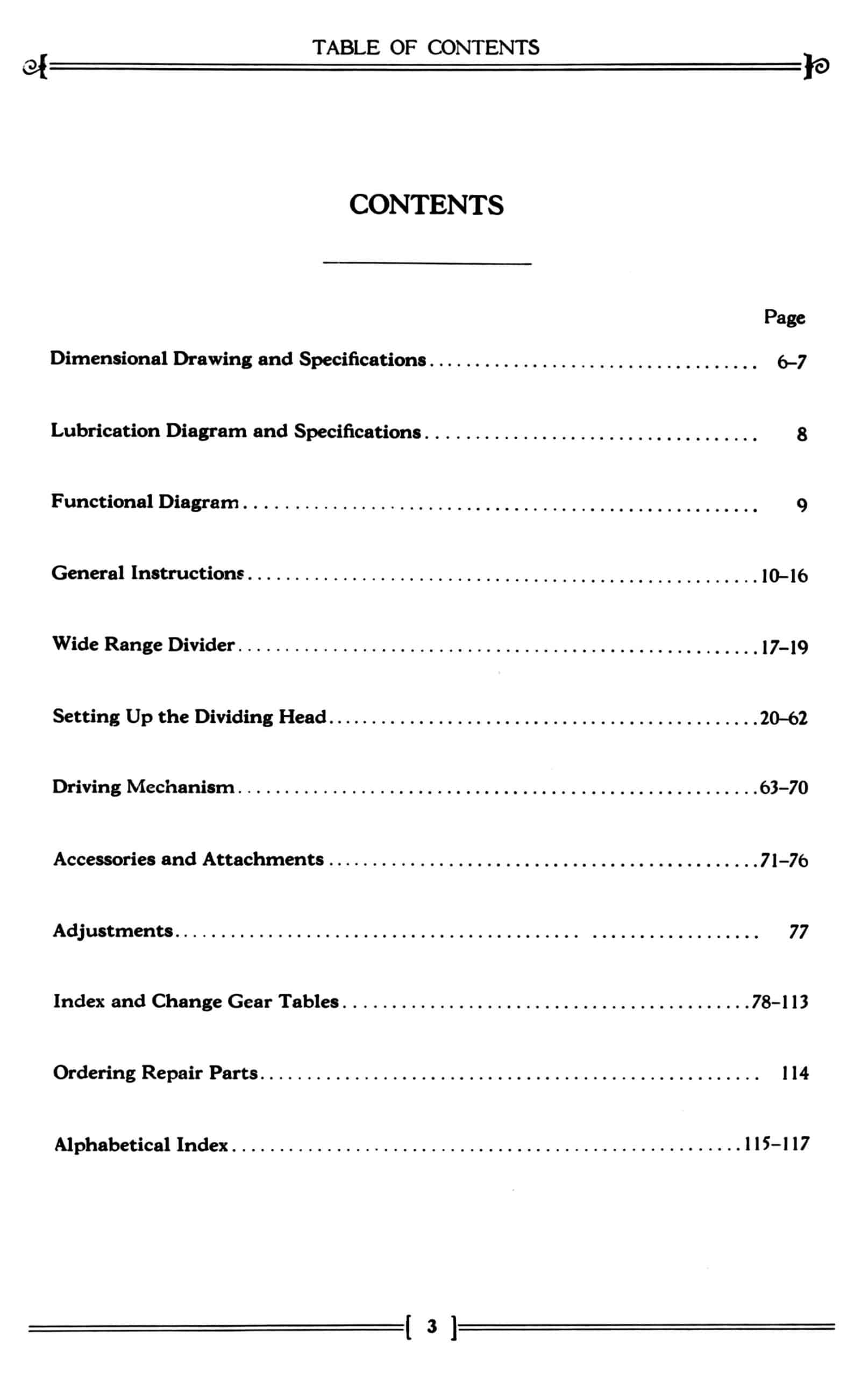

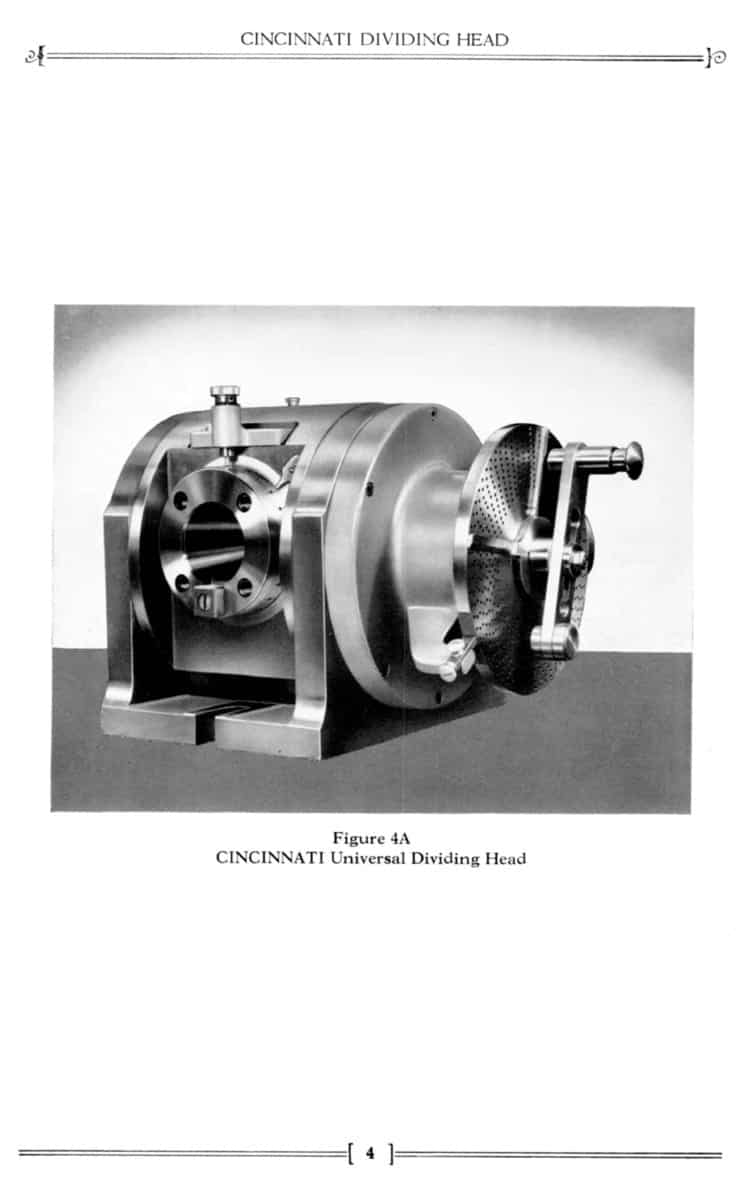

This is a reproduction, not a photocopy, of an original Cincinnati 8″-10″-12″-14″ Universal Dividing Heads Operator’s Instruction Manual. This manual gives specifications of each type of Cincinnati dividing head in detail. The Cincinnati manual contains information on how to properly lubricate and install the dividing head. This manual contains operating instructions and formulas for calculating angles. It also covers the wide range divider, which enables you to obtain divisions from 2 up to 400,000. The manual explains how to set the dividing head to mill spur gears, straight tooth bevel gears, helical gears, worm gears, and more. The dividing head manual contains information on the driving mechanisms for both open and closed types, and different accessories and attachments. It also contains index tables for these Cincinnati universal dividing heads.



We have the Service and Parts manual for these Dividing Heads here:

Cincinnati 10″-12″-14″ Universal Dividing Heads, Accessories, and Indexing Attachments Service & Parts Manual



Cincinnati Dividing Head

cincinnatidividinghead1161

Overview:

I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear. These can be much more useful than a low resolution pdf download.
