Cincinnati 10″-12″-14″ Universal Dividing Heads, Accessories, and Indexing Attachments Service & Parts Manual

Id: 1160

$50.00

100 in stock




Click Here to Pay by Check/Money Order
Print Page

Description

Number of Pages: 39

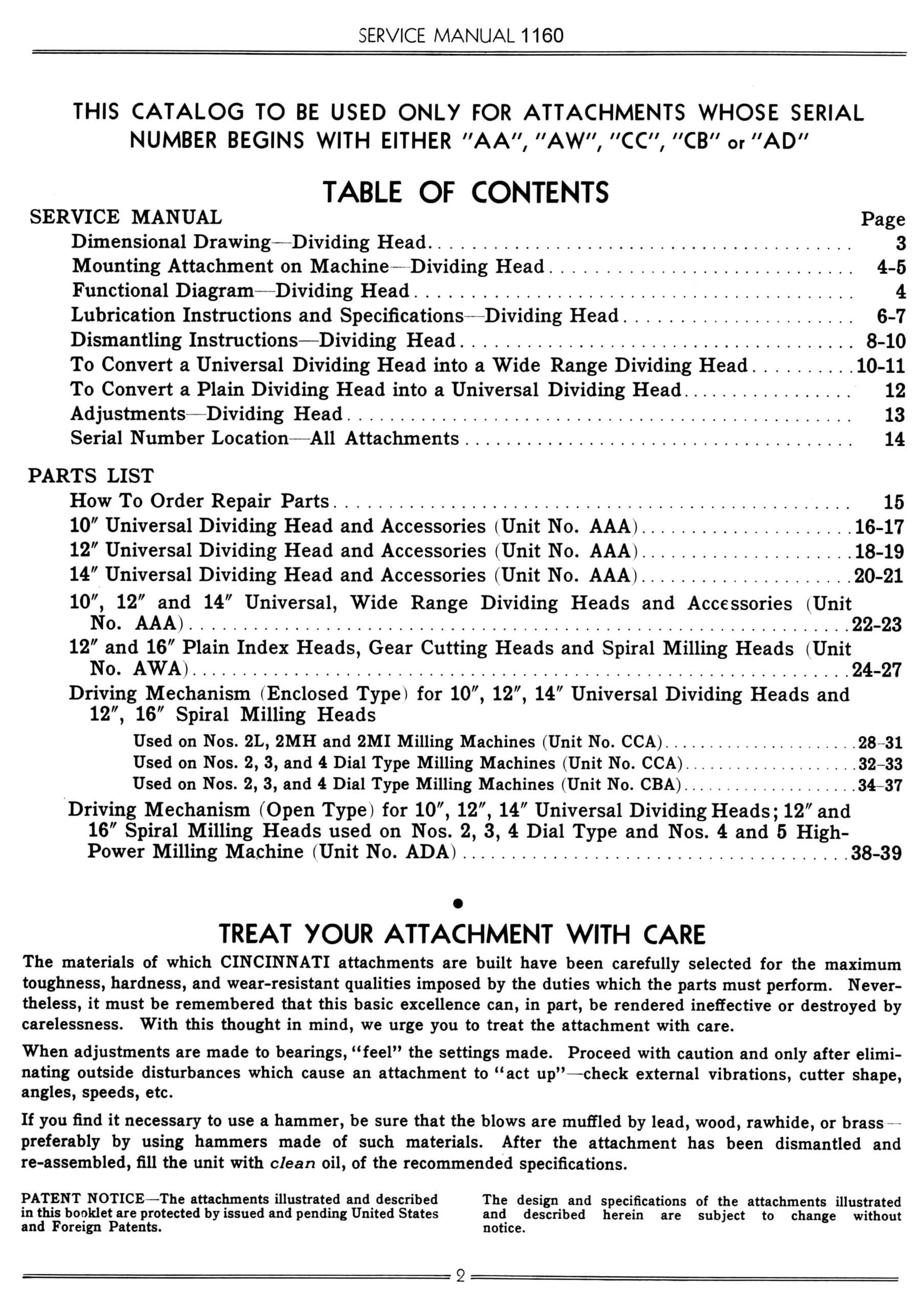

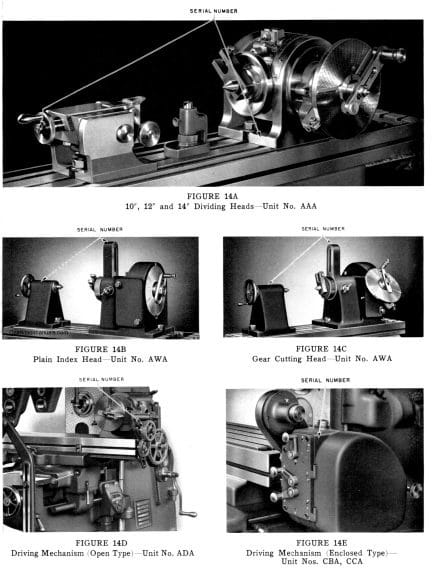

This is a reproduction, not a photocopy, of an original Cincinnati 10″-12″-14″ Universal Dividing Heads and Accessories, Indexing Attachments Service & Parts Manual. This manual gives specifications of each type of Cincinnati dividing head in detail. The Cincinnati manual contains information on how to properly lubricate and install the dividing head. This manual contains step-by-step instructions on how to dismantle various parts of these dividing heads. It also instructions on how to convert a Cincinnati universal dividing head to a wide range dividing head, and how to convert a plain dividing head into an universal dividing head. The manual covers adjustments, and contains a complete set of cross-sectional view diagrams of all the parts with descriptions for these Cincinnati dividing heads and accessories. This manual does cover the different driving mechanism as well.



We have the Operator’s Instruction Manual for these Dividing Heads here:

Cincinnati 8″-10″-12″-14″ Universal Dividing Heads Operator’s Instruction Manual



This manual covers Cincinnati attachments and accessories whose serial number begins with either “AA”, “AW”, “CC”, “CB” or “AD”.



Cincinnati Dividing Head

cincinnatidividingheadmanual1160
