Description
Number of Pages: 19
This is a reproduction, not a photocopy, of an original Caser FR6/40 Radial Arm Drill Parts Manual. This manual contains cross sectional view diagrams of the parts for this radial arm drill. It only contains the parts numbers without descriptions.
General Machine Description:

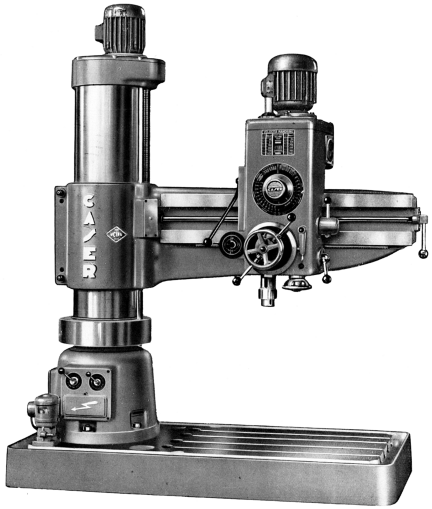

CASER FR6/40 Radial Arm Drill
12″ Column
12″ Boring Depth
48″ Throat
14-2000 RPM
Feed 0.002-0.012
Base 80″ x 40″
Stand 20″ x 30″ x 20″
Overview:
I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear.
