Here is an image from a reader that nicely rebuilt and restored this Atlas 10 inch metal lathe model V42 with serial number 05140. This is a older version of the Atlas 10 inch lathe, because it has babbit bronze bushings and doesn’t have a pull knob to engage the power cross feed on the apron. We actually used to have a similar model in our shop.
The reader said that he had our parts and instructions manual for this lathe, which we have here:
For Atlas timken bearing lathes:
with horizontal countershaft-Cat. Nos.: TH36, TH42, TH48, TH54
with vertical countershaft-Cat. Nos.: TV36, TV42, TV48, TV54
For Atlas babbitt bearing lathes:
with horizontal countershaft-Cat. Nos.: H36, H42, H48, H54
with vertical countershaft-Cat. Nos.: V36, V42, V48, V54
For Atlas quick-change lathes:
Cat. Nos.: QC42 and QC54
This manual does cover the basics. It explains lubrication, and labels the different controls of the lathe. The reader said that he wanted more information about the operation of the lathe. He’s not the only person that has asked us about this, and that is why we carry the Manual of Lathe Operations and Machinist Tables books, which is full of almost everything you would want to know to get started, plus it contains information on the gear and machinist tables for threading.
The problem with these books is that Atlas and Craftsman sold thousands of these over many decades. They made changes to the books as they made changes to the lathes, but they never stated on the cover or in the book which manual covers which vintage and size of lathe. We’ve collected over 25 of these books and have done the research for you, and we have the one that covers this lathe at the link below:
Email us your details with pictures, and we’ll put together the best information we can find. Plus, we can get other readers’ input to help you learn more.
Also, feel free to email us if you want us to share your machine on our site.
Email your information to: info@ozarkwoodworker.com
Here are some images of a machine we were able to identify as a Homecraft- Delta 16″ Scroll Saw model 40-110. This scroll saw has Homecraft, Delta Manufacturing Division and Rockwell Manufacturing on the tag. These scroll saws were made and sold during in the late 40’s through the 50’s. These cast iron scroll saws were built to last and we’ve see lots of them still in use.
Below is a page from a 1953 Delta Homecraft catalog. This scroll saw sold for $43.50 that year, which is equivalent to $379.54 today.
We have two manuals that would cover and be helpful with this scroll saw. We have the owner’s manual with the operating instructions and parts diagrams for the Homecraft 40-110 scroll saw here:
We also have a called “Getting the Most Out of Your Band Saw and Scroll Saw.” This is part of a whole of books that Delta did on different woodworking machines that I really like. They have a lot of tips and tricks. They made a series of 6 different books to cover different types of machines.
The manual for this scroll is actually pretty informative on setting up the blades. You can use quite a variety inserts you can use depending on the type of work you are doing. You can use saber blades, jewelers blades, files, etc… The manual explains what adjustments and maintenance to check as well.
Email us your details with pictures, and we’ll put together the best information we can find. Plus, we can get other readers’ input to help you learn more.
Also, feel free to email us if you want us to share your machine on our site.
Email your information to: info@ozarkwoodworker.com
Received this image of a South Bend heavy metal lathe the other day. It was made in the 1950’s, and has a 6 foot bed catalog number CL-195-C. These South Bend lathes are beautiful machines They were built like tanks. As long as you install them properly, keep them clean, keep them trim, and oil the lathe properly they should last forever.
We have a few manuals that cover this lathe. We have a parts manuals with exploded view diagrams that shows the main parts of the lathe here:
These are very helpful when trying to take the the lathes apart or put them back together. Also, locating parts can become easier, but most parts have the part number casted into them.
We also have a manual that shows explosive view parts break down diagrams of the accessories for these larger lathes like the turrets, collets, steady rest, etc… here:
A lot of people didn’t realize the the threading dial was an accessory. It seems like a common part today, but it is actually possible to do threading well without the dial and the version of How to Run A Lathe explains this procedure.
South Bend basically made one book for operations that covered all their lathes, but it is important to find the one that covers the correct vintage, because they made lots of changes to these lathes over the years. They keep the book with the same title “How to Run a Lathe” all through out the years, with different editions. The edition we have here covers this style of lathe, and we’ve enlarged it so it is easier to read:
Email us your details with pictures, and we’ll put together the best information we can find. Plus, we can get other readers’ input to help you learn more.
Also, feel free to email us if you want us to share your machine on our site.
Email your information to: info@ozarkwoodworker.com
We identified this Nardini MS-1440 E Metal Lathe after receiving some pictures from a gentleman that said his Nardini lathe had an original Clausing label on it. This was the first Nardini metal lathe we had seen with such a label. We knew Clausing became a reseller of foreign machines, like the Colchester lathes.We see lots of machines sold under different names and labels. JET Tools sold a 1550 that was similar to a Clausing.
The Nardini 14×40 lathes appear to be the most popular size that are still being used today. They are well built machines manufactured in Brazil as you can see by their flag on the picture below. Every owner I’ve talked to about them has always enjoyed the build and quality. REM sales used to import these lathes and had parts available, but they are no longer supporting them. Feel free to comment below, if you know of a parts supplier. We receive request every month for parts for Nardini.
Sometimes it is difficult for people to figure out which Nardini lathe manual goes with their lathe, because they made a lot of variations in sizes and options that are covered in each manual, and it isn’t possible to label each one in the title. The manual below is the one for this lathe, but it can be hard to tell from the title alone.
The best way to narrow it down is look for the letters distinguishing the series. We’ve added pictures and diagrams of in the descriptions of the manuals to compare them to your lathe. The most important thing to do is compare the knob and handle configurations on the headstock. If you are ever unsure as to which Nardini manual matches your lathe, feel free to email us pictures.
Email us your details with pictures, and we’ll put together the best information we can find. Plus, we can get other readers’ input to help you learn more.
Also, feel free to email us if you want us to share your machine on our site.
Email your information to: info@ozarkwoodworker.com
Here is a old Rockwell-Delta 17″ floor model drill press that a reader sent us pictures of to find more information about. The owner said the Rockwell drill press was used in a production facility for some time. The gentleman he bought the drill press from was 67 and said he started operating it when he was 13. This Rockwell 17″ drill press has has serial number 79-794 which dates it to 1949. In 1950 this drill press sold for $180.50 to $196.00 depending on the options, which is equivalent to $1,745.60 to $1,895.50 today. In 1949, you couldn’t pick up a quality machine like this in a garage sale.
It appears that this particular Rockwell-Delta 17″ drill press has a slow speed attachment, which is the pulley installed right above the column, but there is pulley on the motor with only one position. I’m not sure if the motor pulley broke at some time or not, but this is not a typical or Rockwell Manufacturing configuration. Information on the slow speed attachment is not included in the main owner’s manual, but it was used to provide more speed options for drilling. I’m guessing someone may have broken the original motor pulley, and either had or found a slow speed attachment to get at at least some speeds out of the drill press.
How to Identify this Rockwell Drill Press
We have operator, owner’s, and parts manuals for many different Rockwell-Delta-Milwaukee drill presses here. These older Delta machines from this vintage usually don’t have model numbers on them, and lots of people have asked us how to identify them.
The simplest way to identify many of these older Delta machines is by the casted part number on the main part of the machine. These Rockwell-Delta 17″ drill presses have “DP-600″ casted into the head on the arm that supports the front pulley. This is the part number for the head casting. Here is a picture showing its location on another 17” drill press.
Manuals for this Rockwell 17″ Drill Press
We have a couple manuals that would be useful with this Rockwell-Delta 17″ drill press model. We have the original operator’s and parts manual for this drill press model here:
We also have another book that Delta published with additional information about drill press use and set ups. This book covers all the branches of drill press operation in the home workshop with over two hundred photographic illustrations and line drawings even for uses like sanding, shaping, mortising, etc…
It’s a really useful and interesting series of books that I recommend to anyone wanting to learn more about drill press use.
Below are some pages from a 1950 Delta Milwaukee catalog about this 17″ drill press. The catalog displays the different options and accessories that were available for this model. The drill press owners manual above covers a lot of the different variations between the bench and floor models.
Do you have one of these drills, or
do you have anything else you would like to add about it’s history or use?
Please add your comments below.
Submit Your Machine
Do you want to know more about your machine?
Email us your details with pictures, and we’ll put together the best information we can find. Plus, we can get other readers’ input to help you learn more.
Also, feel free to email us if you want us to share your machine on our site.
Email your information to: info@ozarkwoodworker.com
Received these pictures from a gentleman trying to verify which Walker Turner 24″ scroll saw he had in his shop. Walker Turner made a lot of changes to their 24″ scroll saw over time. Some of the difference are fairly subtle, and we have manuals for a few of them. The differences between the J781 and J782 are so subtle that we combined the two into the same manual to make it easier for everyone.
The main identifying difference between the J915 and the J781 or J782 is the fact that the air hose comes out of the arm (as you can see in the image below). While the air hose on the J781 and J782 comes out of the top of the head.

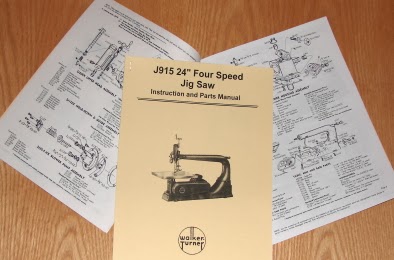

We have a manual for this Walker Turner Jig/Scroll saw here:
The Walker Turner J915 24″ Jig Saw without a stand or accessories sold for $63.50 in 1949, which is equivalent to $623.12 today. Here is a page on the J915 from a 1949 Walker Turner catalog.
Do you have one of these scroll saws, or
do you have anything else you would like to add about it’s history or use?
Please add your comments below.
Submit Your Machine
Do you want to know more about your machine?
Email us your details with pictures, and we’ll put together the best information we can find. Plus, we can get other readers’ input to help you learn more.
Also, feel free to email us if you want us to share your machine on our site.
Email your information to: info@ozarkwoodworker.com
Received these pictures of a Delta-Rockwell 11″ wood lathe on a nice heavy duty bench top stand. These were sold under the Homecraft division of Delta. They made a few different versions that look similar. The earlier models had a steel stand. This one has a cast iron stand and is a model 46-230. This lathe has a serial number of 85-7014, which dates it manufacturing to 1950.
We have a couple manuals that cover the 46-230 Rockwell 11″ wood lathe. We have the owner’s manual with operating instructions and parts diagrams here:
We actually combined the older and new versions of this lathe in one book. We also have “Getting the Most Out of Your Lathe” book that Delta published. It covers this lathe and shows a lot of tips and tricks for using and setting up your lathe for different cuts. This is one book of a 6 part series we have in stock. Here is the book on the lathe:
This lathe originally sold for $54.95 in 1950. Below is the page on the lathe from a 1950 Delta-Homecraft catalog. According to the inflation calculator this is equivalent to $532.50 today.
Do you have one of these lathes, or do you have anything else you would like to add about it’s history or use? Please add your comments below.
Submit Your Machine
Do you want to know more about your machine?
Email us your details with pictures, and we’ll put together the best information we can find. Plus, we can get other readers’ input to help you learn more.
Also, feel free to email us if you want us to share your machine on our site.
Email your information to: info@ozarkwoodworker.com
